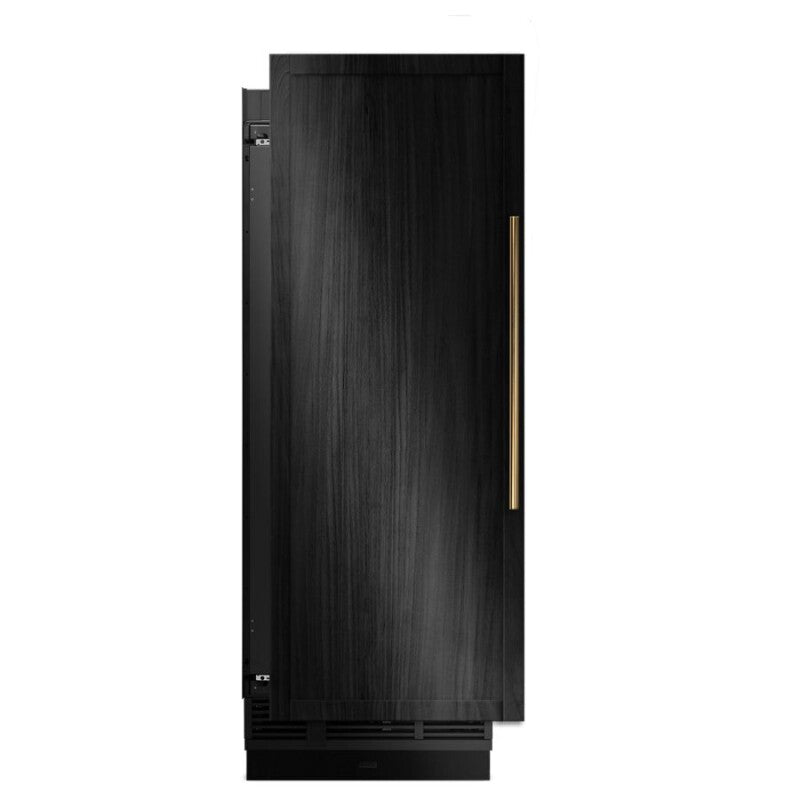

JennAir 30" Panel-Ready Built-In Column Refrigerator, Left Swing - Panel Ready (JBRFL30IGX)
SKU:
JBRFL30IGX
UPC: 883049438306
Regular price
$8,59900
Unit price
JennAir 30" Panel-Ready Built-In Column Refrigerator, Left Swing - Panel Ready (JBRFL30IGX) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
JennAir Curate: 1H Up to 15% Instant Savings
GET UP TO 15% OFF IN INSTANT SAVINGS
Ends: 2026-06-30
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Ecliptic Lighting
- ✔ ENERGY STAR Certified
- ✔ Hushed Acoustics
- ✔ Vacation Mode (app only)
- ✔ Sabbath Mode
- ✔ Star-K Certified
- ✔ Smart Integration
- ✔ On-Demand Experts
- ✔ United Dual Toe-Kick
- ✔ Down-Low Airflow
- ✔ Adaptable Installation
- ✔ Door Skins
- ✔ Independent Preserver
- ✔ Catwalk Shelf
- ✔ EveryDrop Filter
- ✔ Magnet-to-Metal Seal
- ✔ Daring Obsidian Interior
- ✔ Remote Access
- ✔ Solid Glass and Metal
- ✔ ENERGY STAR® Certified
- ✔ EveryDrop® Filter
- ✔ Endless Configurations
- ✔ Internal Water Dispenser
- ✔ Three-Zone Precision Cooling
- ✔ Customizable Storage Zones
JennAir 30" Panel-Ready Built-In Column Refrigerator, Left Sw...
Regular price
$8,59900
Unit price
SKU:
JBRFL30IGX
Regular price
$8,59900
Unit price
JennAir 30" Panel-Ready Built-In Column Refrigerator, Left Swing - Panel Ready (JBRFL30IGX) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features

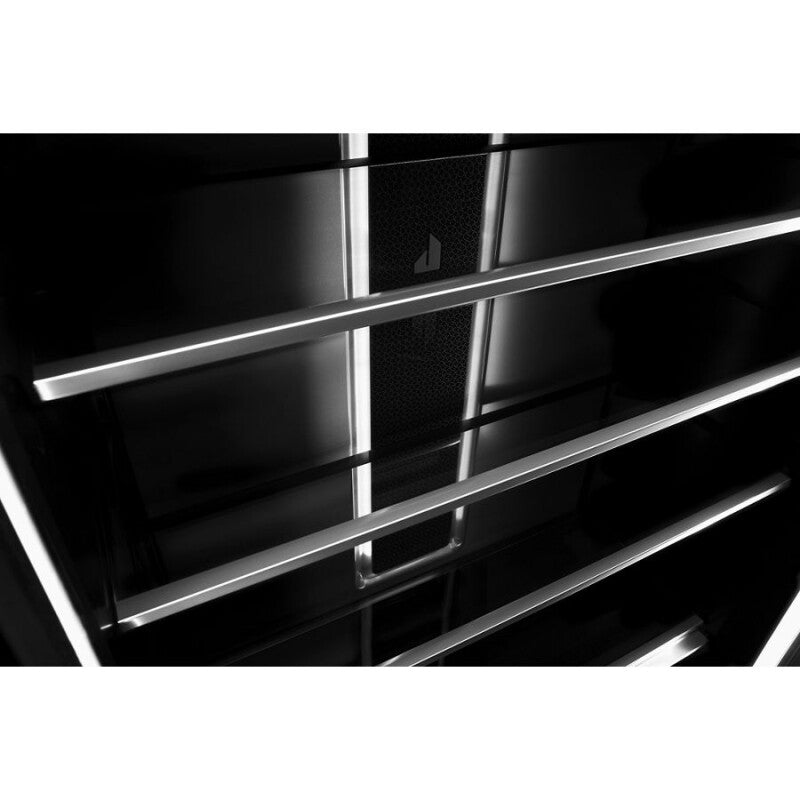

Ecliptic Lighting
Over 650 LED lights frame and fill your column, coming alive at the touch of the controls or when you open the door. The lights will pulse to indicate when zones are being adjusted.
Daring Obsidian Interior
Inspired by volcanic glass, this industry-exclusive dark finish draws attention with Inspired by volcanic glass, this industry-exclusive dark finish allows your fine food and produce to stand out, illuminated by Ecliptic Lighting.
Remote Access
Open door. Power outages. Filter changes. Connect to WiFi for real-time notifications and control your columns from anywhere. Tap and swipe on both iOS and Android devices.

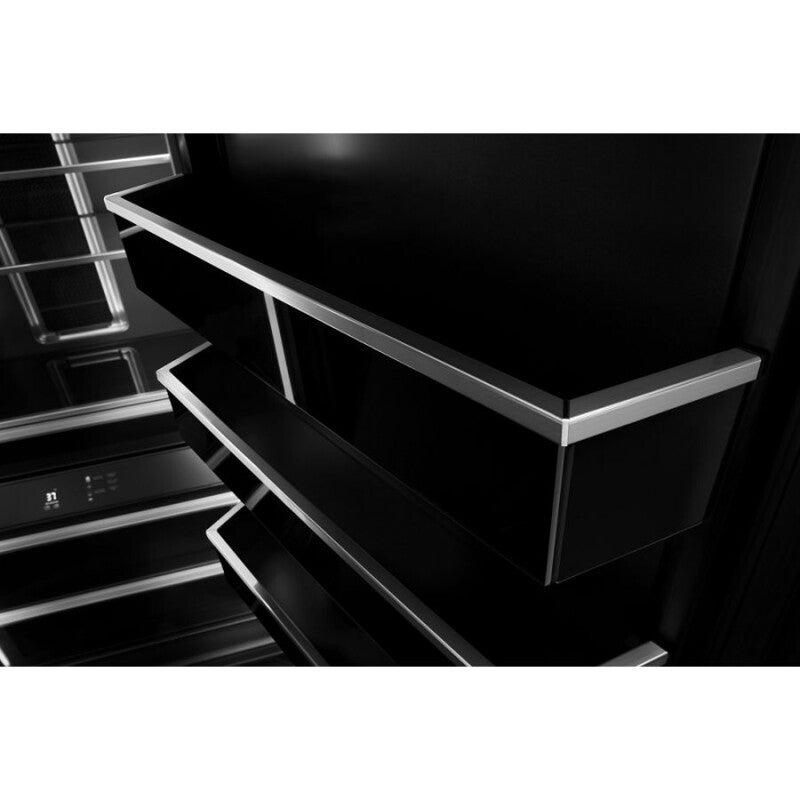

Solid Glass and Metal
Interior bins are made of naturally odor-resistant solid glass and framed in metal. The shelves also feature a coating near the edges to help prevent spillovers.
Three-Zone Precision Cooling
Each of the refrigerators three zones are monitored by a precision sensor that recalibrates in real time to keep humidity and temperature levels stable. The lace-motif air tower enhances the interior aesthetic while helping to distribute air evenly throughout.
ENERGY STAR Certified
JennAir columns are ENERGY STAR® certified.
Hushed Acoustics
Unheard of. Were decibel for decibel one of the quietest leading luxury built-in columns out there. Casting off abrupt start and stop cycles, our columns ditch swings in temperature and humidity, running unobtrusively in the background. Brilliance doesnt have to announce itself, it just is.
Vacation Mode (app only)
Vacation mode shifts the appliance into a low-power state, utilizing the insulation to keep the interior cool during periods of time when the refrigerator won't be opened. Easily set Vacation Mode even in the midst of your vacation via the app.**Appliance must be set to remote enable. WiFi & App required. Features subject to change. Details and privacy info at jennair.com/connect.
Sabbath Mode
Allows the door of the refrigerator or freezer to be opened or closed during the Sabbath or other religious holidays without directly turning on or off any lights, digital readouts, solenoids, fans, valves, icons, tones, alarms or the compressor.
Star-K Certified
This column is Star-K Certified for use on the Sabbath.
Smart Integration
Use voice commands with Amazon Alexa or the Google Assistant.
On-Demand Experts
Connect with the JennAir Epicenter through chat, email or call to tap into the brilliant minds of experts who know the life history of your appliance. Receive diagnostic codes on the app and theyll deploy service targeted to your columns best interest.
United Dual Toe-Kick
Install a dual-column toe kick for a unified appearance when combining two or more columns.
Down-Low Airflow
Venting at the base of our columns adds more usable space above and creates clean lines all around.
Adaptable Installation
New construction. Replacing built-ins. Upgrading from subpar models. Our columns smoothly adapt to installation site situations, thanks to multiple utility areas.
Door Skins
Get touchable with cuts of seductive, bespoke Italian leather. Stimulate the senses with hand-buffed stainless steel skins. Break free with custom panel options.
Independent Preserver
Abandon the frustration of mercury-laced filter disposal. The taste of your fruits and vegetables endure with our Independent Preserver, no matter where you want to store your produce. Where they go, it goes.
Catwalk Shelf
Add this half-depth shelf into your column so more items can own the runway. Or, replace a regular-width shelf to make way for your most statuesque bottles.
EveryDrop Filter
Reduces the most contaminants from your water. When it needs a replacement, the app notifies you so your drinks stay fresh.
Magnet-to-Metal Seal
Framed and lined with metal rather than plastic, powerful magnets in the gasket attach directly to the column, creating an airtight seal.
ENERGY STAR® Certified
JennAir® columns are ENERGY STAR® certified.
EveryDrop® Filter
Reduces the most contaminants from your water. When it needs a replacement, the app notifies you so your drinks stay fresh.
Endless Configurations
Choose from freezers or refrigerators, combine up to three in a row, add a wine column to your model and choose which way the door swings to build your combination from 4 different widths.
Internal Water Dispenser
A dual valve design effectively eliminates unwanted drips, even after filling a pitcher or glass of water.
Customizable Storage Zones
From the finest craft beer to the freshest farmer's market produce, each zone is designed with specific settings to meet your needs. Set the top zone, your shelves between 3342°F. Choose one of four presets, including Meat (32°F), Beverage (34°F), Deli (33°F) or Assorted (37°F) for your middle deli drawer. Set your two bottom drawers to one of two presets, Assorted (37°F) or Produce (39°F).
Product Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
AHAM Volumes And Shelf Area
| Refrigerator Volume (Cu Ft) | 17.00 |
| Total Volume (Cu Ft) | 17.0 |
Dimensions
| Capacity(FT3,cubic feet) | 17.00 |
| Depth Closed Excluding Handles(IN,inches) | 24.5000 |
| Depth Excluding Doors(IN,inches) | 23.6875 |
| Depth With Door Open 90 Degree(IN,inches) | 56.3750 |
| Height To Top Of Cabinet(IN,inches) | 84.0000 |
| Cabinet Width | 30 In |
| Capacity | 17 Cu. Ft. |
| Cutout Depth | 25 In |
| Cutout Height | 84 In |
| Cutout Width | 30 In |
| Depth | 24-1/2 In |
| Depth Closed Excluding Handles | 24-1/2 In |
| Depth Closed Including Handles | 27-1/8 In |
| Depth Excluding Doors | 23-86/125 In |
| Depth With Door Open 90 Degree | 56-3/8 In |
| Gross Weight | 541-17/25 Lbs |
| Height | 83-1/2 In |
| Height To Top Of Cabinet | 84 In |
| Net Weight | 501-17/25 Lbs |
| Total Refrigerator Capacity Volume | 17 Cu. Ft. |
| Width | 29-3/4 In |
| Width Doors Open 90 Degrees | 56-3/8 In |
| Refrigerator Capacity Volume | 17, 17 |
Details
| Counter Depth | Yes |
| Levelers | 2 Black |
| Design Expression | Panel-ready |
| Installation Option | Built-in |
| Wheels | 4-natural |
| Refrigerator Type | Refrigerator |

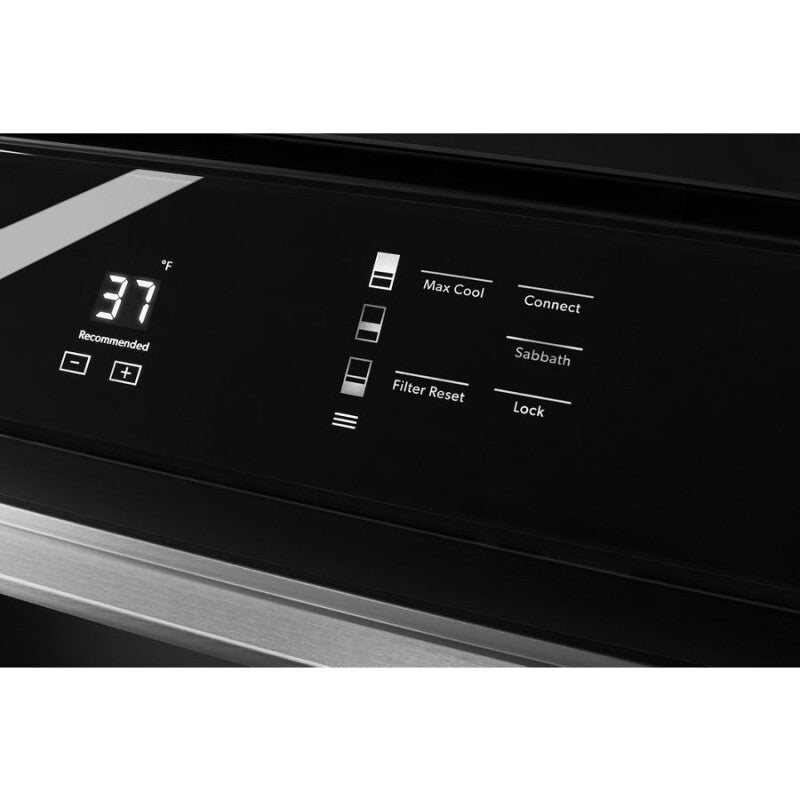

Controls
| Automatic Defrost | Yes |
| Control Location | Interior Up Front |
| Control Lockout | Yes |
| Control Type | Electronic Touch |
| Door Ajar/Open Alarm | Yes |
| Max Cool/Fast Cool | Yes |
| Sabbath Mode | Yes |
| Cooling Type | Single Evaporator |
| Temperature Range | 33f To 45f |
Refrigerator Compartment
| Number of Interior Shelves | 3 |
| Conventional Shelves | 3 Adjustable Full-Width Glass |
| Door Bins | 4 Adjustable Gallon |
Dispenser
| Dispenser Type | Interior Water Only |
Certifications
| Energy Star® Certified | ENERGY STAR® Qualified |
| Star K Certified | Yes |
| UL | Yes |
| CEE Tier Rating | Not Rated |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Electrical
| Amps | 15 |
| Hz | 60 |
Dimension
| Capacity (Cu Ft) | 17.00 |
| Depth Closed Excluding Handles | 24 1/2 |
| Depth Excluding Doors | 23 11/16 |
| Depth With Door Open 90 Degree | 56 3/8 |
| Height To Top Of Cabinet | 84 |
Other
| Capacity (Cu Ft) | 17.00 |
| Capacity (Cu Ft) | 17.00 |
| Capacity(FT3,cubic feet) | 17.00 |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 53.17 ft |
| Dimensional Weight | 660.95 lbs. |
| Total of Cubes | 53.17 ft |
| Total of Dimensional Weight | 660.95 lbs. |
Dimensions & Weight
| Width | 33 in. |
| Height | 87 in. |
| Length | 32 in. |
| Weight | 541.68 lbs. |
| Cabinet Width (in) | 30 |
| Carton Depth | 32 |
| Carton Height | 87 |
| Carton Width | 33 |
| Cutout Depth (in) | 25 |
| Cutout Height (in) | 84 |
| Cutout Width (in) | 30 |
| Depth Closed Excluding Handles | 24 1/2 |
| Depth Closed Including Handles | 27 1/8 |
| Depth Excluding Doors | 23 11/16 |
| Depth With Door Open 90 Degree | 56 3/8 |
| Gross Weight | 542 |
| Height To Top Of Cabinet | 84 |
| Net Weight | 501.7 |
| Gross Weight | 541.6800000000001 |
| Cabinet Width (IN,inches) | 30.0000 |
| Cutout Depth(IN,inches) | 25.0000 |
| Cutout Height(IN,inches) | 84.0000 |
| Cutout Width(IN,inches) | 30.0000 |
| Depth Closed Excluding Handles(IN,inches) | 24.5000 |
| Depth Closed Including Handles(IN,inches) | 27.1250 |
| Depth Excluding Doors(IN,inches) | 23.6875 |
| Depth With Door Open 90 Degree(IN,inches) | 56.3750 |
| Depth(IN,inches) | 24.5000 |
| Height To Top Of Cabinet(IN,inches) | 84.0000 |
| Net Weight(LB,pounds) | 502 |
| Carton Depth(IN,inches) | 32.0000 |
| Carton Height(IN,inches) | 87.0000 |
| Carton Width(IN,inches) | 33.0000 |
| Cutout Height Min(IN,inches) | 84.0000 |
| Gross Weight(LB,pounds) | 542 |
| carton depth | 32 |
| carton height | 87 |
| carton width | 33 |
| gross weight | 541.68 |
| net weight | 501.68 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 33 in. |
| Shipping Height | 87 in. |
| Shipping Length | 37 in. |
| Shipping Weight | 581.68 lbs. |
| Total of Shipping Weight | 581.68 lbs. |
| Source | Calculation |
Exterior Details
| Door Color | Panel Ready |
| Base Grille Color | Black |
| Cabinet Color | Black |
| Cabinet Finish | Smooth |
| Counter Depth | Yes |
| Door Finish | Textured |
| Door Opening Direction | Left |
| Door Style | Flat |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Hidden Hinge | Yes |
| Reversible Door | No |
Filter Details
| Air Filter Indicator/Reset | No |
| Produce Preserver | Yes |
| Water Filter Indicator/Reset | Yes |
| Water Filter Part Number | Edr2rxd1 |
Smart Compatibility
| Smart Appliance | Yes |
| Connectivity | Ios |
| Works With | App, Remote Access, Wifi |
Dispenser Details
| Dispenser Options | Filtered Water |
| Dispenser Pad Color | Black |
| Dispenser Type | Interior Water Only |
Refrigerator Details
| Number of Doors | 1 |
| Number of Interior Shelves | 3 |
| Pantry Drawer | No |
| Refrigerator Door Bins | 4 Adjustable Gallon |
| Supplementary Containers | Herb Tender™ Container |
| Temperature-Controlled Drawers | 3 Full Width |
| Conventional Shelves | 3 Adjustable Full-width Glass |
| Deli Drawer | 1 Flexi-slide Bin |
| Refrigerator Lighting | Strip And Tower Led Lighting |
| Liner Finish | Obsidian |
Certifications
California Prop 65
