BOSCH 800 Standard Custom Panel - Not Applicable (SHV78DM3N)
UPC: 825225975915
BOSCH 800 Standard Custom Panel - Not Applicable (SHV78DM3N) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
Bosch BMSM up to $4,000 Mail-In Rebate
Upgrade your kitchen and receive up to $4000 mail-in rebate
Ends: 2026-07-08
Bosch Up To $100 Delivery & Install Presidents' Day Rebate
SHOP LOCAL AND GET UP TO $100 TOWARDS DELIVERY OR INSTALL DURING THE BOSCH PRESIDENTS? DAY EVENT
Ends: 2026-02-25
Bosch $100 Dishwasher Mail In Rebate
Up to $100 Mail-In Rebate on Select Bosch Dishwashers
Ends: 2026-02-25
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ CrystalDry™:
- ✔ Extremely Quiet Operation at 42 dBA:
- ✔ PrecisionWash®:

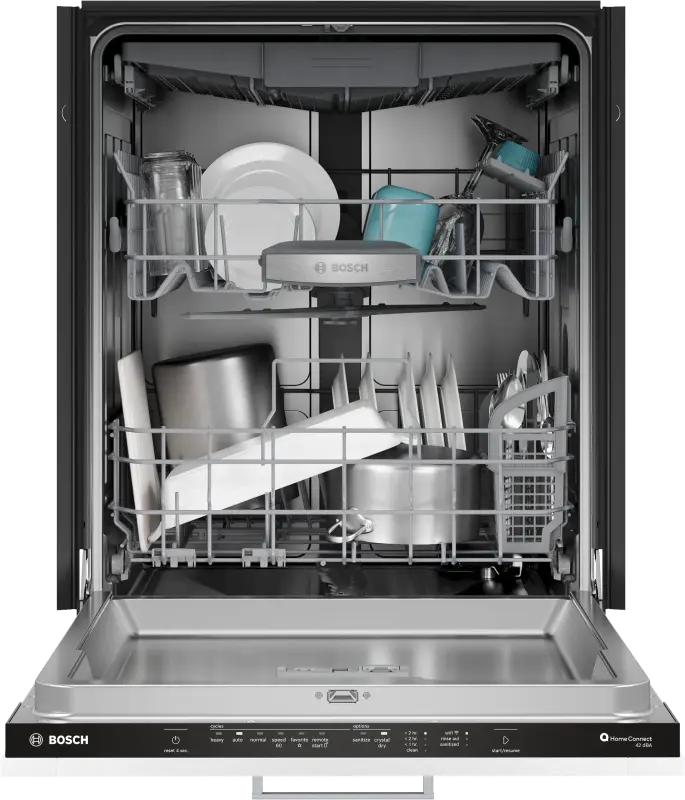

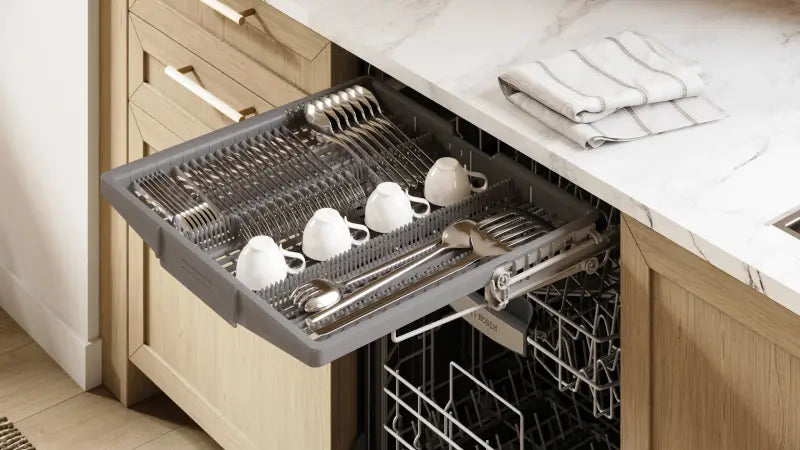

- ✔ Flexible 3rd Rack:

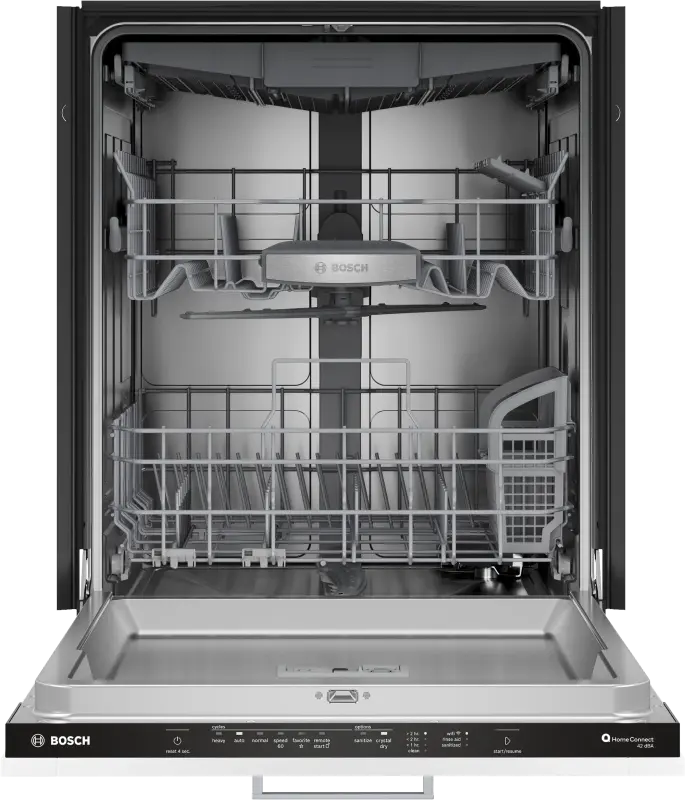

- ✔ Beautiful stainless steel interior:
Documents
BOSCH 800 Standard Custom Panel - Not Applicable (SHV78DM3N)
BOSCH 800 Standard Custom Panel - Not Applicable (SHV78DM3N) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Product Features
Product Specifications
General
| Design | Built-in |
| Installation Type | Full-integrated |
| Panel Ready | Not Possible |
| Number of Place Settings | 16 |
| Silence Level | 42 dB(A) re 1pW |

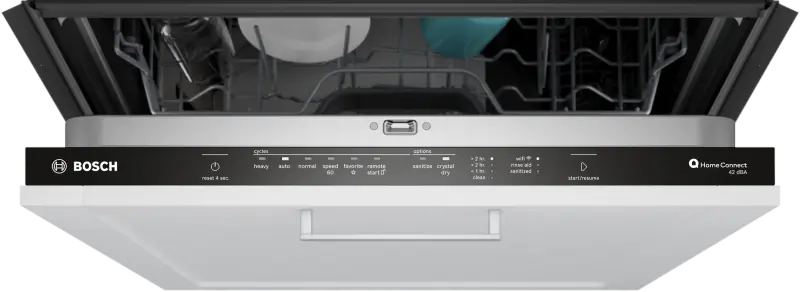

| List of Programs | Heavy, Auto, Normal, Favorite, Speed 60 |
| List of Programs | Heavy, Auto, Normal, Speed 60, Favorite |
| Color | Not Applicable |
| Options | Remote Start, Sanitize, Crystal Dry |

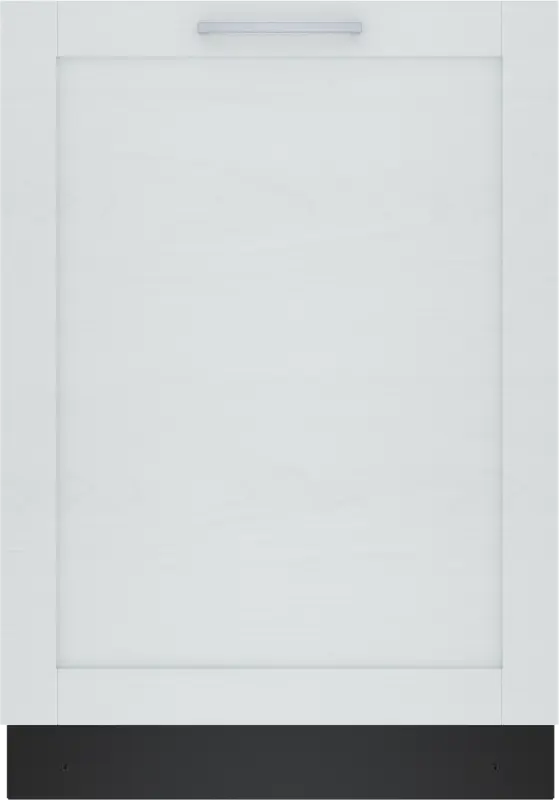

| Handle Design | Custom Panel |
| Toe Kick Color | Black |
| Tub Material | Stainless Steel |
| Programs & Options Exclusive to Home Connect | Hand Wash, Energy Save, Half Load, Machine Care, Rinse |
Size and Weight
| Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 1/16" |
| Required Cutout Size (HxWxD) (in) | 33 7/8'' x 24'' x 24'' |
| Net Weight | 92.000 lbs |
| Adjustable Feet | Yes, All Adjustable from Front |
| Length Outlet Hose (in) | 78 3/4'' |
| Power Cord Length | 67'' |
Comfort and Convenience
| Status Indicator | End of program audible |
| TimeLight® | no |
| InfoLight® | Red |
Cleaning Technology
| Drying System | CrystalDry®, PureDry® |
| NSF® Certified Sanitize Option | yes |
| Detergent detection | no |
| Eco silence drive | yes |
| Aquasensor | yes |
| Water management system | no |
| Water Softener | no |
| Washing System | PrecisionWash® |
Connectivity
| Home Connect™ | yes |
| Home Connect Features | Remote Monitoring and Control |
Safety
| ChildLock | No |
| AquaStop | no |
Dimensions & Weight
| Width | 23.56 in. |
| Height | 33.88 in. |
| Length | 23.06 in. |
| Weight | 92 lbs. |
| Net Weight | 92.000 lbs |
| Length Outlet Hose (in) | 78 3/4'' |
| Power Cord Length | 67'' |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.56 in. |
| Shipping Height | 38.88 in. |
| Shipping Length | 28.06 in. |
| Shipping Weight | 132 lbs. |
| Total of Shipping Weight | 132 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.65 ft |
| Dimensional Weight | 132.43 lbs. |
| Total of Cubes | 10.65 ft |
| Total of Dimensional Weight | 132.43 lbs. |
Energy and Water
| ENERGY STAR® certified | yes |
| Total Annual Energy Consumption | 240 kWh |
| Total Annual Water Consumption | 688 gal |
Certifications
California Prop 65
