JENNAIR 36” Panel-Ready Built-In Bottom-Freezer Refrigerator (Left-Hand Door Swing) - Panel Ready (JB36NXFXLE)
SKU:
JB36NXFXLE
UPC: 883049336824
Regular price
$10,24900
Unit price
JENNAIR 36” Panel-Ready Built-In Bottom-Freezer Refrigerator (Left-Hand Door Swing) - Panel Ready (JB36NXFXLE) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Current Rebates
JennAir Curate: 1H Up to 15% Instant Savings
GET UP TO 15% OFF IN INSTANT SAVINGS
Ends: 2026-06-30
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Daring Obsidian Interior
- ✔ Max Ice Option
- ✔ Bottom-Freezer Refrigerator
- ✔ FreshFlow Air Filter
- ✔ Multi-Point LED Theater Lighting
- ✔ Style with Custom Wood Panels or Suite-Coordinating Stainless Steel Panel Kits (not included)
- ✔ TwinFresh Climate Control System
- ✔ Multi-Point Cinematic Lighting
- ✔ Fully Flush, Fully Integrated Design
- ✔ Precision Temperature Management System
- ✔ Glass Shelving
- ✔ Light-Guided Capacitive Touch Controls
- ✔ Precision Temperature Management™ System
- ✔ FreshFlow™ Air Filter
- ✔ TwinFresh™ Climate Control System
JENNAIR 36” Panel-Ready Built-In Bottom-Freezer Refrigerator (Left...
Regular price
$10,24900
Unit price
SKU:
JB36NXFXLE
Regular price
$10,24900
Unit price
JENNAIR 36” Panel-Ready Built-In Bottom-Freezer Refrigerator (Left-Hand Door Swing) - Panel Ready (JB36NXFXLE) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description
JennAir 36” Built-In Bottom Freezer Refrigerator with Elegance Shelving and Automatic Ice Maker
JennAir 36” Built-In Bottom Freezer Refrigerator with Elegance Shelving and Automatic Ice Maker
JennAir 36” Built-In Bottom Freezer Refrigerator with Elegance Shelving and Automatic Ice Maker
Product Features

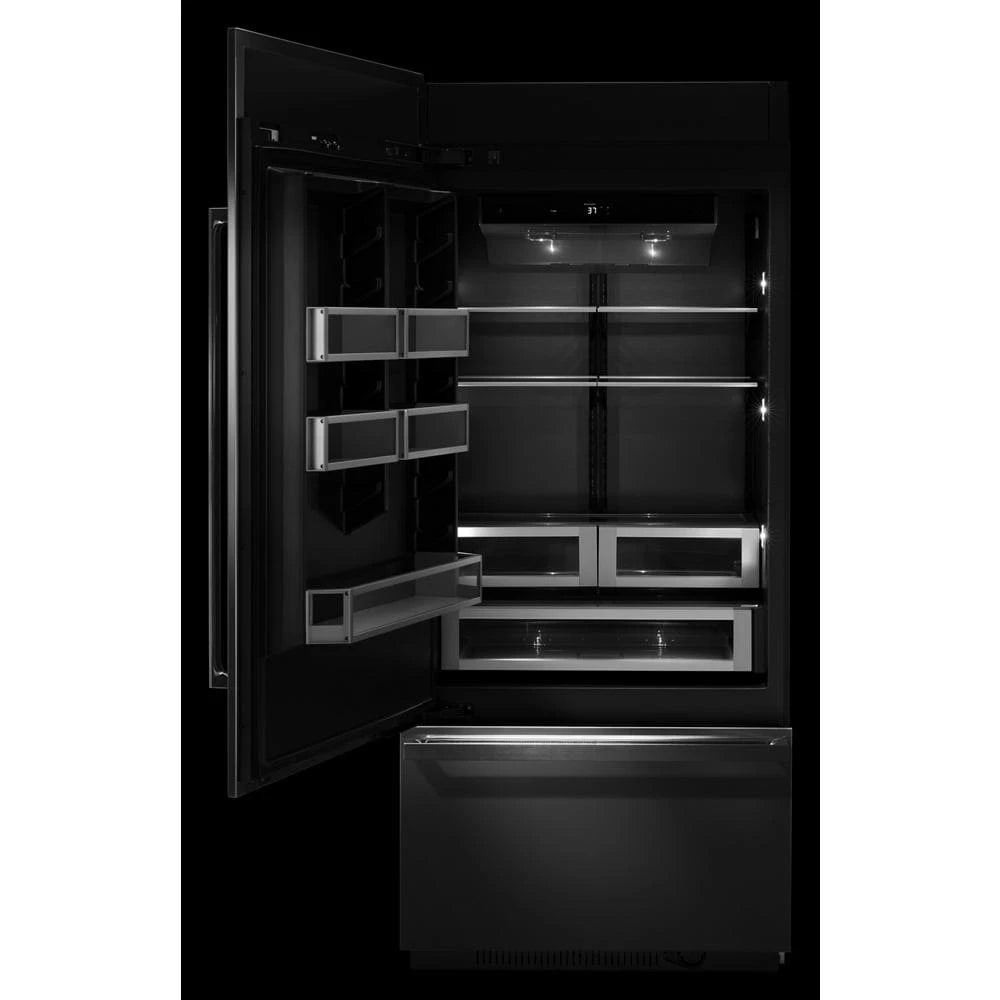

Daring Obsidian Interior
Inspired by volcanic glass, this industry-exclusive dark finish draws attention with high-contrast style. Fine foods and fresh produce emerge like vibrant art, with LED lighting showcasing your ingredients against the alluring interior.

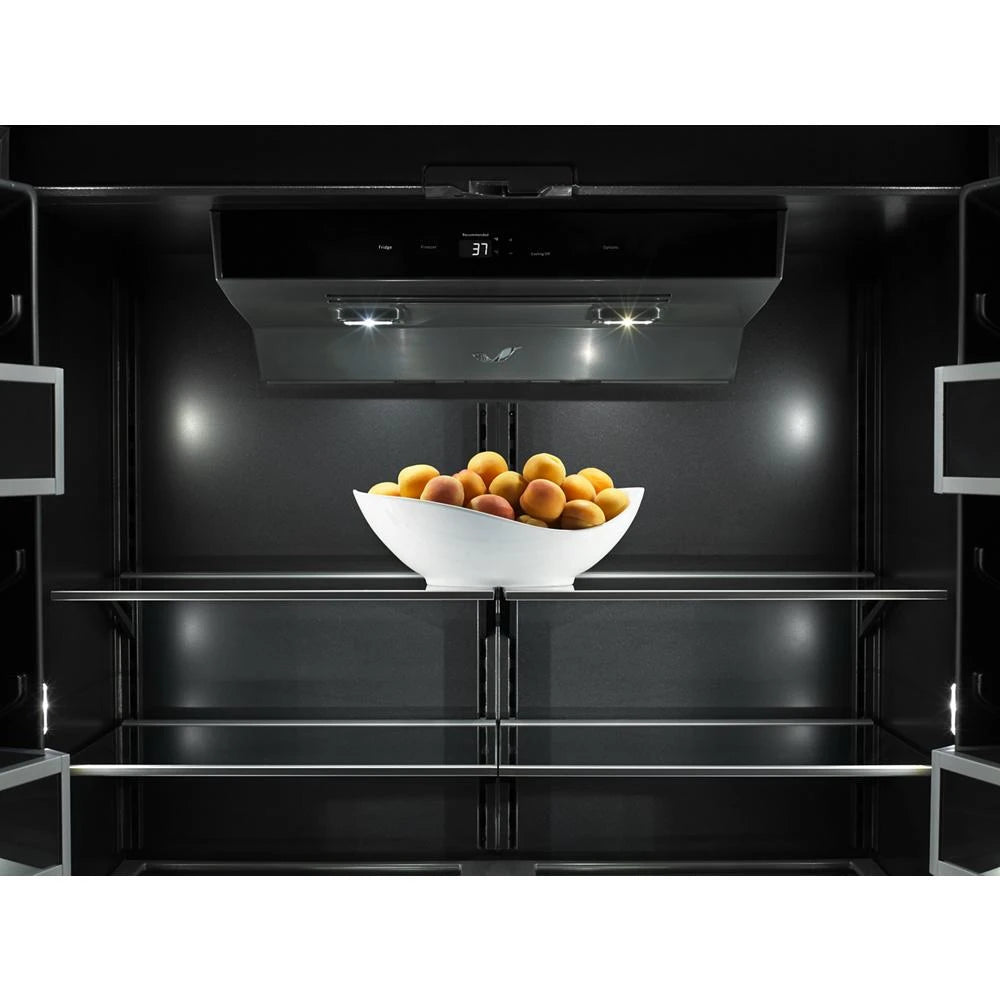

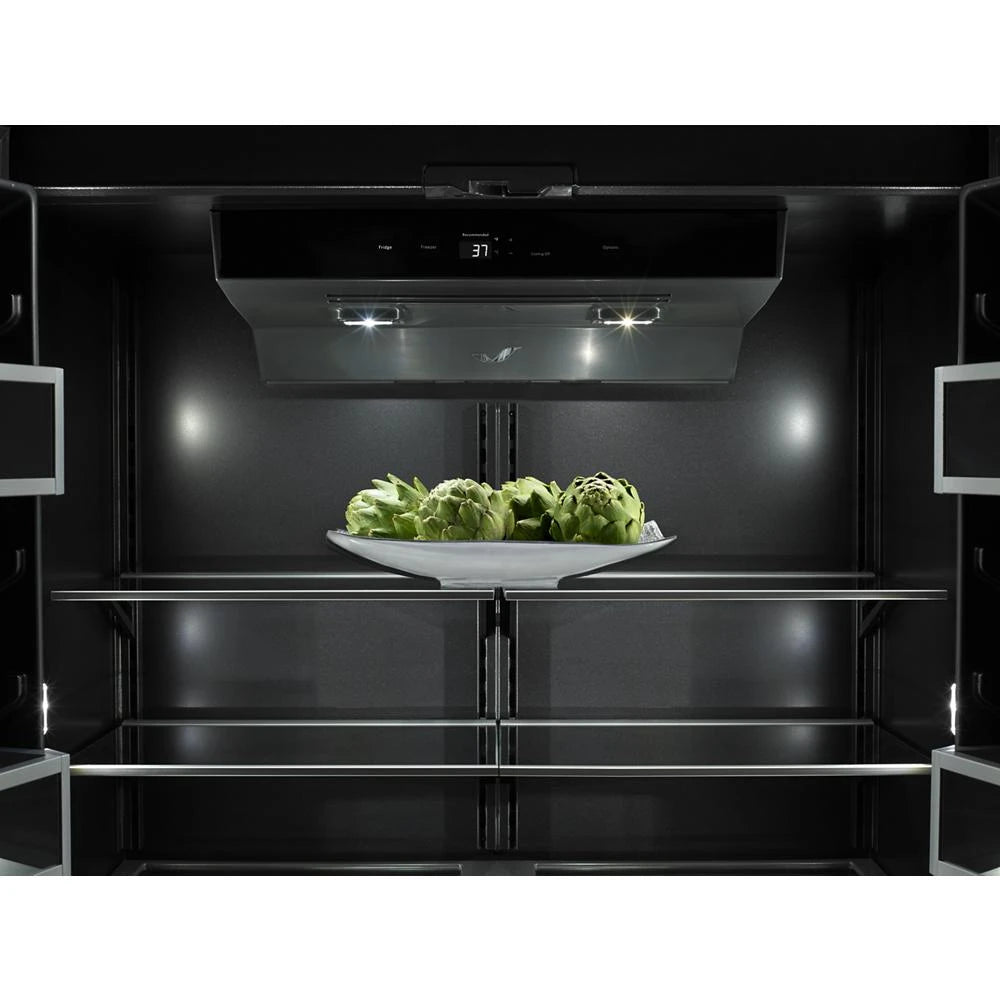

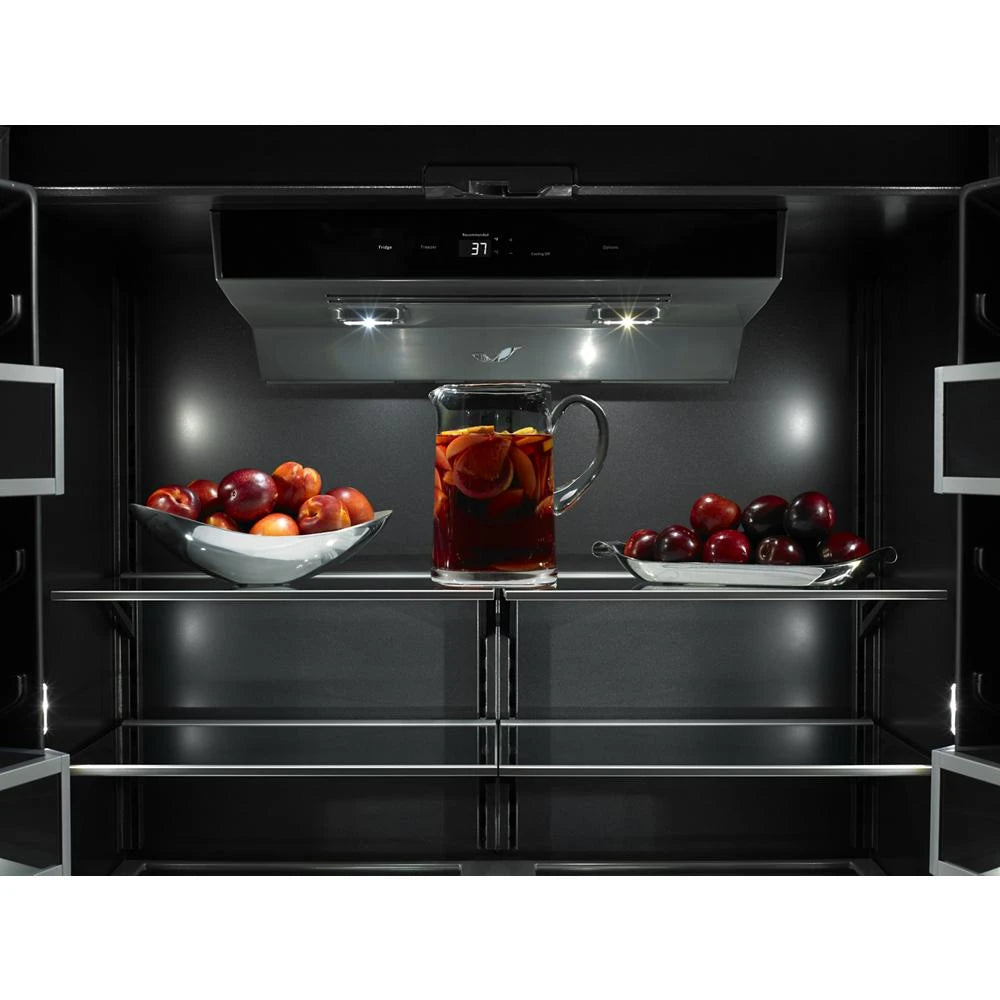

Multi-Point Cinematic Lighting
Illuminate food items against the Daring Obsidian Interior. Breathtaking Multi-Point Cinematic Lighting ramps up in intensity as you open the door to increase visibility and highlight your ingredients.

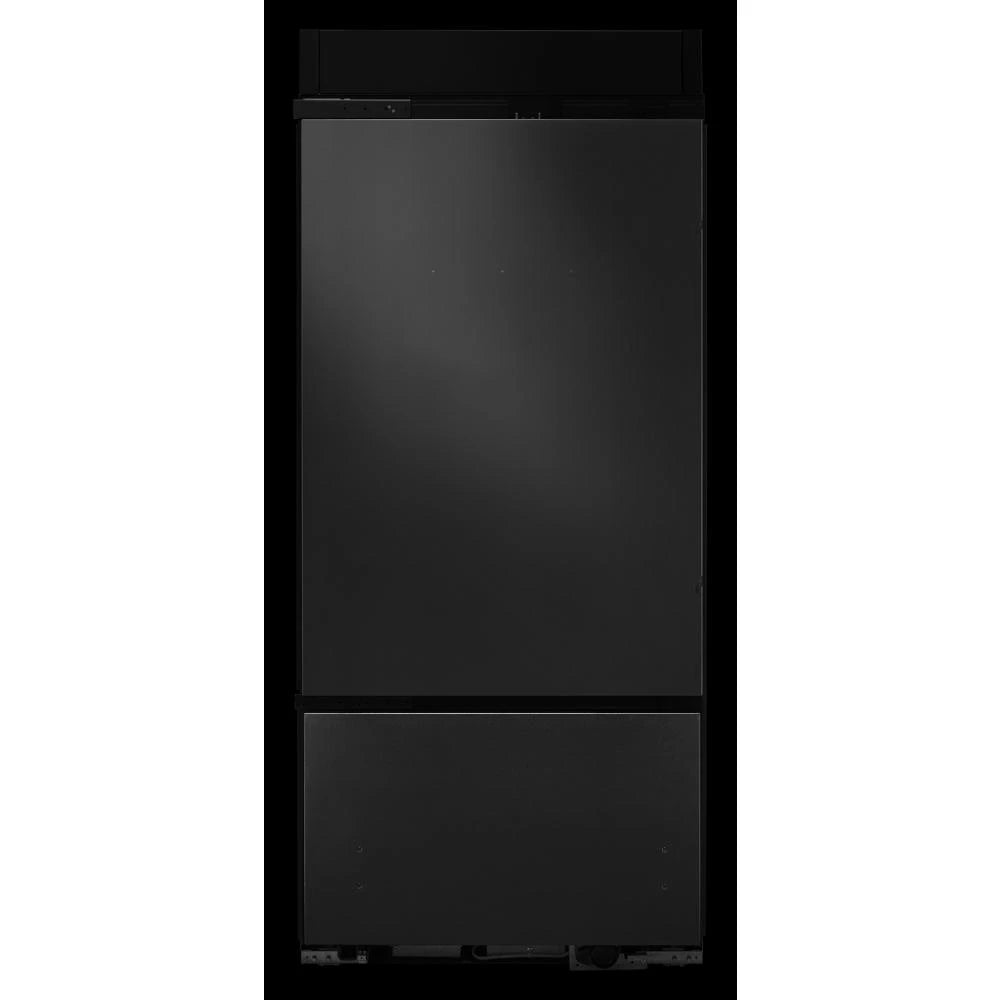

Fully Flush, Fully Integrated Design
This integrated built-in refrigerator fits beautifully into any decor, blending into custom cabinetry with a truly seamless appearance, reflecting your appreciation for the fine details of design. Must be installed in a 25" deep cabinet to achieve the fully flush look.

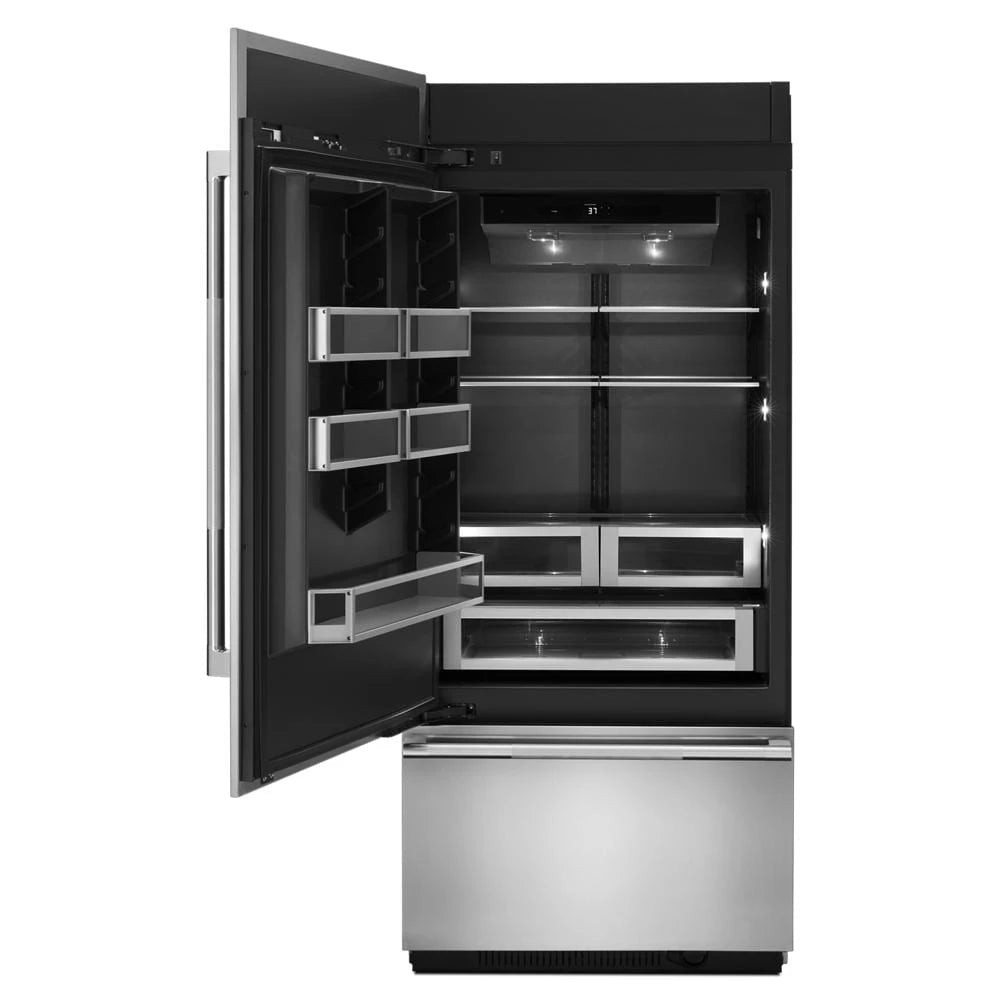

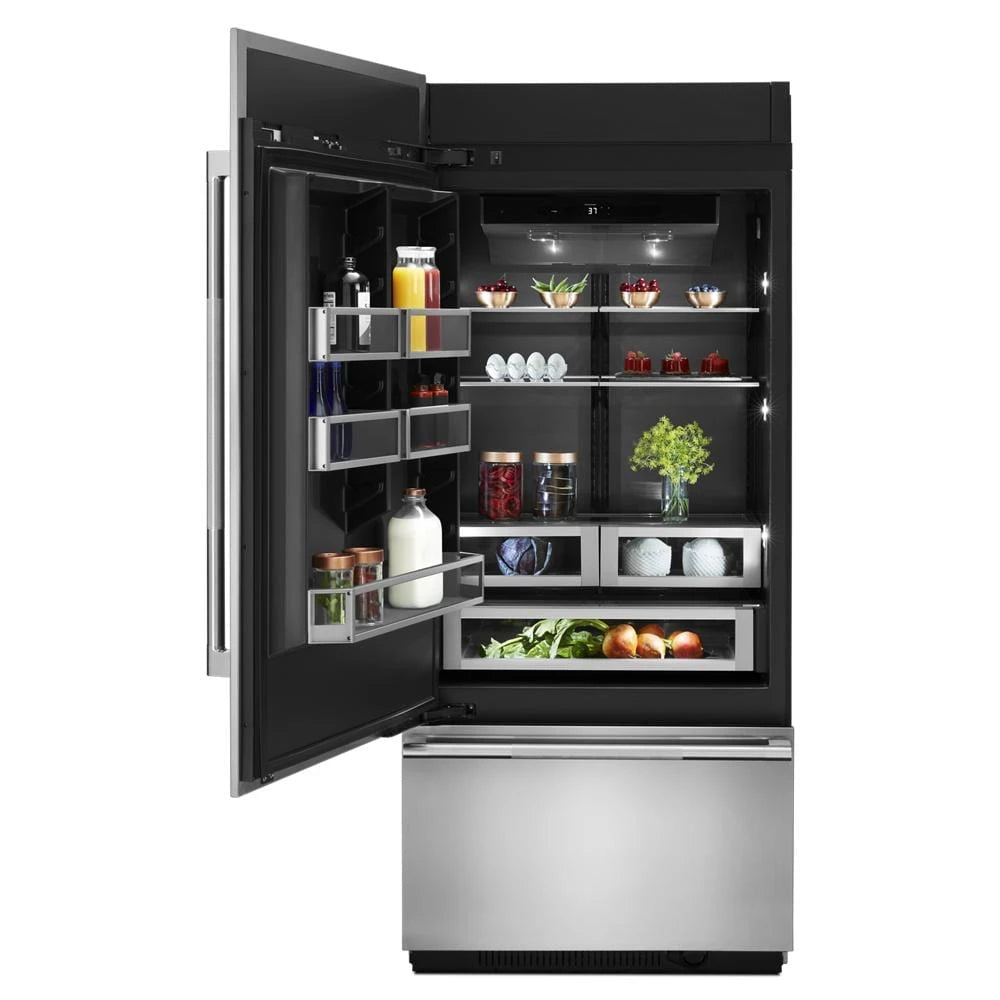

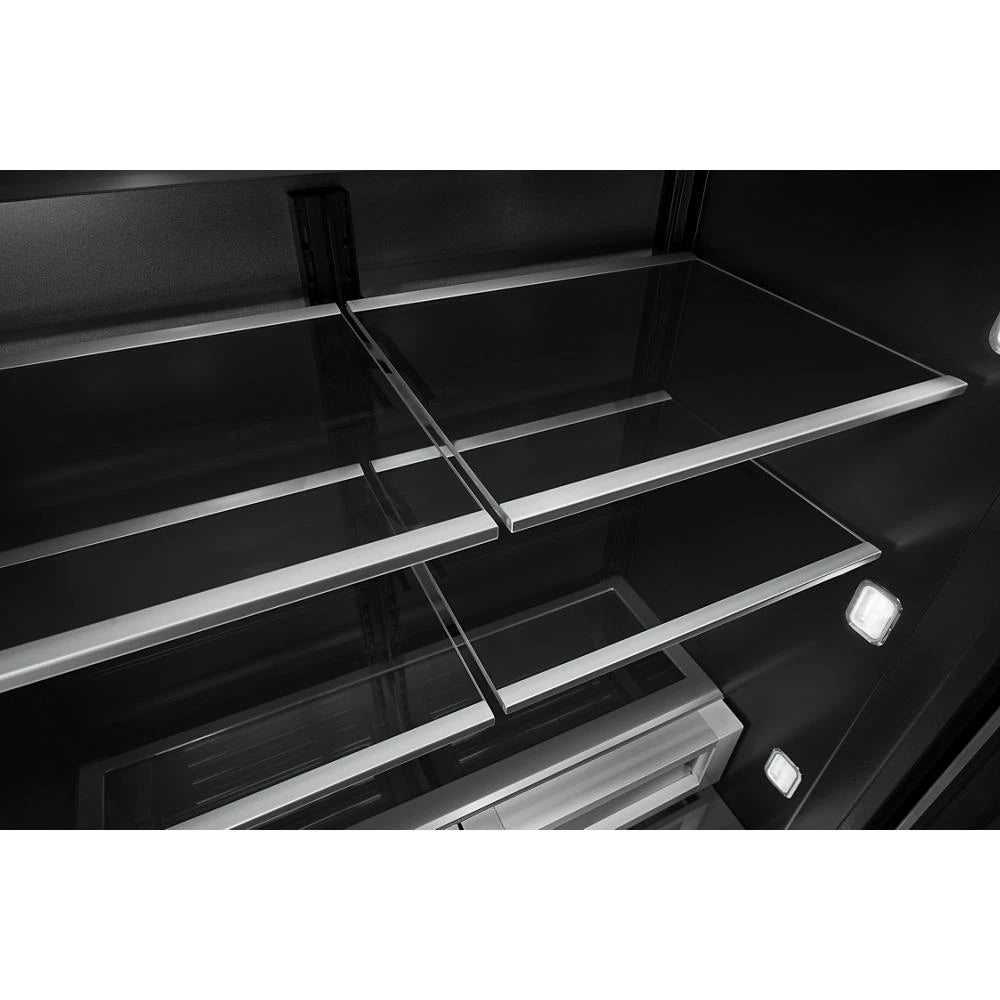

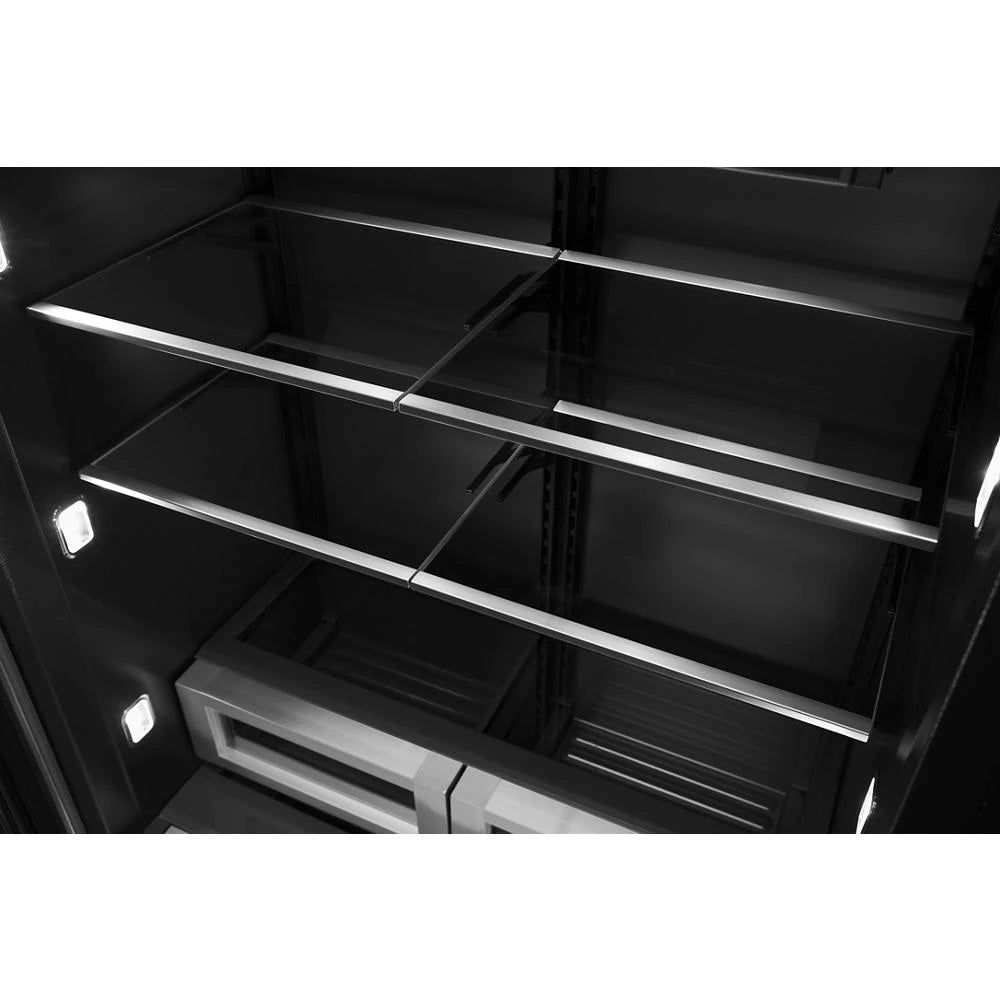

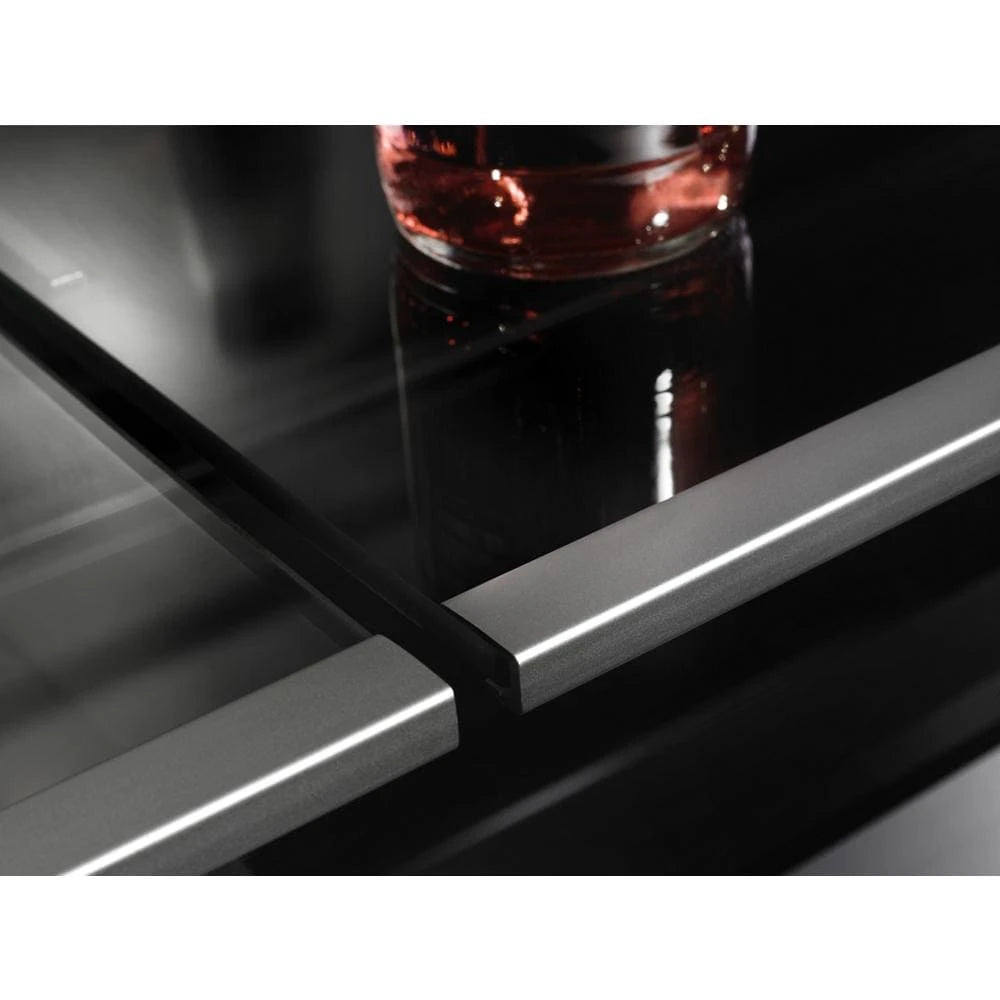

Glass Shelving
Showcase your ingredients with full-width glass and metal shelves. The clear glass allows light to filter through the substantial shelves, enhancing the visibility of everything inside the refrigerator.

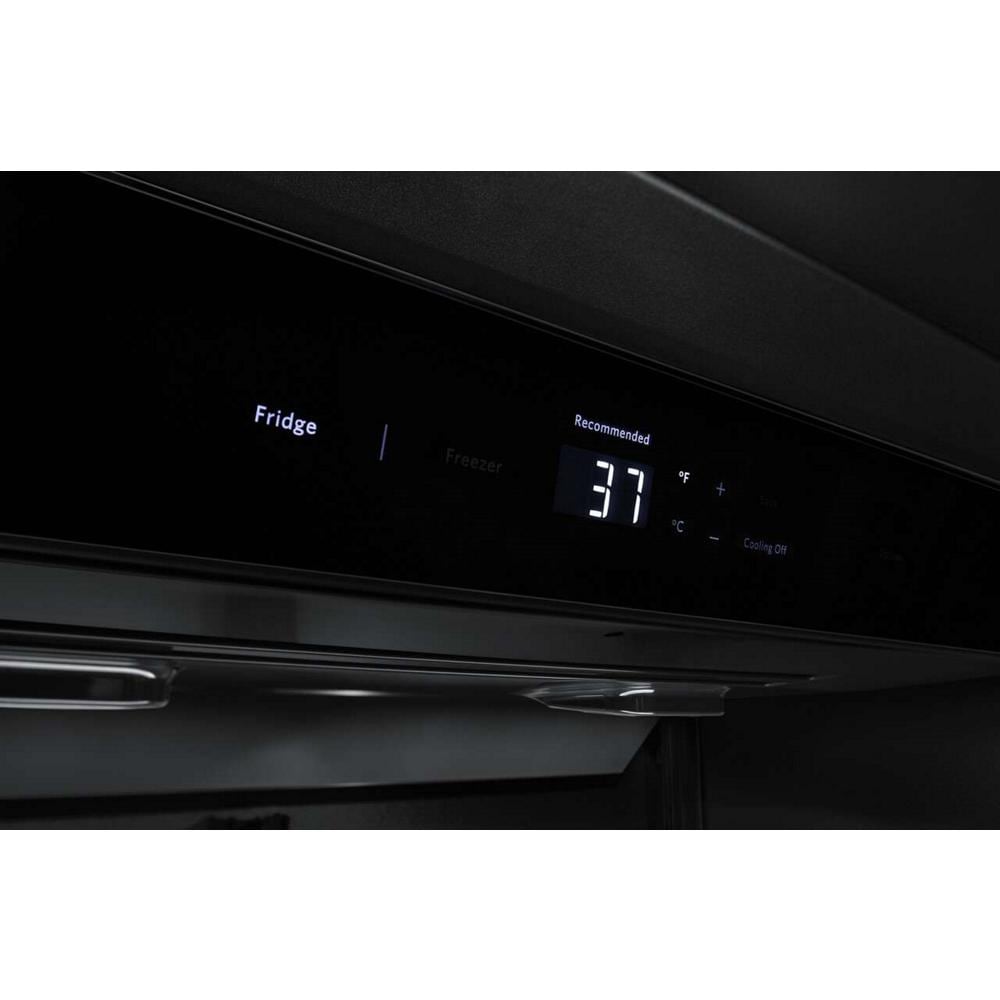

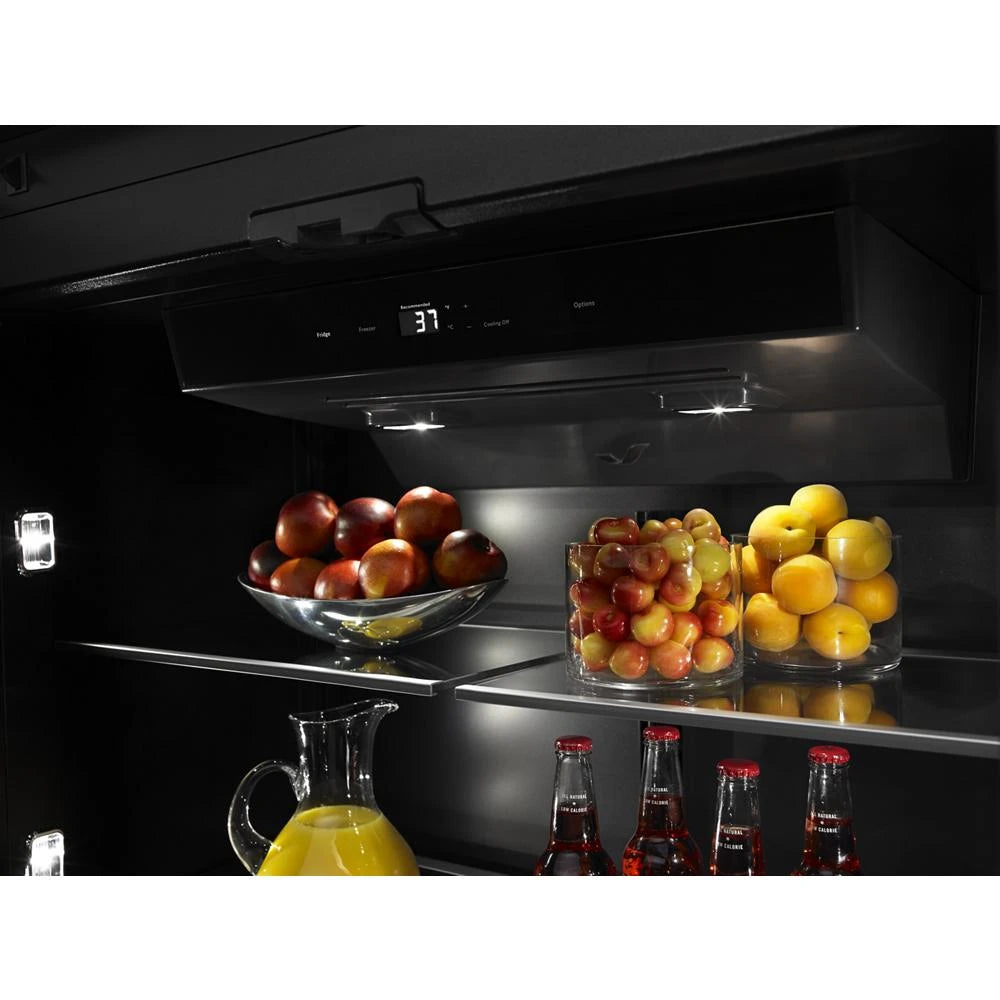

Light-Guided Capacitive Touch Controls
With the slightest touch, intuitive, light-guided controls easily direct through menu settings by using highlighted portions of the control panel.
Precision Temperature Management™ System
This sensor-controlled system manages temperatures in the refrigerator and freezer, helping to keep your ingredients at their ideal preservation temperatures. The smoothly-running refrigerator avoids abrupt start and stop cycles to help maintain tranquility in your space.

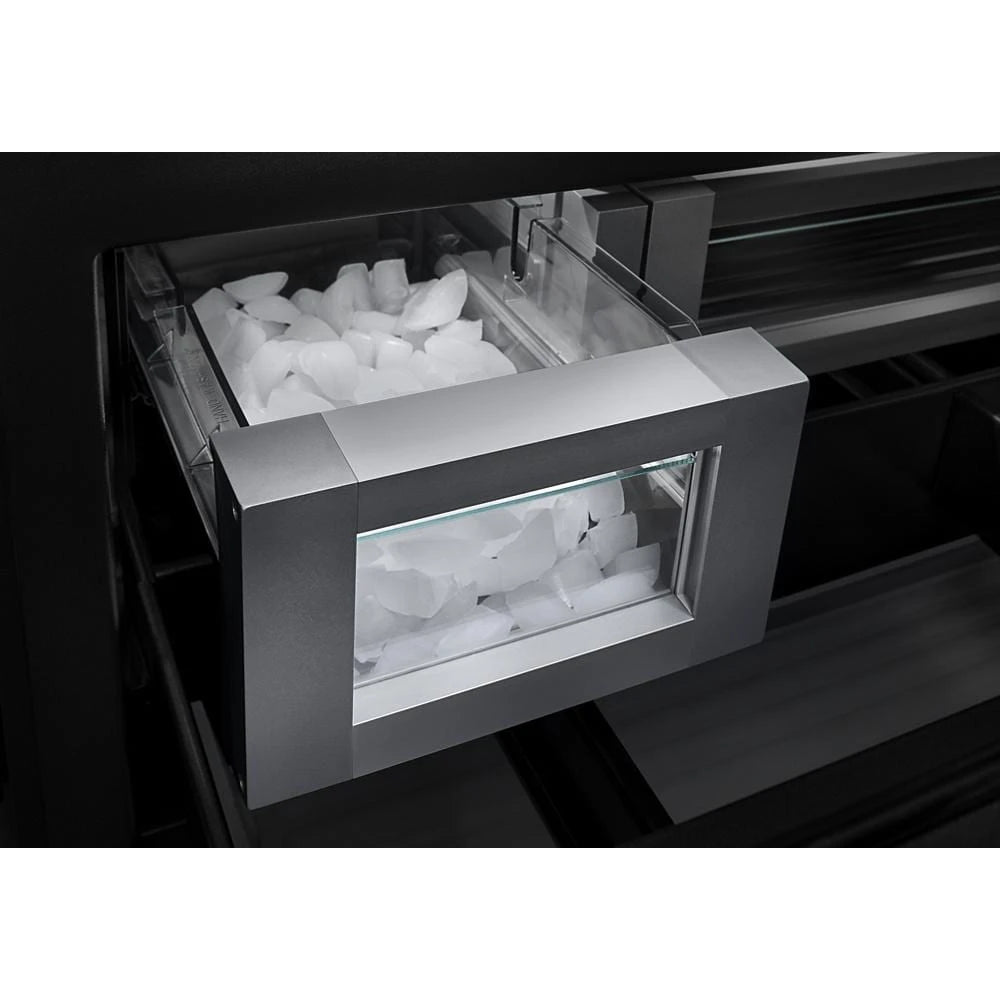

Max Ice Option
Makes fresh-tasting ice at a faster production rate for 24 hours to accommodate your entertainment needs.
Bottom-Freezer Refrigerator
Enjoy the luxury of having fresh items within easy reach, and the generous storage capacity of a conveniently located bottom freezer.
FreshFlow Air Filter
Enjoy an interior refrigerator environment that is fresh and free of common food odors.

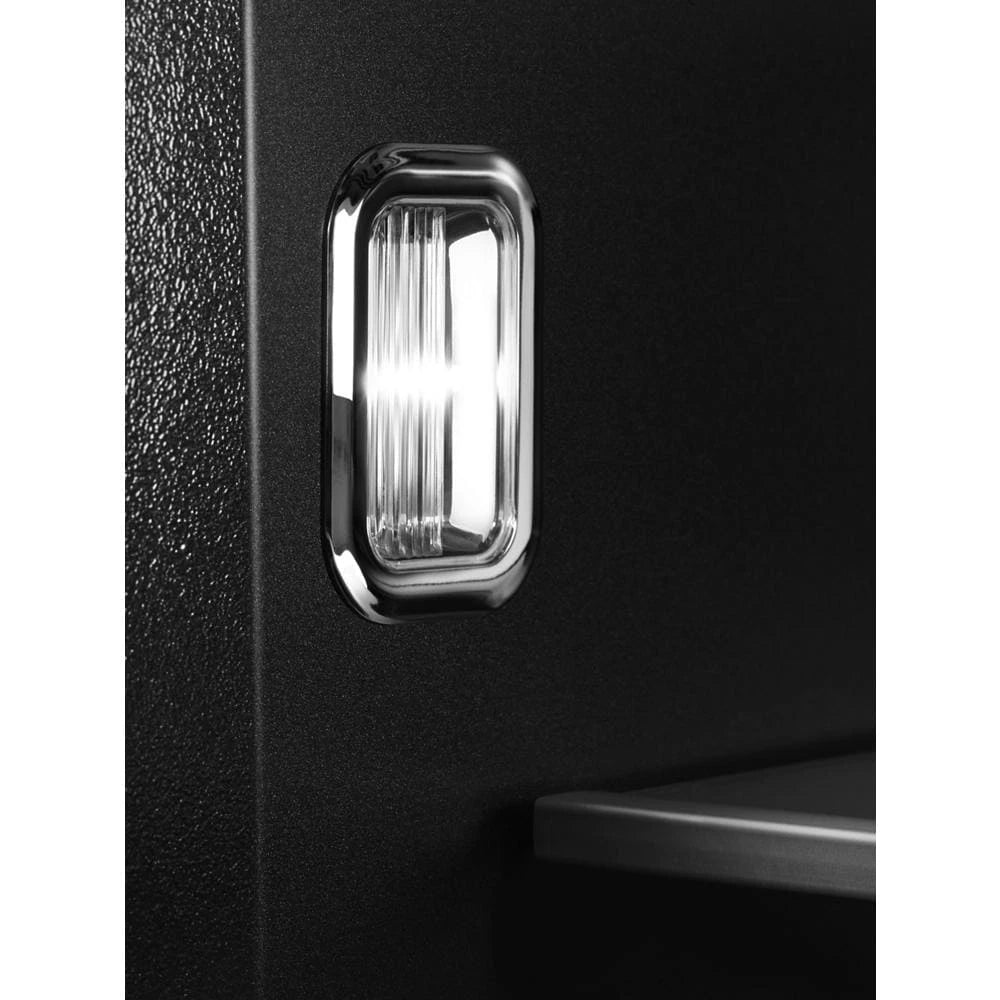

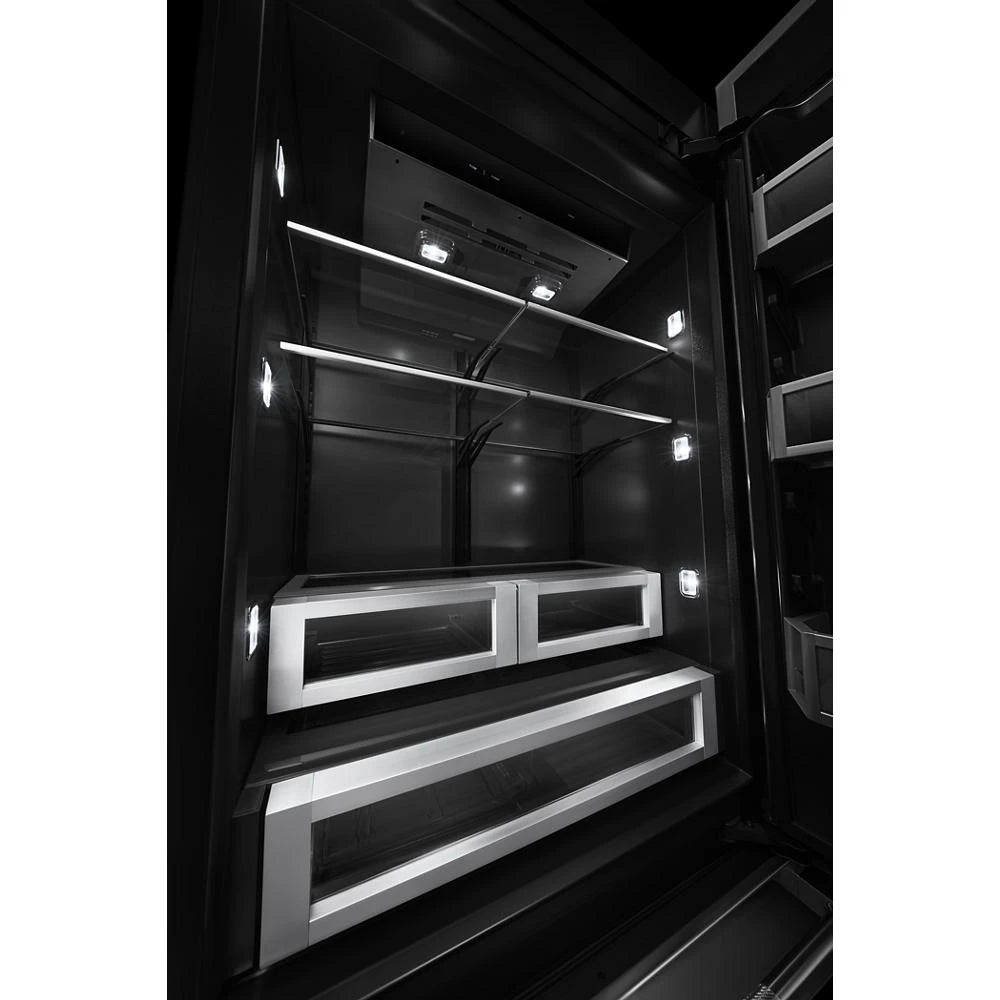

Multi-Point LED Theater Lighting
Multiple LED lights increases visibility and beautifully showcases food items against the Obsidian interior, on both Elegance Shelving.

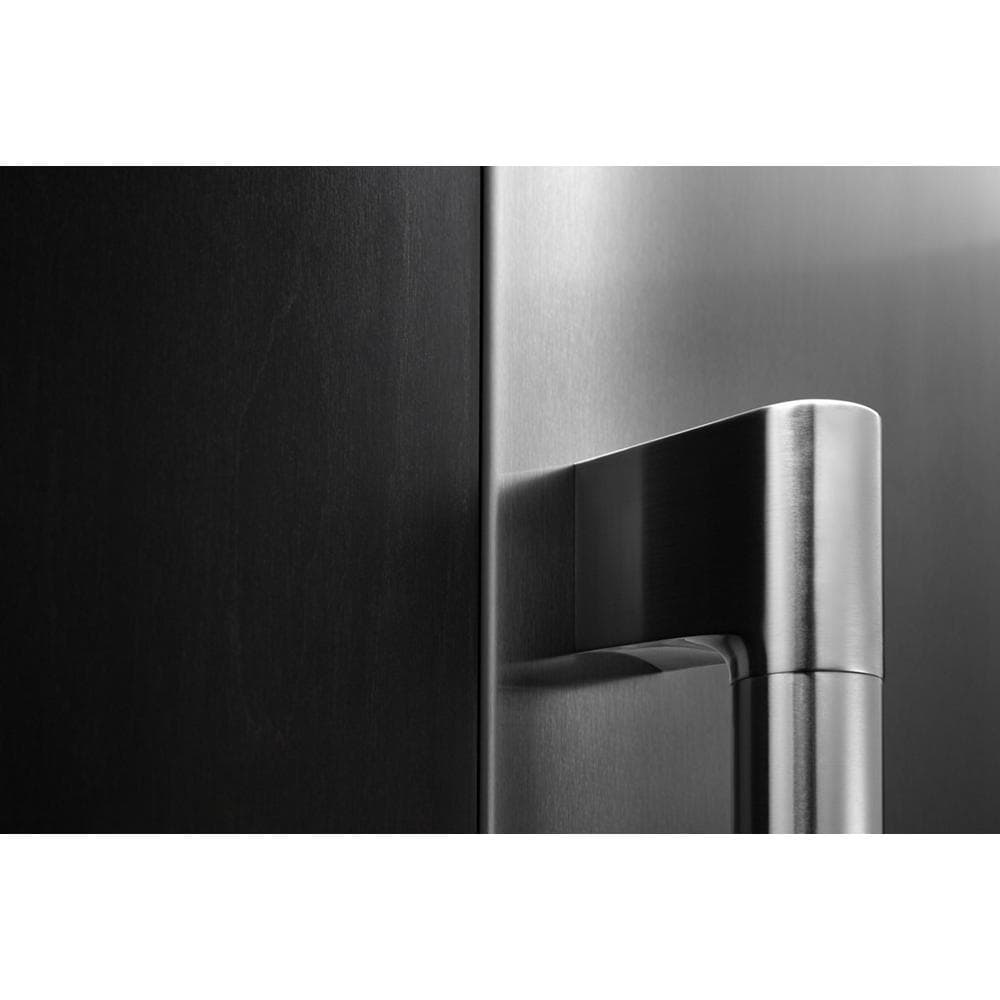

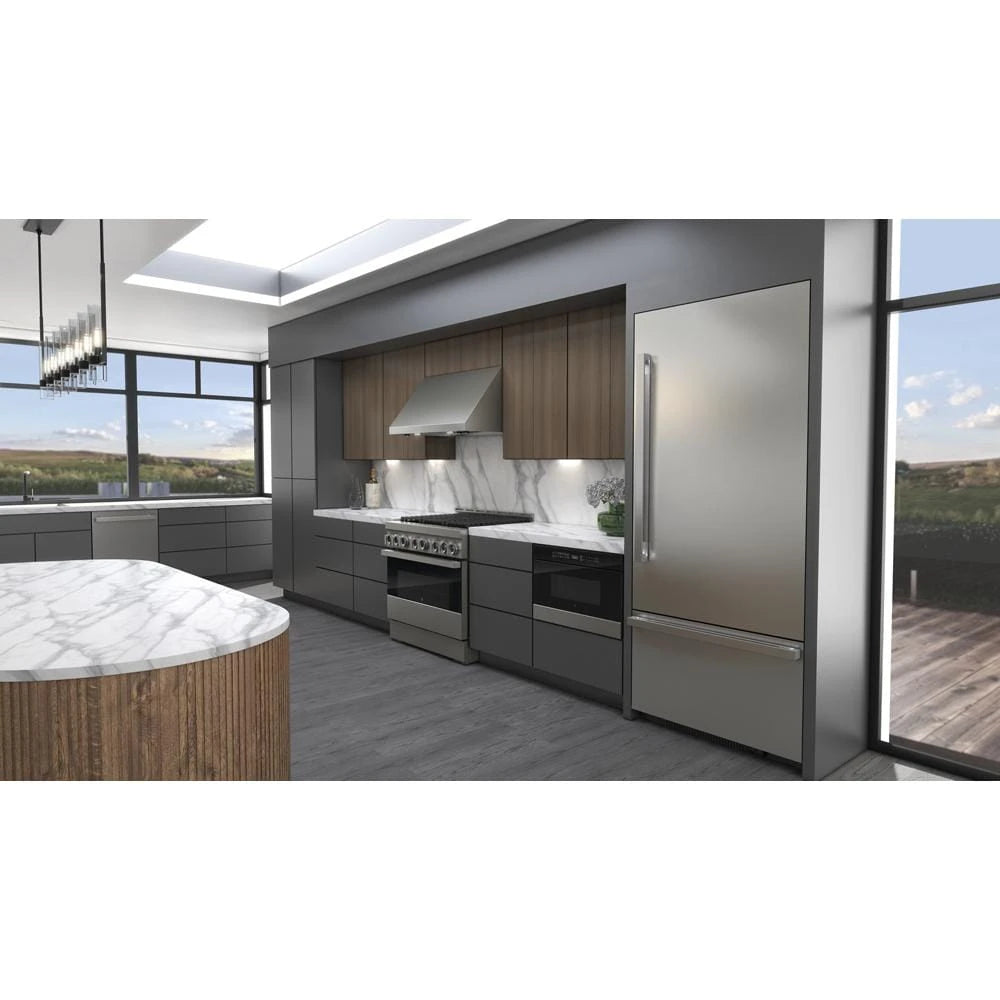

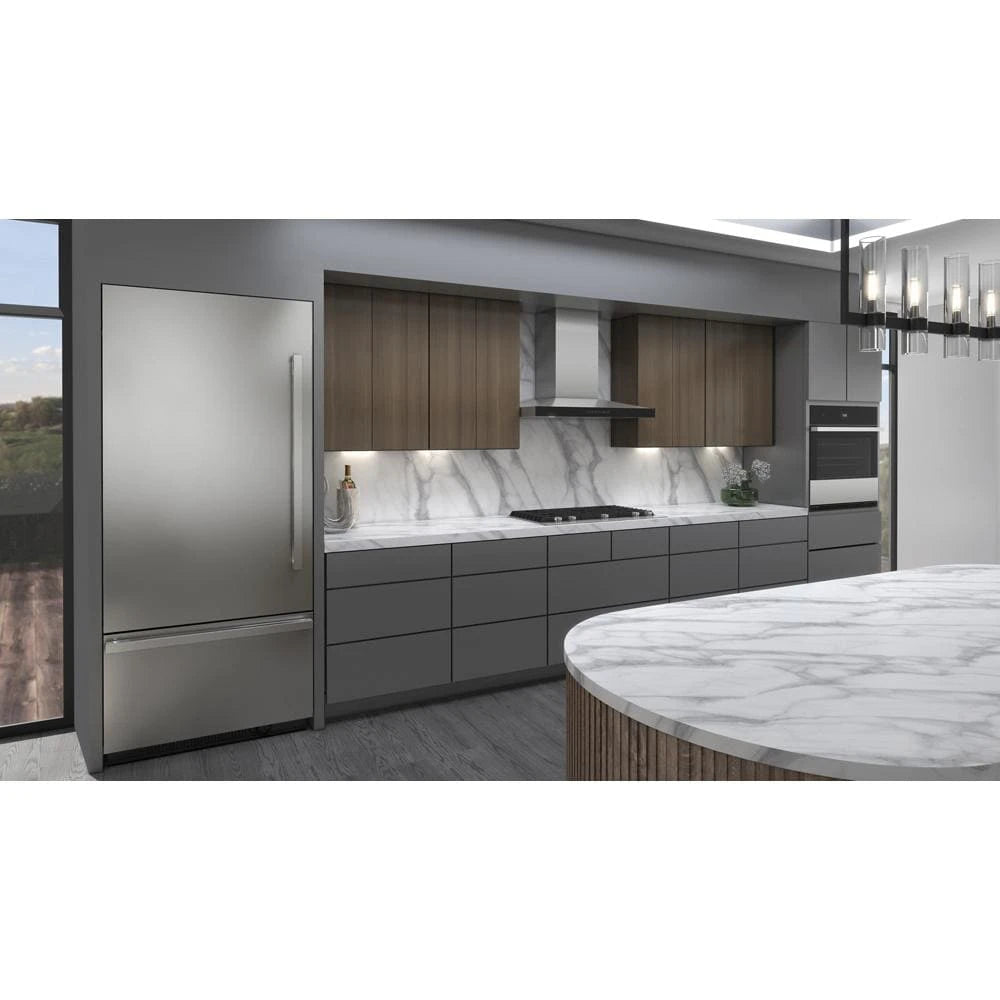

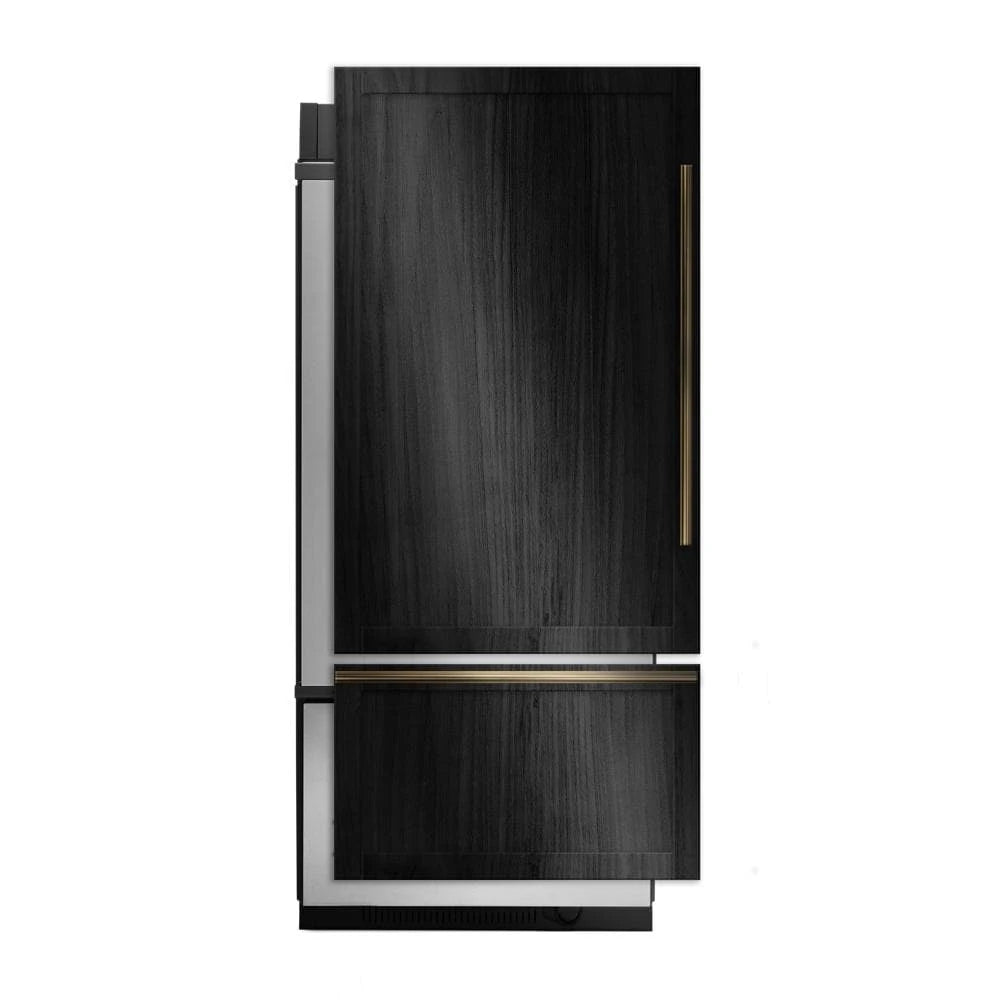

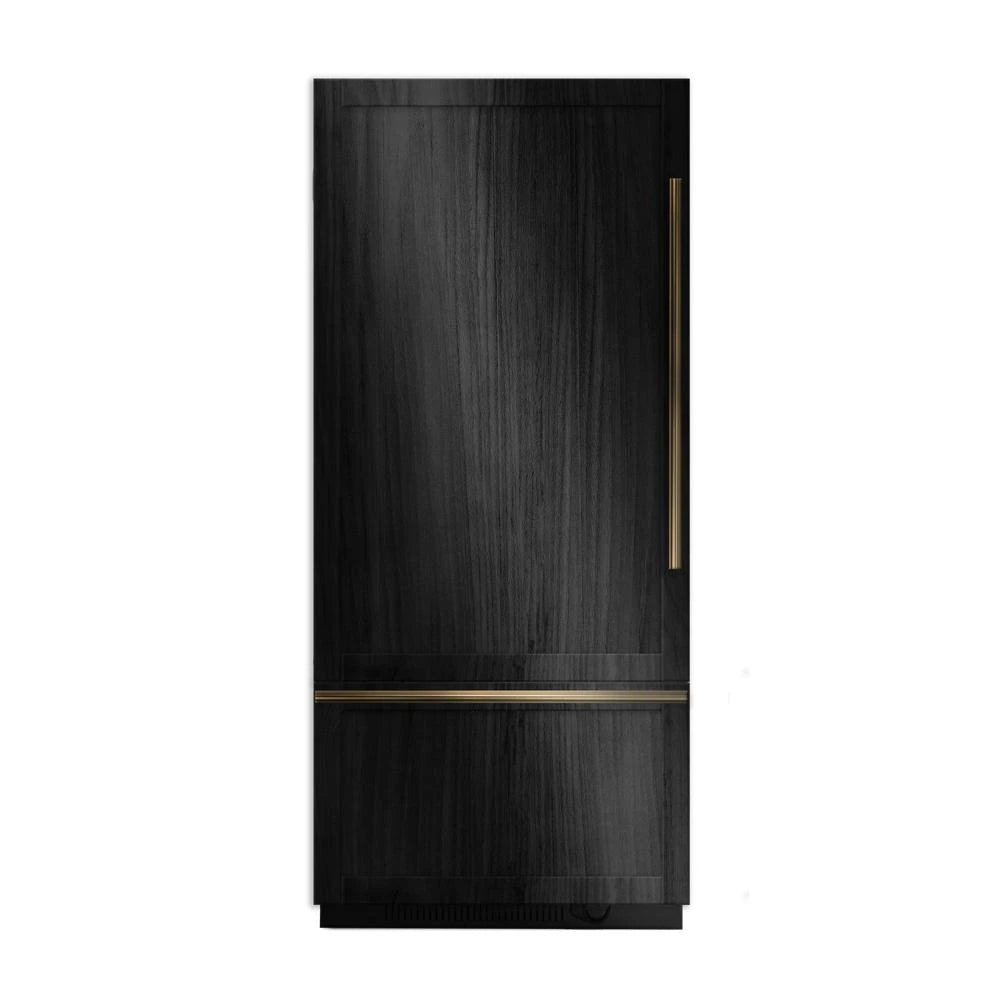

Style with Custom Wood Panels or Suite-Coordinating Stainless Steel Panel Kits (not included)
Customize the exterior with wood panels to seamlessly blend with surrounding cabinetry for a fully integrated look, or pair with Euro-Style or Pro-Style® Stainless panel kits to match other Jenn-Air® suite appliances.
TwinFresh Climate Control System
This system creates two distinct environments, ideal for both fresh and frozen foods different preservation needs. It creates cool, humid air in the refrigerator and produces dry, frigid air in the freezer.
Precision Temperature Management System
This sensor-controlled system manages temperatures in the refrigerator and freezer, helping to keep your ingredients at their ideal preservation temperatures. The smoothly-running refrigerator avoids abrupt start and stop cycles to help maintain tranquility in your space.
FreshFlow™ Air Filter
Enjoy an interior refrigerator environment that is fresh and free of common food odors.
TwinFresh™ Climate Control System
This system creates two distinct environments, ideal for both fresh and frozen foods different preservation needs. It creates cool, humid air in the refrigerator and produces dry, frigid air in the freezer.
Product Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
AHAM Volumes And Shelf Area
| Freezer Volume (Cu Ft) | 5.56 |
| Refrigerator Volume (Cu Ft) | 15.30 |
| Total Volume (Cu Ft) | 20.9 |

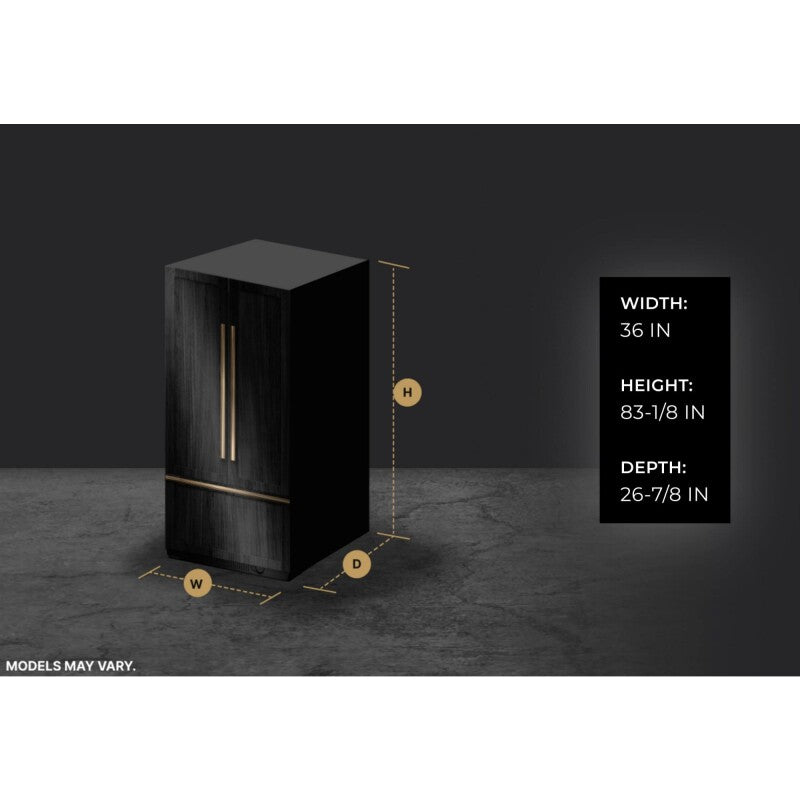

Dimensions
| Capacity(FT3,cubic feet) | 20.90 |
| Depth Closed Excluding Handles(IN,inches) | 24.7500 |
| Depth Excluding Doors(IN,inches) | 24.0000 |
| Depth With Door Open 90 Degree(IN,inches) | 58.7500 |
| Height To Top Of Cabinet(IN,inches) | 83.1250 |
| Refrigerator Capacity Volume | 15-3/10 |
| Cabinet Width | 35 In |
| Capacity | 20.9 Cu. Ft. |
| Common Size | 36 In |

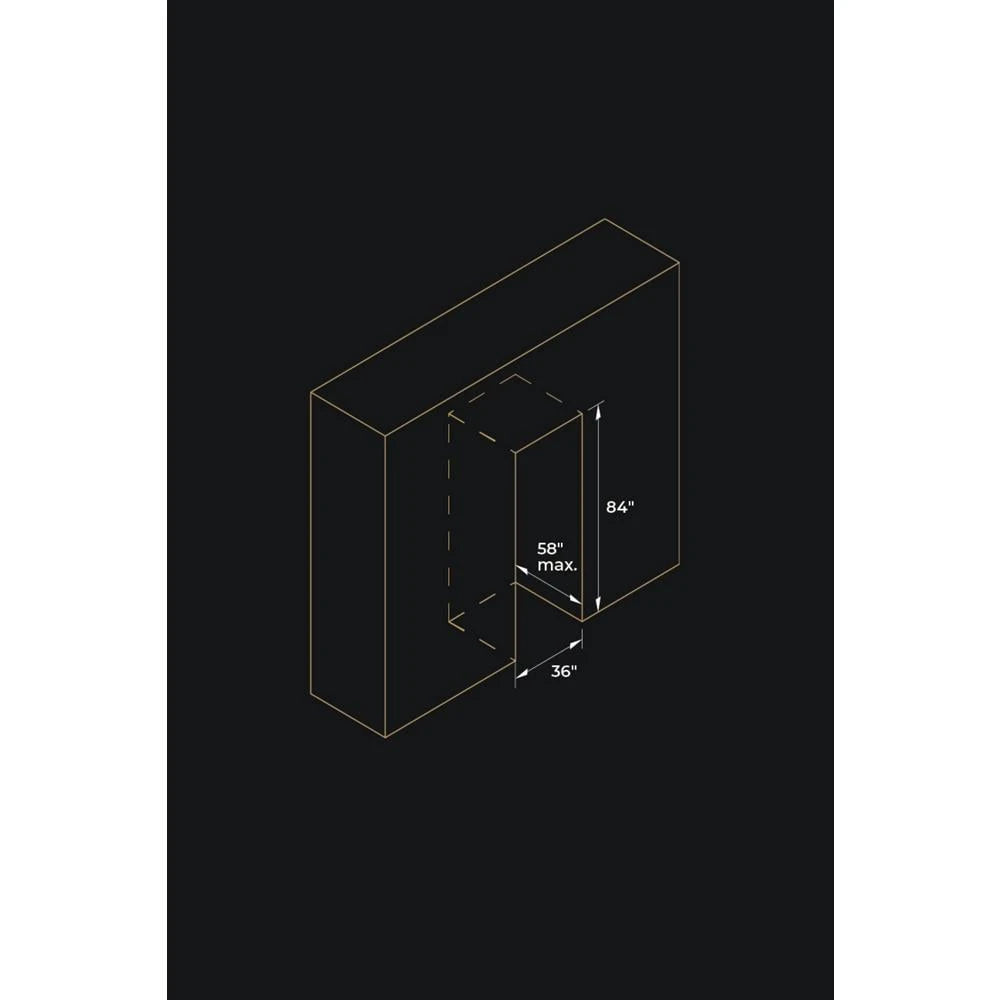

| Cutout Depth | 24 In |
| Cutout Height | 84 In |
| Cutout Width | 36 In |
| Depth | 26-7/8 In |
| Depth Closed Excluding Handles | 24-3/4 In |
| Depth Closed Including Handles | 26-7/8 In |
| Depth Excluding Doors | 24 In |
| Depth With Door Open 90 Degree | 58-3/4 In |
| Freezer Capacity Volume | 5.56 Cu. Ft. |
| Gross Weight | 550 Lbs |
| Height | 83-1/8 In |
| Height To Top Of Cabinet | 83-1/8 In |
| Net Weight | 525 Lbs |
| Total Refrigerator Capacity Volume | 20.9 Cu. Ft. |
| Width | 36 In |
| Width Doors Open 90 Degrees | 58-3/4 In |
Details
| Counter Depth | Yes |
| Refrigeration Configuration | Refrigerator |
| Design Expression | Panel-ready |
| Installation Configuration | Built-in |
| Installation Option | Built-in |
| Refrigerator Type | Built-in Bottom Mount |
Controls
| Automatic Defrost | Yes |
| Control Location | Interior Up Front |
| Control Type | Touch Pad |
| Door Ajar/Open Alarm | Yes |
| Max Cool/Fast Cool | Yes |
| Sabbath Mode | Yes |
| Cooling Type | Dual Evaporator |
| LCD Touch Screen | No |
Refrigerator Compartment
| Number of Interior Shelves | 4 |
| Door Bins | 1 Fixed Full-Width Gallon, 4 Adjustable Full-Width |
Freezer Compartment
| Freezer Drawer/Basket | 1 Full Width Lower Plastic, 2 Half Width Upper Plastic |
Icemaker
| Icemaker | Factory Installed |
Certifications
| ADA Compliant | No |
| Energy Star® Certified | ENERGY STAR® Qualified |
| UL | Yes |
| CEE Tier Rating | Tier I |
| Energy Star® Qualified | Energy Star® Qualified |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Electrical
| Amps | 20 |
| Hz | 60 |
| Volts | 115 |
Dimension
| Capacity (Cu Ft) | 20.90 |
| Depth Closed Excluding Handles | 24 3/4 |
| Depth Excluding Doors | 24 |
| Depth With Door Open 90 Degree | 58 3/4 |
| Height To Top Of Cabinet | 83 1/8 |
Other
| Capacity (Cu Ft) | 20.90 |
| Dispenser Type | No Dispenser |
| Freezer Capacity Volume | 5.56 |
| Refrigerator Capacity Volume | 15.3 |
| Total Refrigerator Capacity Volume | 20.9 |
| Capacity (Cu Ft) | 20.90 |
| Capacity(FT3,cubic feet) | 20.90 |
| Dispenser Type | No Dispenser |
| Freezer Capacity Volume | 5.56 |
| Refrigerator Capacity Volume | 15.3 |
| Total Refrigerator Capacity Volume | 20.9 |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 61.14 ft |
| Dimensional Weight | 760.08 lbs. |
| Total of Cubes | 61.14 ft |
| Total of Dimensional Weight | 760.08 lbs. |
Exterior Details
| Cabinet Finish | Smooth |
| Counter Depth | Yes |
| Door Style | Flat |
| Hidden Hinge | Yes |
| Reversible Door | No |
| Base Grille Color | Black |
| Door Color | Panel Ready |
| Door Opening Direction | Left |
Filter Details
| Air Filter Indicator/Reset | No |
| Fresh Flow Air Filter Included | Yes |
| Produce Preserver | Yes |
| Water Filter Indicator/Reset | Yes |
| Water Filter Location | Exterior |
| Water Filter Part Number | Edr3rxd1 |
Freezer Details
| Defrost Type | Automatic Defrost |
| Freezer Door Bins | No |
| Freezer Number of Shelves | 0 |
| Freezer Shelves | None |
| Freezer Drawer/Basket | 1 Full Width Lower Metal, 1 Full Width Lower Plastic, 1 Full Width Upper Plastic, 2 Half Width Upper Plastic |
| Freezer Door Type | Pull-out |
| Freezer Lighting | Led |
Icemaker Details
| Icemaker | Factory Installed |
| Icemaker Location | Freezer |
| Types of Ice | No |
Refrigerator Details
| Liner Finish | Obsidian |
| Number of Doors | 2 |
| Spill-Proof Glass Shelves | No |
| Temperature-Controlled Drawers | No |
| Non Climate Control Drawers | 1 Full Width, 2 Half Width |
| Conventional Shelves | 1 Fixed Full-width Glass, 4 Adjustable Half-width Glass |
| Humidity-Controlled Crispers | 1 Full-width, None |
| Refrigerator Door Bins | 1 Adjustable Gallon, 1 Fixed Full-width Gallon, 2 Dairy, 4 Adjustable Full-width, 4 Adjustable Half-width |
| Refrigerator Lighting | Multi-point Lighting, Led |
Dimensions & Weight
| Width | 39 in. |
| Height | 86 in. |
| Length | 31.5 in. |
| Weight | 550 lbs. |
| Cabinet Width (in) | 35 |
| Carton Depth | 31 1/2 |
| Carton Height | 86 |
| Carton Width | 39 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 84 |
| Cutout Width (in) | 41 1/2 |
| Depth Closed Excluding Handles | 24 3/4 |
| Depth Closed Including Handles | 26 7/8 |
| Depth Excluding Doors | 24 |
| Depth With Door Open 90 Degree | 58 3/4 |
| Gross Weight | 550 |
| Height To Top Of Cabinet | 83 1/8 |
| Net Weight | 525.0 |
| Gross Weight | 550 |
| Cabinet Width (IN,inches) | 35.0000 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 84.0000 |
| Cutout Width(IN,inches) | 41.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.7500 |
| Depth Closed Including Handles(IN,inches) | 26.8750 |
| Depth Excluding Doors(IN,inches) | 24.0000 |
| Depth With Door Open 90 Degree(IN,inches) | 58.7500 |
| Depth(IN,inches) | 26.8750 |
| Height To Top Of Cabinet(IN,inches) | 83.1250 |
| Net Weight(LB,pounds) | 525 |
| Carton Depth(IN,inches) | 31.5000 |
| Carton Height(IN,inches) | 86.0000 |
| Carton Width(IN,inches) | 39.0000 |
| Cutout Depth Max(IN,inches) | 25.0000 |
| Cutout Height Min(IN,inches) | 84.0000 |
| Gross Weight(LB,pounds) | 550 |
| Cabinet Width | 35 |
| Cutout Depth | 24 |
| Cutout Height | 84 |
| Cutout Width | 36 |
| Depth Closed Excluding Handles | 24.75 |
| Depth Closed Including Handles | 26.875 |
| Depth Excluding Doors | 24 |
| Depth With Door Open 90 Degree | 58.75 |
| Height To Top Of Cabinet | 83.125 |
| Width Doors Open 90 Degrees | 58.75 |
| carton depth | 31.5 |
| carton height | 86 |
| carton width | 39 |
| gross weight | 550 |
| net weight | 525 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 39 in. |
| Shipping Height | 86 in. |
| Shipping Length | 36.5 in. |
| Shipping Weight | 590 lbs. |
| Total of Shipping Weight | 590 lbs. |
| Source | Calculation |
Dispenser Details
| Dispenser Type | No Dispenser |
Certifications
California Prop 65
