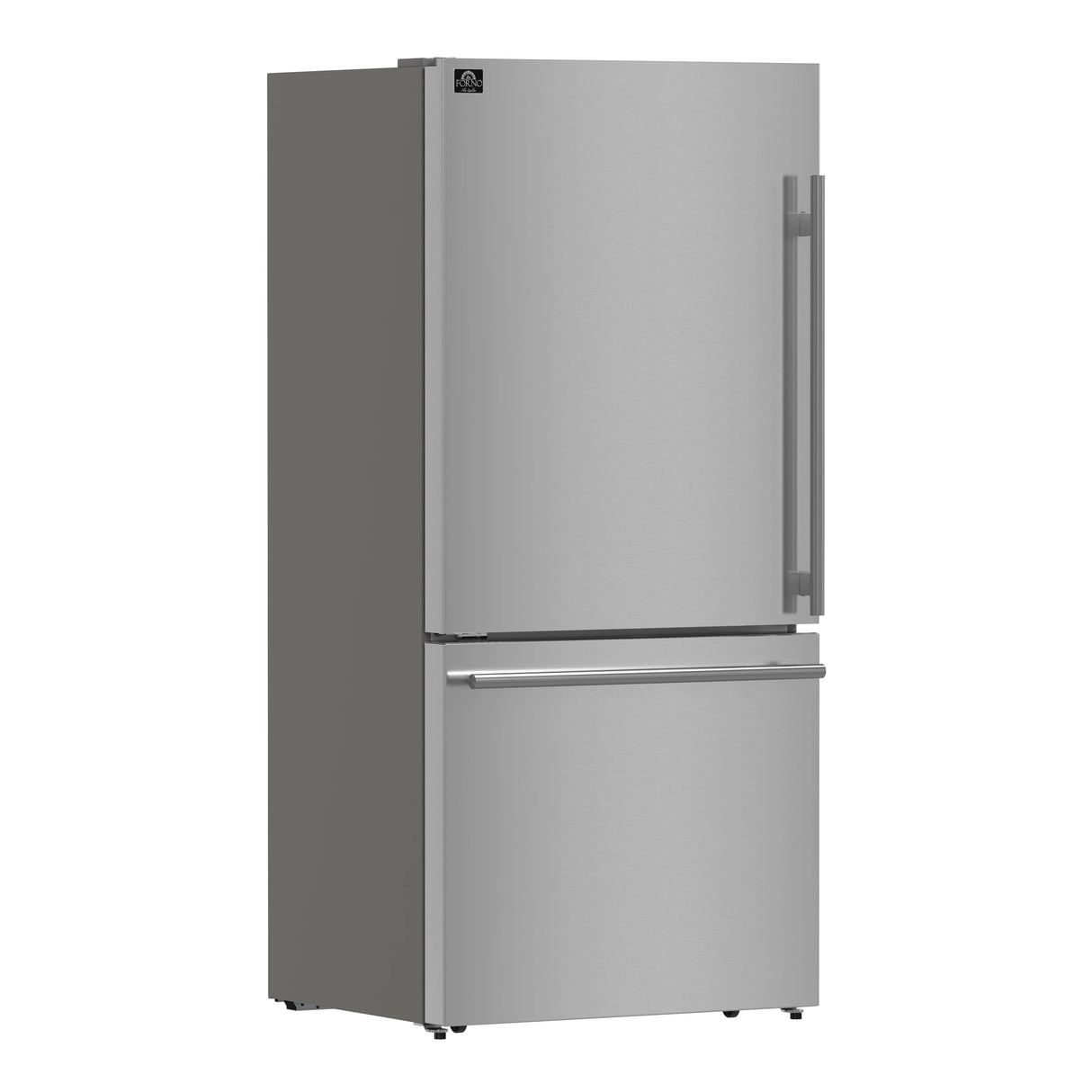

FORNO Milano Espresso 31-Inch Stainless Steel Bottom Freezer Refrigerator, 17.2 cu.ft., Built-In Ice Maker, ENERGY STAR - Stainless Steel VCM (FFFFD178631S)

SKU: FFFFD178631S

UPC: 686136917360

Sale price $1,54900 Regular price $1,99900

FORNO Milano Espresso 31-Inch Stainless Steel Bottom Freezer Refrigerator, 17.2 cu.ft., Built-In Ice Maker, ENERGY STAR - Stainless Steel VCM (FFFFD178631S) is available for ordering but may require additional time to be fulfilled. Please contact us for details.

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • Caption/Feature 1
  • Caption/Feature 11
  • Caption/Feature 2
  • Caption/Feature 4
  • Caption/Feature 6
  • Caption/Feature 8
  • Bullet Point 1
  • Bullet Point 3
  • Bullet Point 5
  • Caption/Feature 10
  • Caption/Feature 12
  • Caption/Feature 3
  • Caption/Feature 5
  • Caption/Feature 7
  • Caption/Feature 9
  • Bullet Point 2
  • Bullet Point 4
  • Bullet Point 6

Documents

PDF Icon

updated FFFFD-1786-31-IM-ENG-FRE

View | Download

PDF, 46.67 MB

PDF Icon

FFFFD1786-31 Series Instuction Manual (Tri)

View | Download

PDF, 46.66 MB

Description

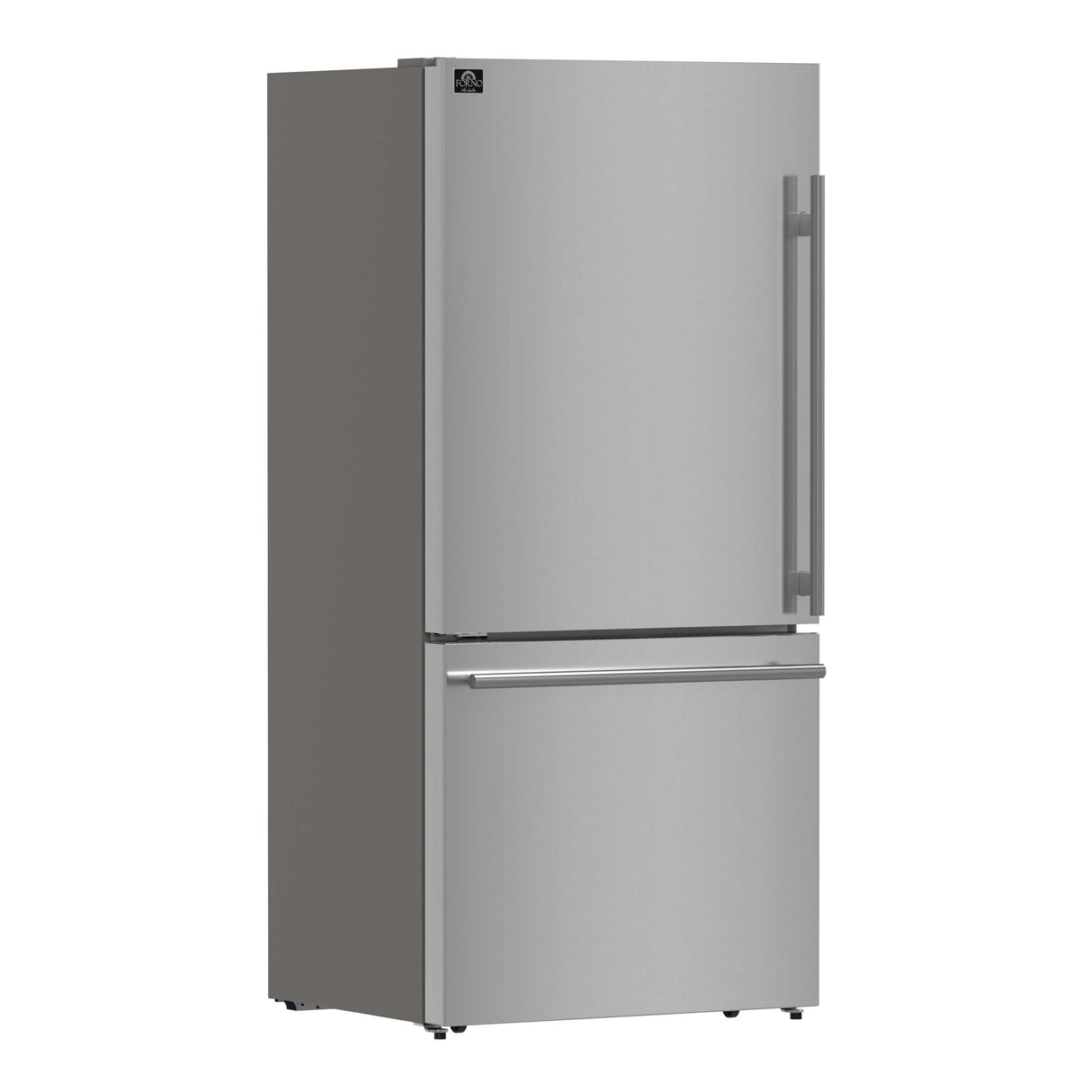

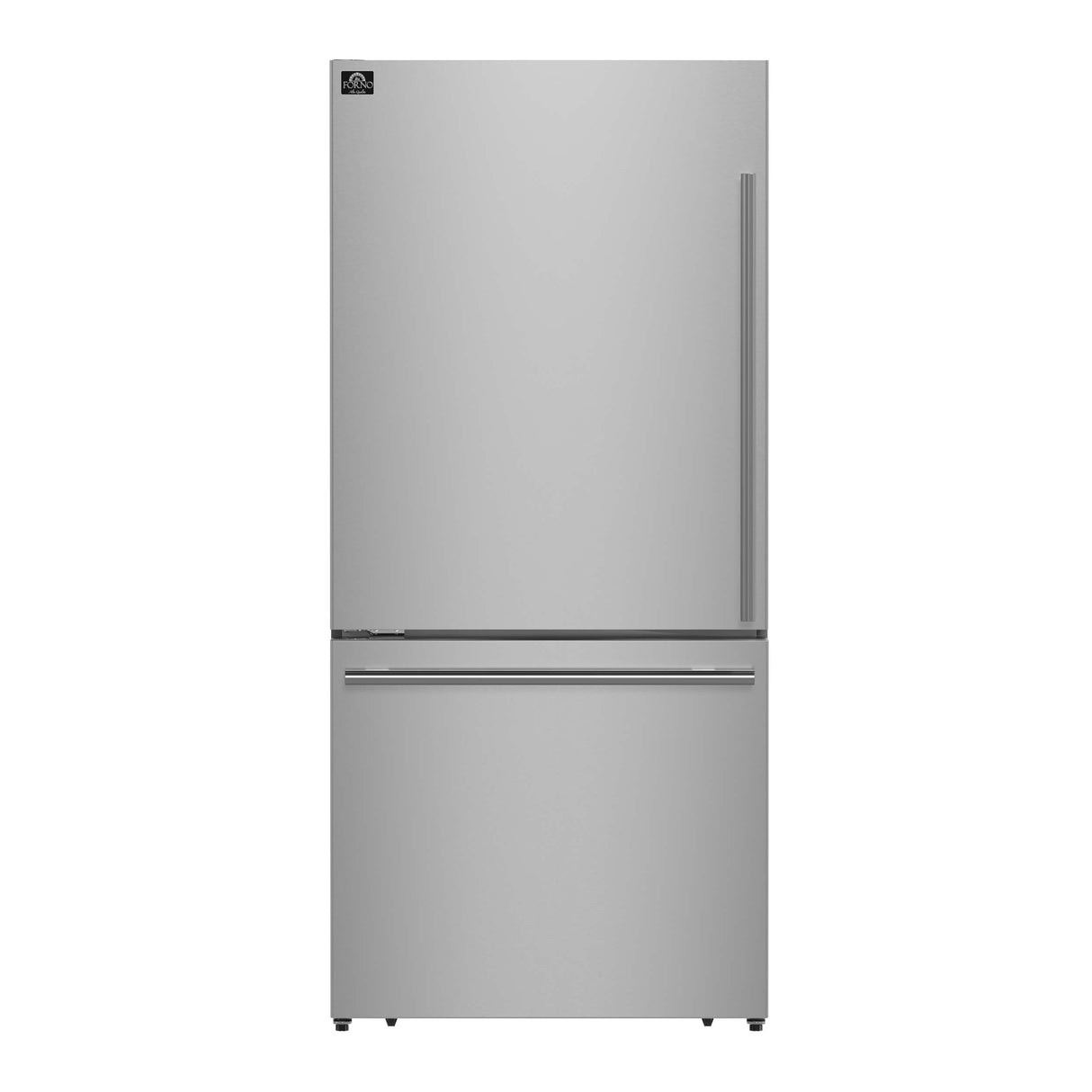

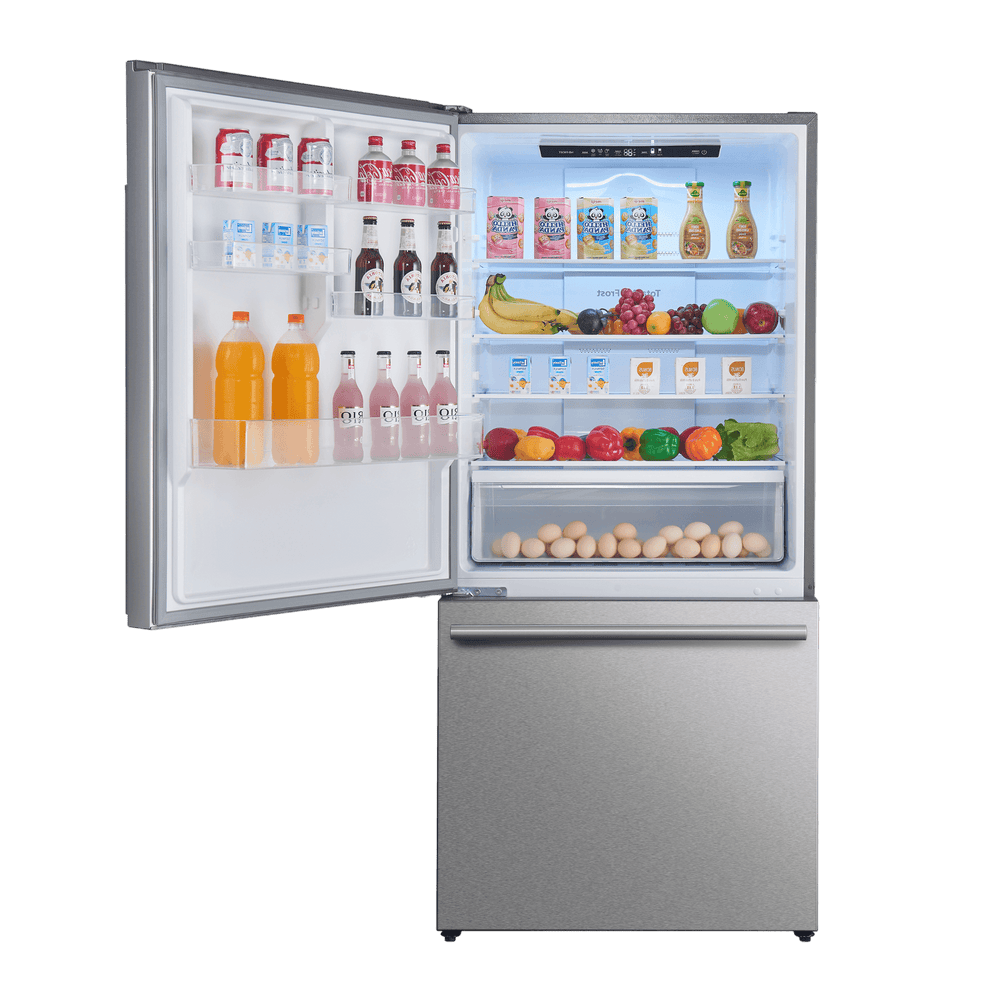

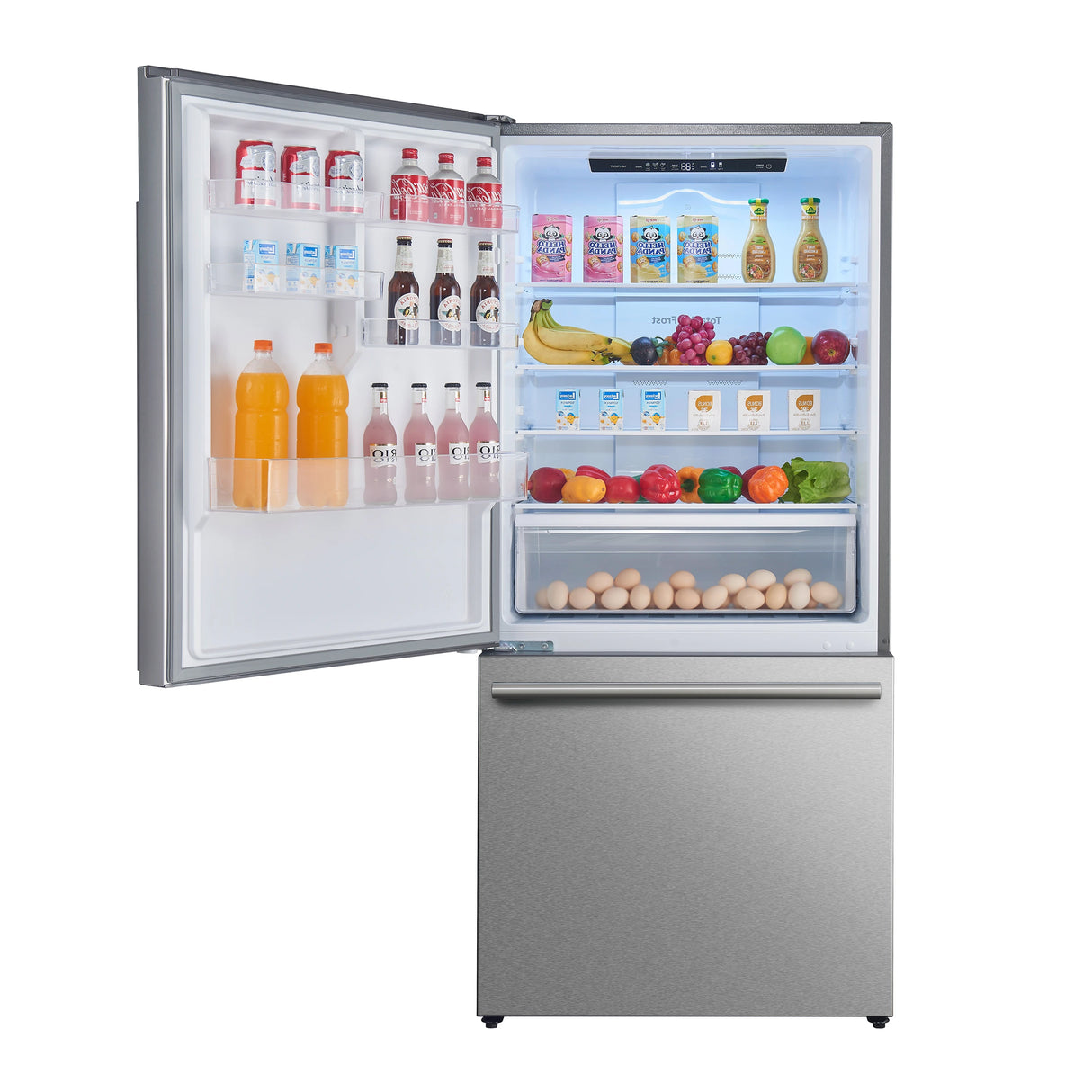

Introducing the FORNO Espresso Milano 31 Inch Bottom Freezer Refrigerator with ice maker, blending style and functionality seamlessly. Its compact 31-inch size and 17.2 cu ft capacity offer ample storage without compromising aesthetics. Two full-width freezer drawers optimize organization, while digital touch control ensures precise temperature settings and real-time monitoring. The fingerprint-resistant VCM door maintains a modern look effortlessly. Swift temperature adjustments with Super Cool and Super Freeze safeguard your groceries' quality. ENERGY STAR Certified for efficiency, and high-efficiency LED lighting reduces food spoilage. Adjustable features, including shelves, door bins, and a full-width crisper drawer, enhance user-friendliness. Upgrade your kitchen with style, convenience, and freshness!

Introducing the FORNO Espresso Milano 31 Inch Bottom Freezer Refrigerator with ice maker, blending style and functionality seamlessly. Its compact 31-inch size and 17.2 cu ft capacity offer ample storage without compromising aesthetics. Two full-width freezer drawers optimize organization, while digital touch control ensures precise temperature settings and real-time monitoring. The fingerprint-resistant VCM door maintains a modern look effortlessly. Swift temperature adjustments with Super Cool and Super Freeze safeguard your groceries' quality. ENERGY STAR Certified for efficiency, and high-efficiency LED lighting reduces food spoilage. Adjustable features, including shelves, door bins, and a full-width crisper drawer, enhance user-friendliness. Upgrade your kitchen with style, convenience, and freshness!

Product Features

Caption/Feature 1
Compact 31" size, 17.2 cu ft capacityideal for kitchen, offering ample storage without compromising style or space.
Caption/Feature 11

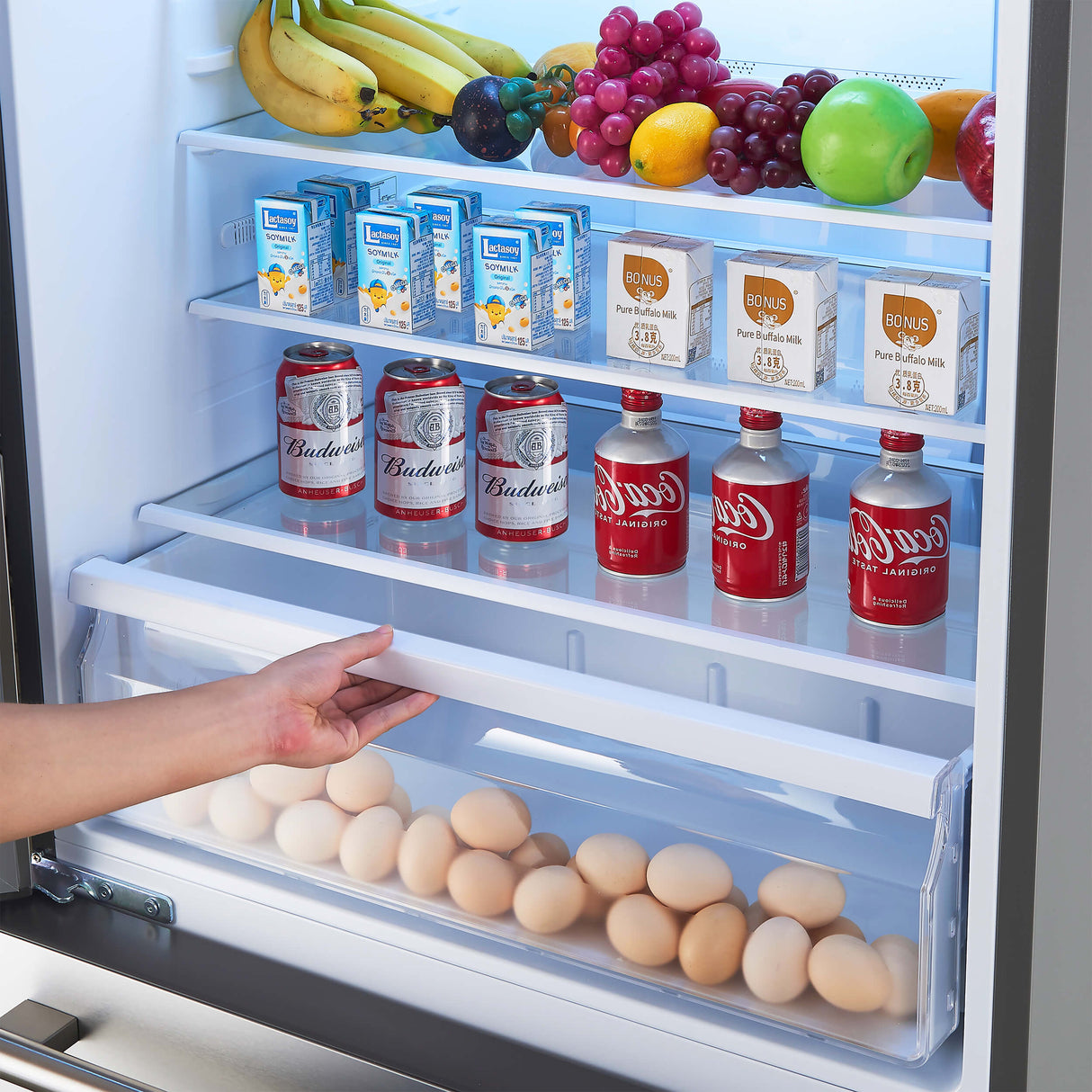

Crisper Drawer - A full-width crisper drawer maintains optimal freshness for a variety of produce
Caption/Feature 2

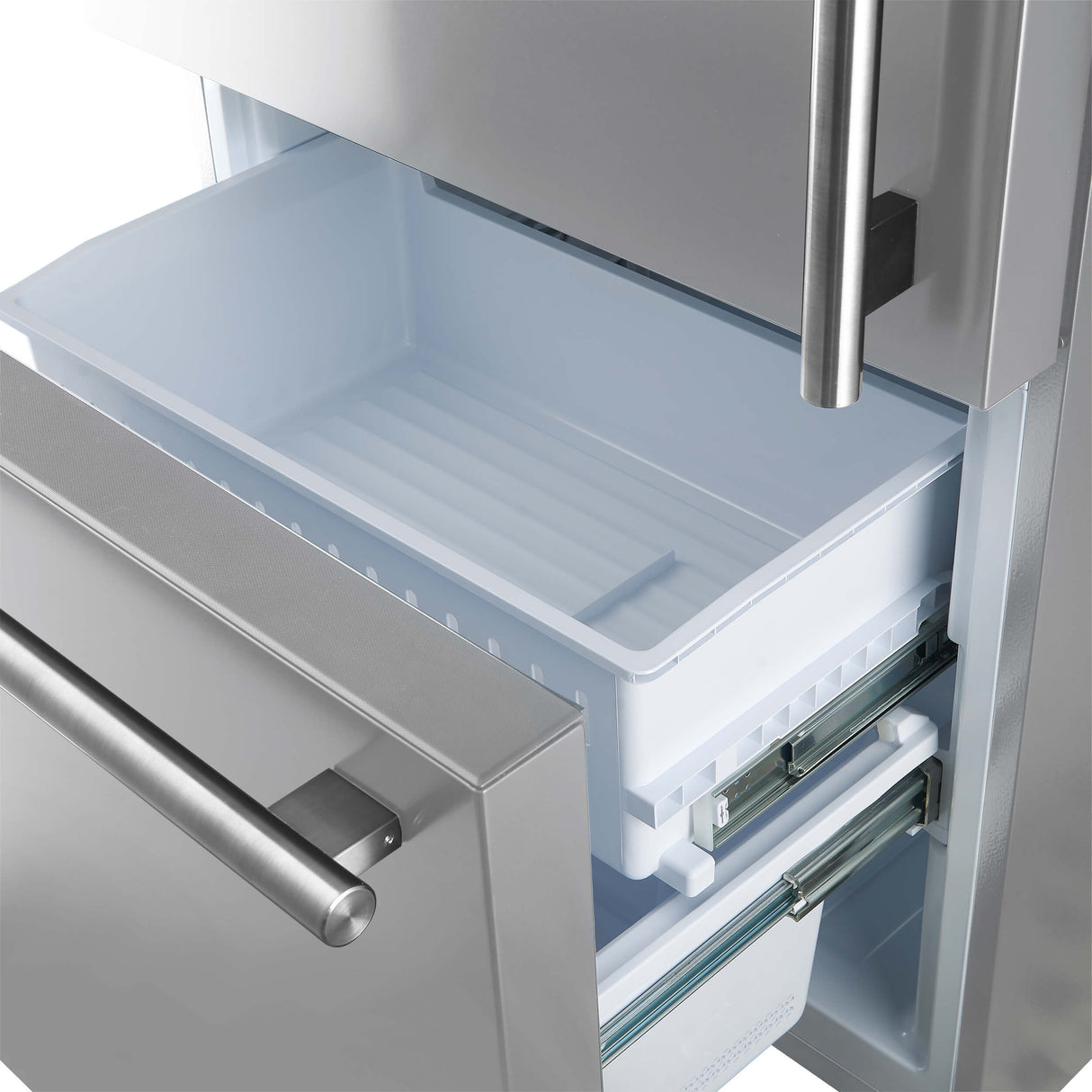

Two full-width freezer drawers optimize organization and accessibility in the bottom freezer design.
Caption/Feature 4
Fingerprint-Resistant - Stainless Steel VCM door blends style, durability, and easy maintenance, effectively repelling most of fingerprints, and stains for a pristine and modern appearance.
Caption/Feature 6
ENERGY STAR Certified - Not only puts more money back in your pocket but also contributes to a greener planet.
Caption/Feature 8

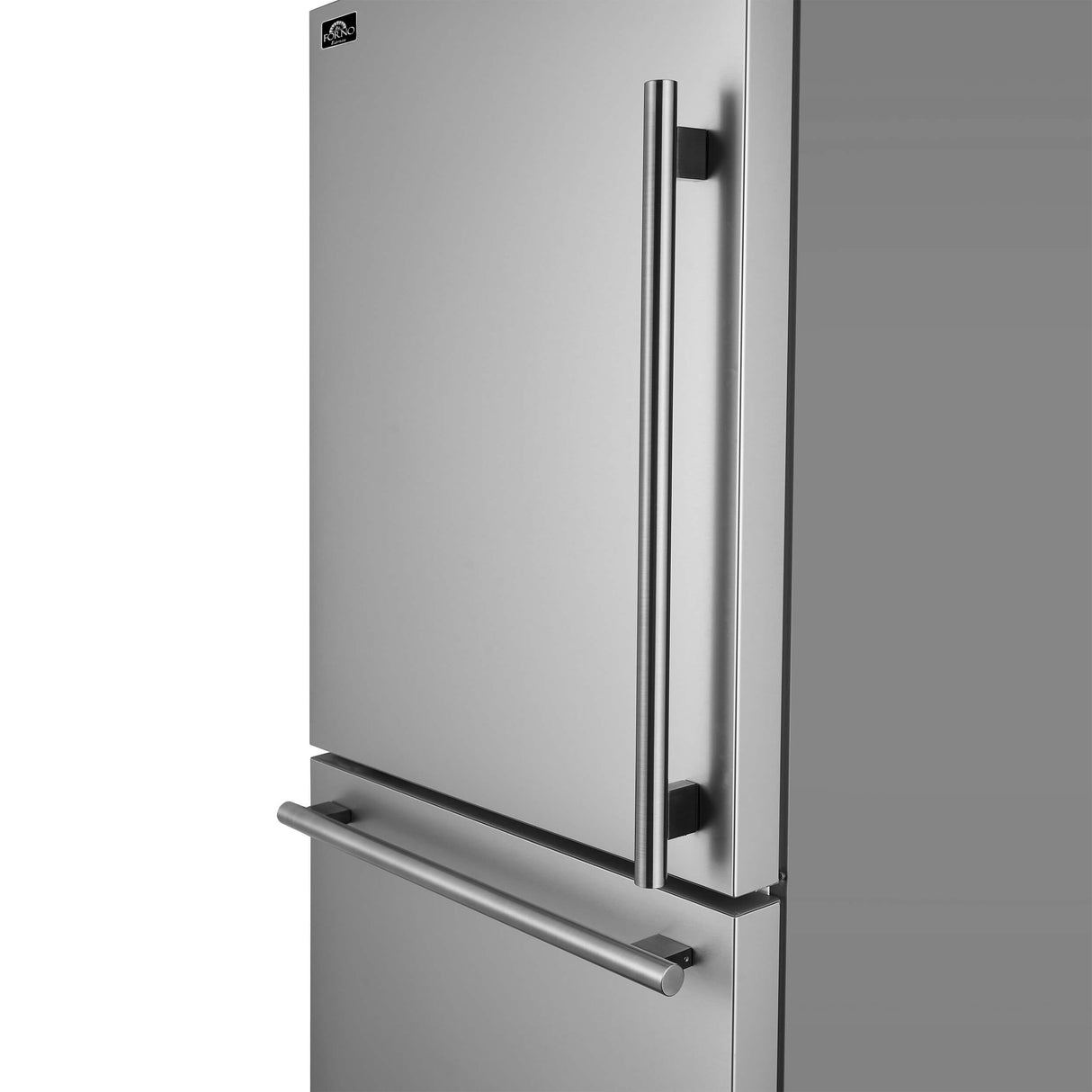

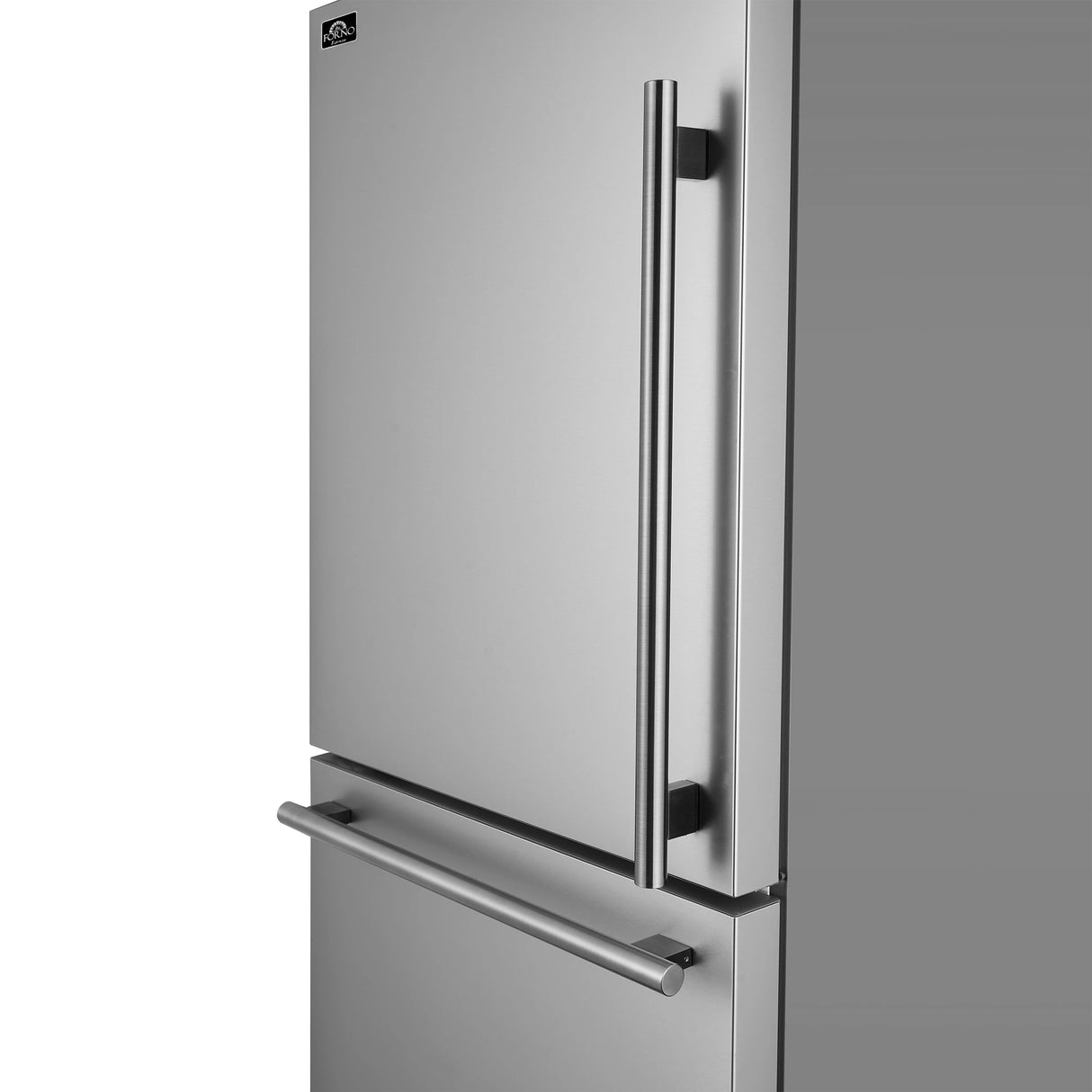

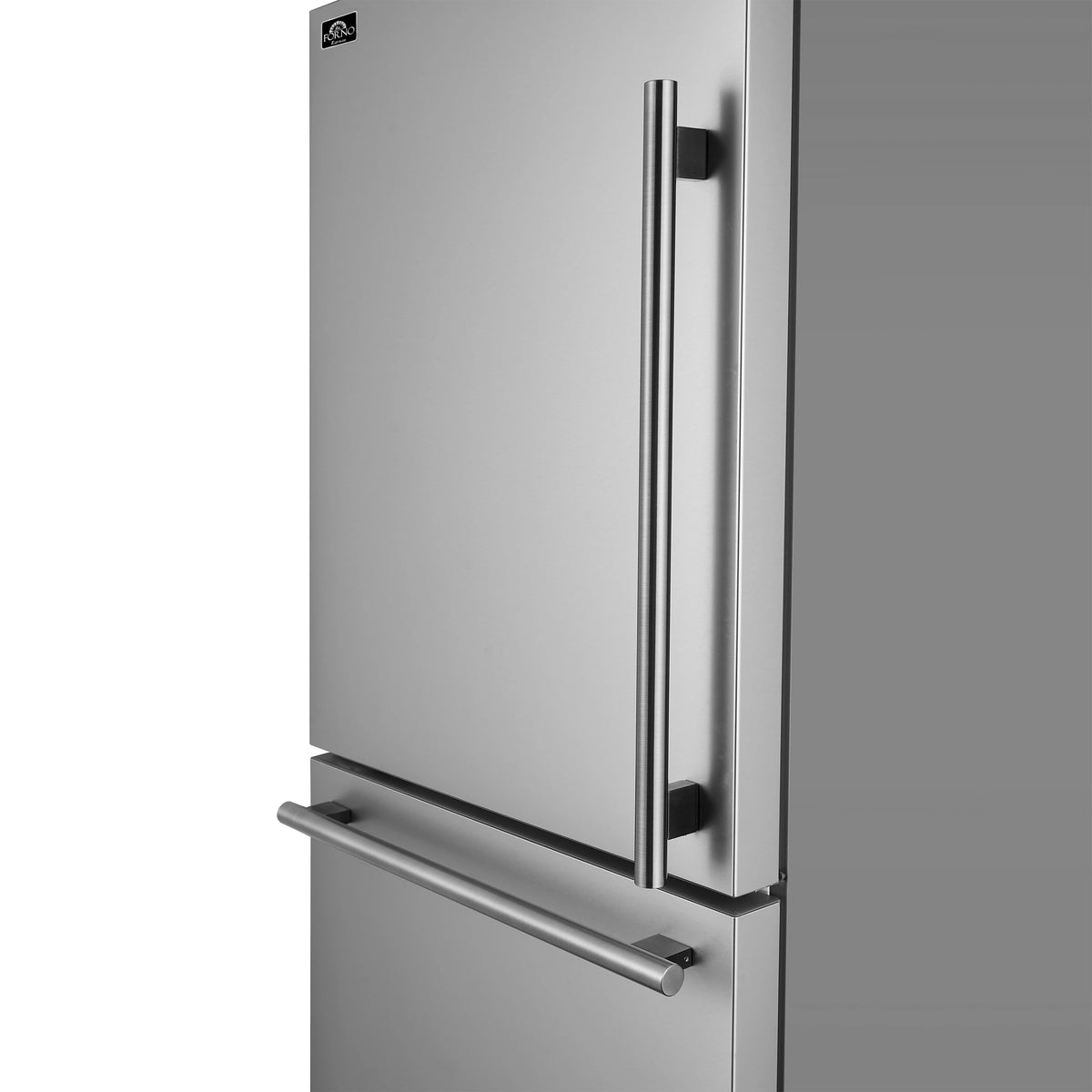

Stainless Steel Handles - Offers an extra touch of elegance, allowing you to transform the appearance of your kitchen.
Bullet Point 1
Compact 31" size, 17.2 cu ft capacity
Bullet Point 3
Digital touch control sets precise temperatures
Bullet Point 5
Super Cool and Super Freeze function
Caption/Feature 10
Four half-width bins to accommodate items of different heights and sizes.
Caption/Feature 12

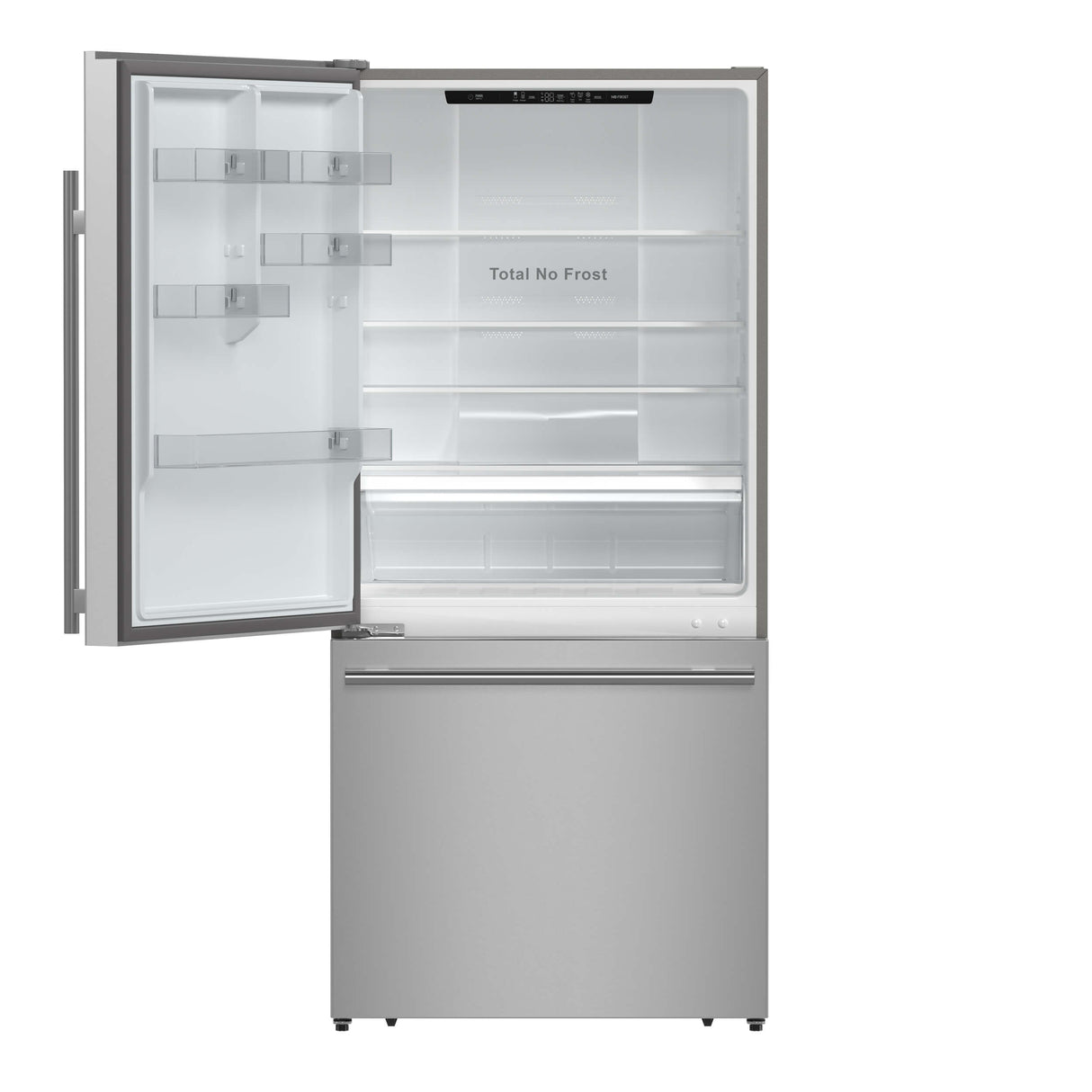

Adjustable Shelves - Offer customizable storage, allowing you to efficiently utilize space and access items with ease.
Caption/Feature 3

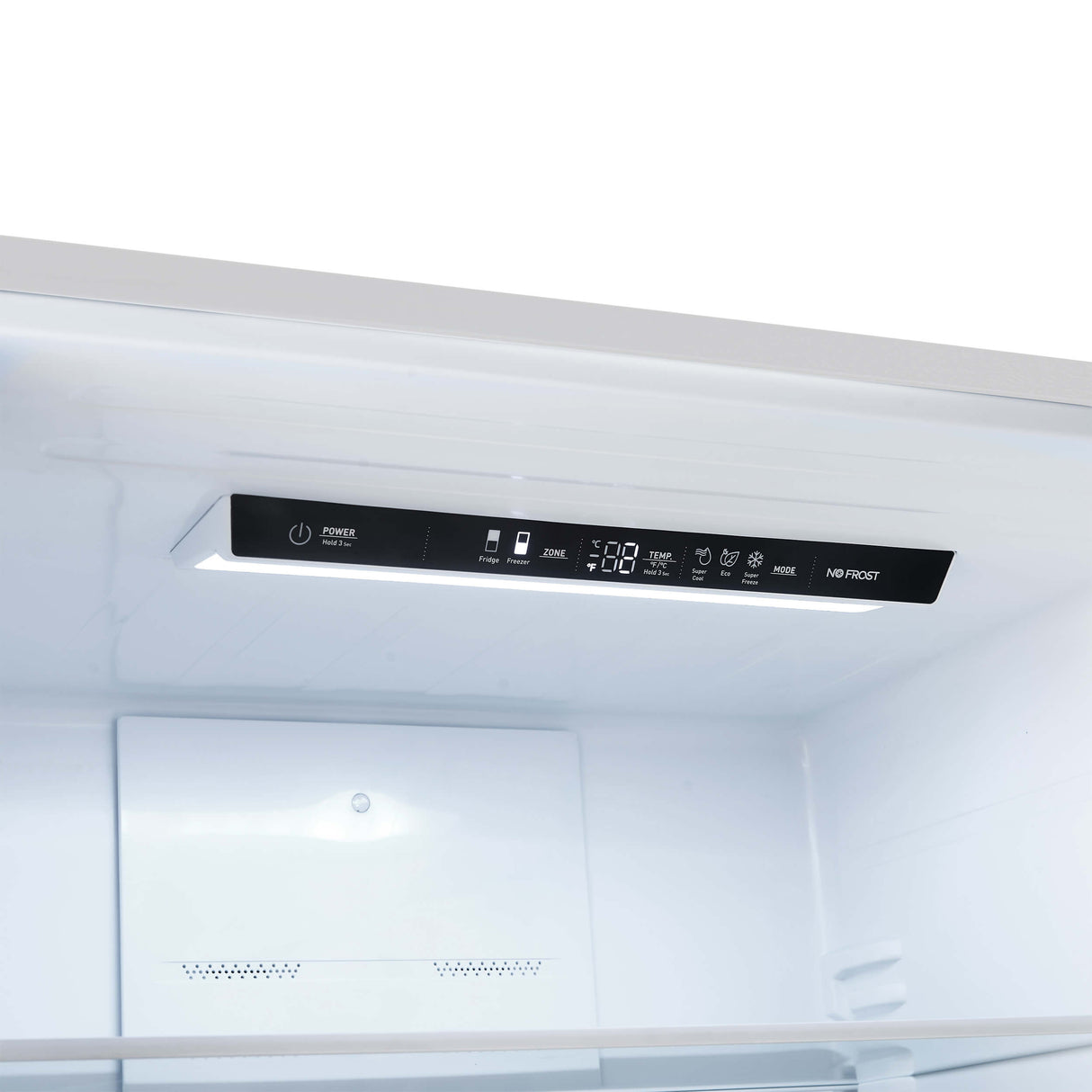

Digital touch control sets precise temperatures, provides real-time data, and alerts for maintaining fresh, safe food storage.
Caption/Feature 5
Super Cool and Super Freeze swiftly reach ideal storage temperatures, keeping grocery quality and freshness effectively.
Caption/Feature 7
LED Light - High-efficiency LED lighting ensures bright, uniform illumination for easy visibility, minimizing food spoilage.
Caption/Feature 9

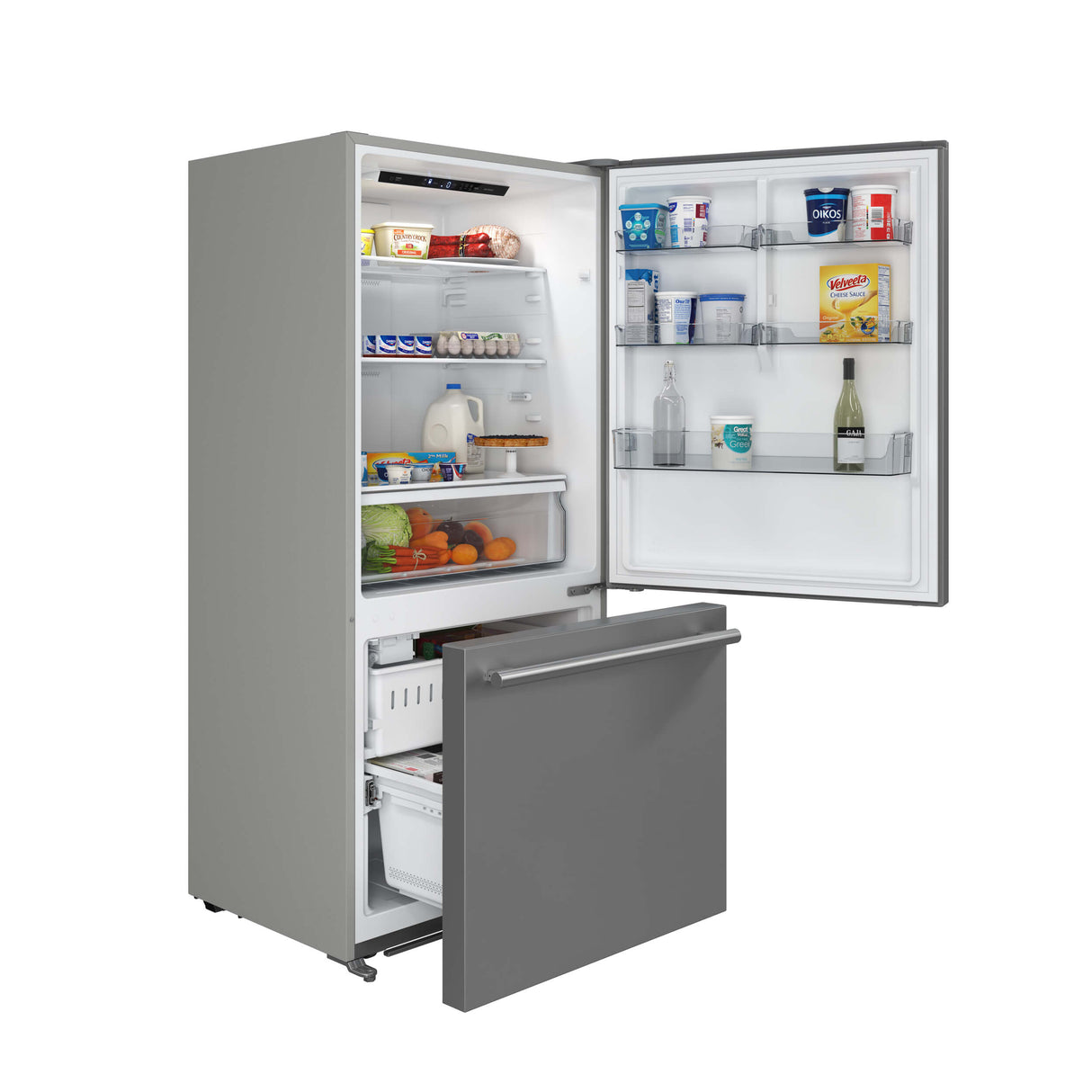

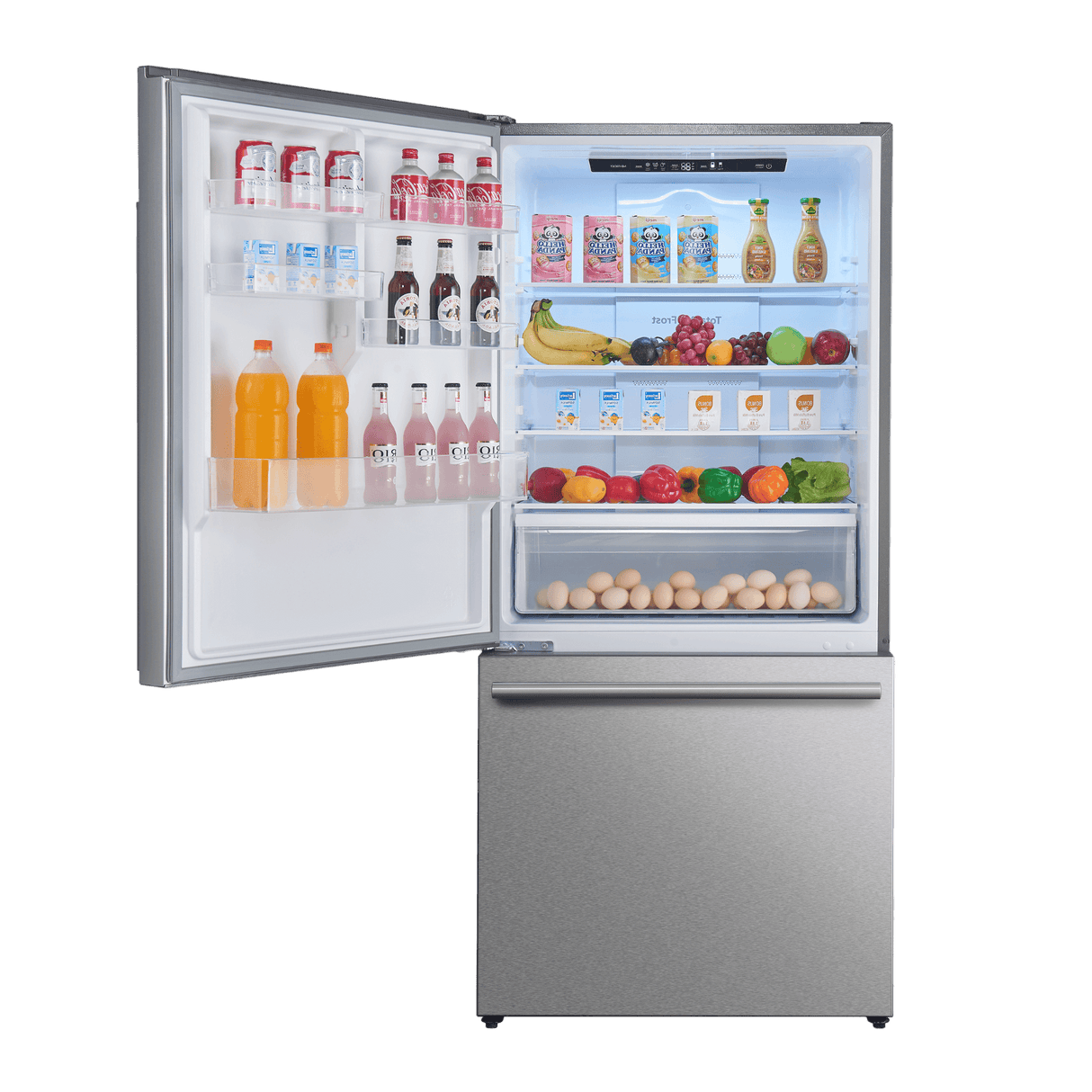

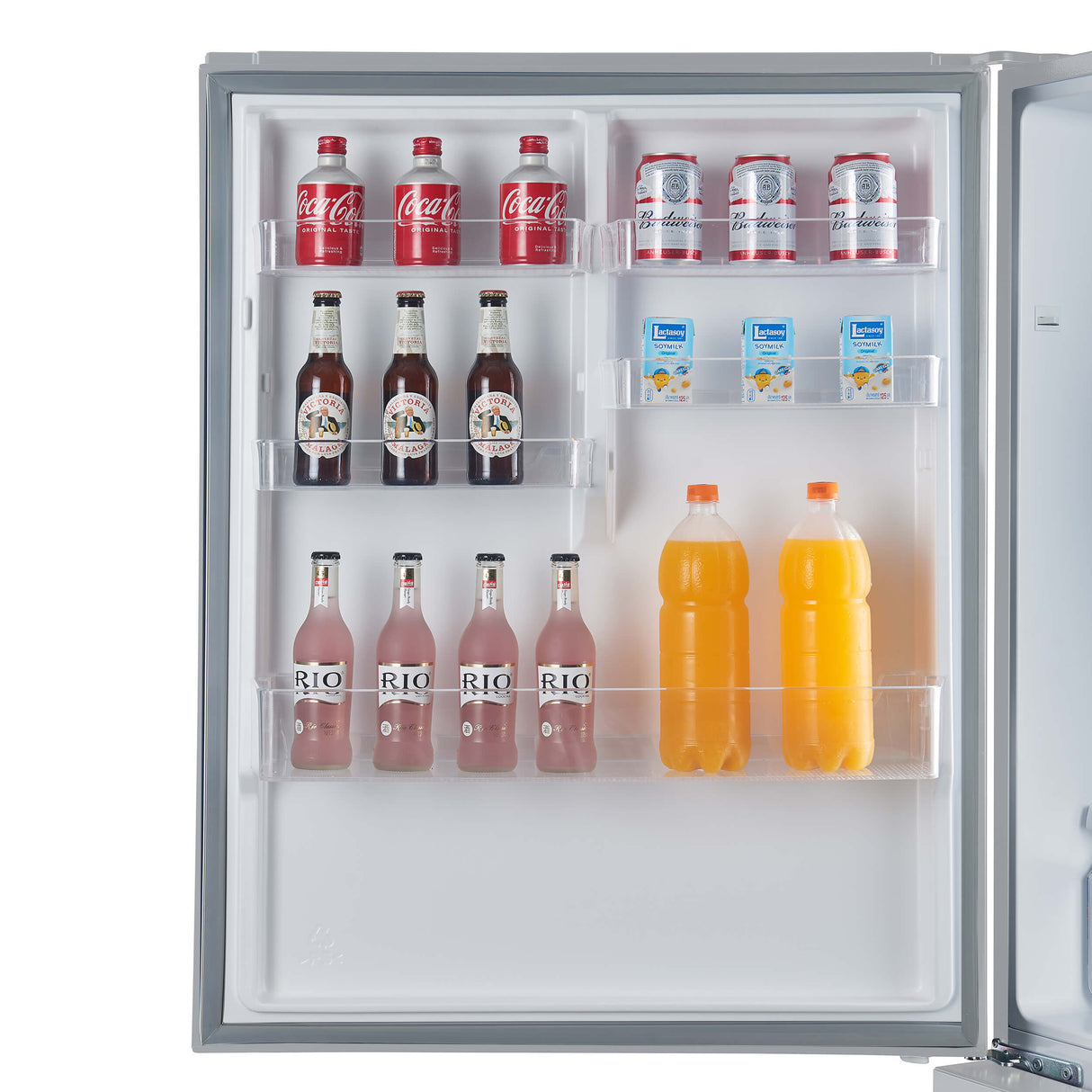

Full-width gallon door storage optimizes space for easy access to large containers, freeing up main compartment shelf space.
Bullet Point 2
2 full-width freezer drawers optimize organization
Bullet Point 4
Automatic ice maker
Bullet Point 6
Stainless-steel door finish

Product Specifications

Dimensions & Weight

Width -
Height -
Length -
Weight -
Overall Height - Top to Bottom (in) 69.1
Overall Width - Side to Side (in) 31.1
Overall Depth - Front to Back (in) 29.2
Cutout Width - Side to Side (in) 33.7
Cutout Height - Top to Bottom (in) 70.1
Cutout Depth - Front to Back (in) 31.2
Overall Product Weight (lbs) 196
Depth with door open 90° (in) 56.3

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes 1
Shipping Width -
Shipping Height -
Shipping Length -
Shipping Weight -
Total of Shipping Weight -
Source Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement -
Dimensional Weight -
Total of Cubes -
Total of Dimensional Weight -

Header

Model Number FFFFD1786-31S
Brand Name FORNO
Product UPC 686136917360
Market CANADA,USA
Collection Name Espresso
Serie's Name Milano
Product Name (Short & Sweet) < 36 Characters Milano Espresso 31" Stainless with I
Product Description (more detailed) <= 100 characters 31" Milano Espresso Bottom Freezer Stainless Steel, 17.2 cu.ft. with Ice Maker
Product Description (more detailed) > 100 characters Forno Milano Espresso 31-Inch Bottom Freezer with Ice Maker, Left Swing Door Refrigerator in Stainless Steel, 17.2 cu. ft.

Technical Information

Color/Finish Stainless Steel VCM
Control Location Internal
Primary Material Steel
Number of pallet 1
NSF/ANSI/CAN 372 Certified Yes
Energy Star Most Efficient No
Minimum Top Clearance (IN) 1.00
Sides Clearance - On Each Sides (IN) 1.50
Height Top of Door Hinge (inches) 69.10
Depth Drawer(s) Open (inches) 43.4
Number of Power Cord 1
Estimated Annual Operating Cost (USD) 75
Power Consumption Defrost Wattage (W) 220
Temperature Range Freezer (°C) -24°C to-14°C
Freezer door storage No
Freezer tray Dimensions WxDxH N/A
Ice Bin Size WxDxH 9.37X13.33X6.30
Upper Freezer Drawer(s)/Basket Size WxDxH 24.84X14.96X7.95
Number of Freezer Drawers 0
Interior Freezer Dimensions Depth 16.00
Interior Freezer Dimensions W x D x H (in) 24.45x16.00x22.68
Freezer Door Style Pull-Out Drawer
Temperature Range Refrigerator (°C) 1°C to 7°C
Door Bins Material Plastic
Standard Door Bins Size WxDxH 13.3x5.59x1.97
Gallon (4 Liters) Door Bin(s) Size WxDxH 26.8x5.6x3.5
Adjustable Door Storage Yes
Fresh Food Door Type Swing Door
Number of Adjustable Shelves 3
Fresh Food Shelves Material Glass
Fresh Food drawer(s) Size WxDxH 26.6 x 15.7 x 7.8
Temperature Controlled Drawer(s) No
Interior Fresh Food Dimensions Height 35.91
Interior Fresh Food Dimensions Width 26.81
Fresh Food Capacity Cu. Ft. 12.10
Cooling Type Multi Air Flow
Noise Level (dBA) 43.00
Fast Cool Function Yes
Energy Saver Mode Yes
Cabinet Color Gray
Door Liner Color White
Door Texture Smooth
Pantry Drawer No
Electronic Temperature Control Yes
External Dispenser No
Dispenser Type No Water/Ice Dispenser
Daily Ice Production (lbs) 3.00
Automatic Ice Level Control Yes
Ice Type Cubed
Flat back design Yes
LTL or Parcel LTL
Handle Color/Finish Antique Brass,Stainless Steel
Interior Light Yes
Clock No
Interior Light(s) Type LED
CEE Tier Qualified Not Rated
NSF/ANSI 61 Certified Yes
ENERGY STAR Unique ID 3388138
Minimum Back Clearance (IN) 2.00
Height Top of the Cabinet/Case (inches) 68.50
Height Top of the Door (inches) 69.10
Cabinet Depth (no Door) 23.60

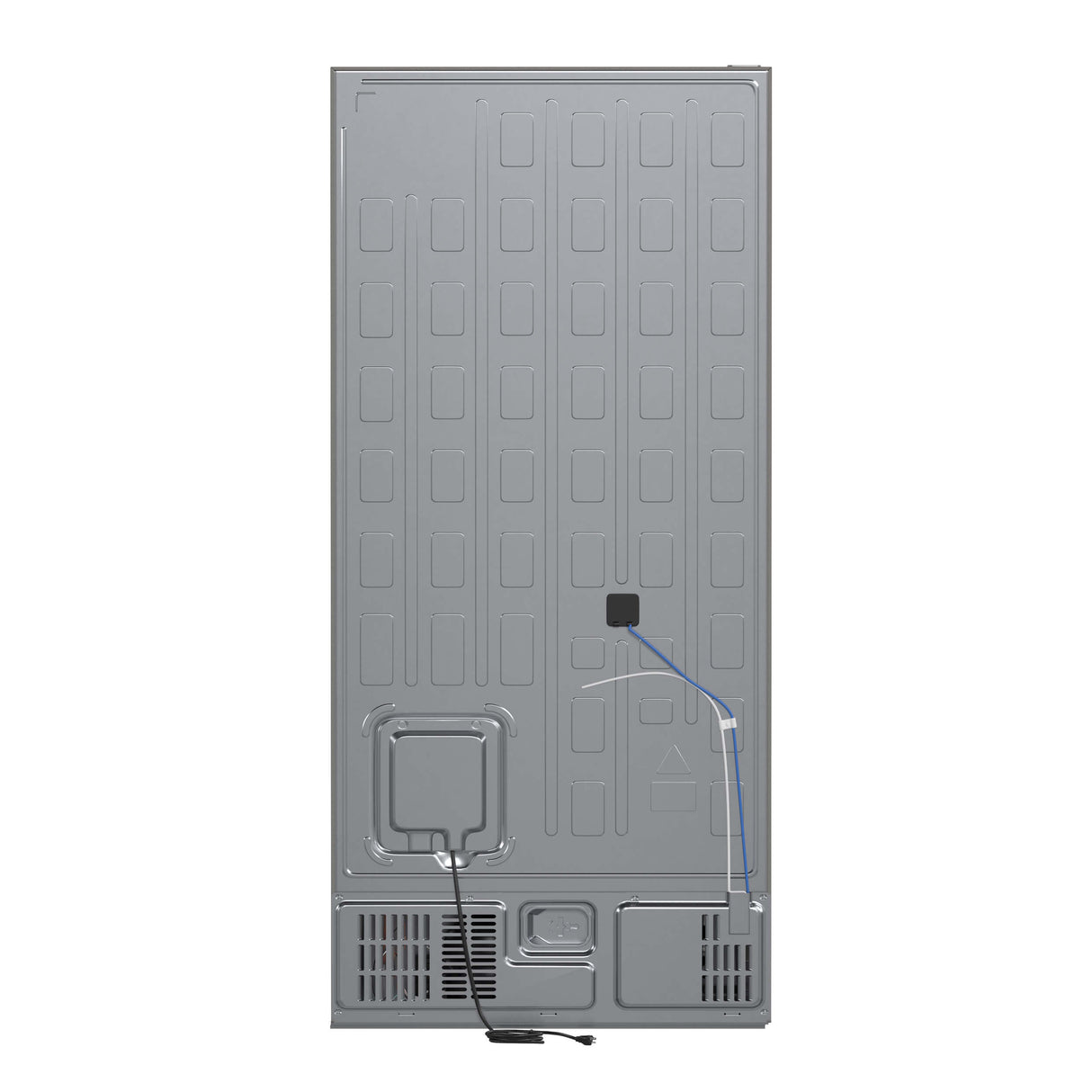

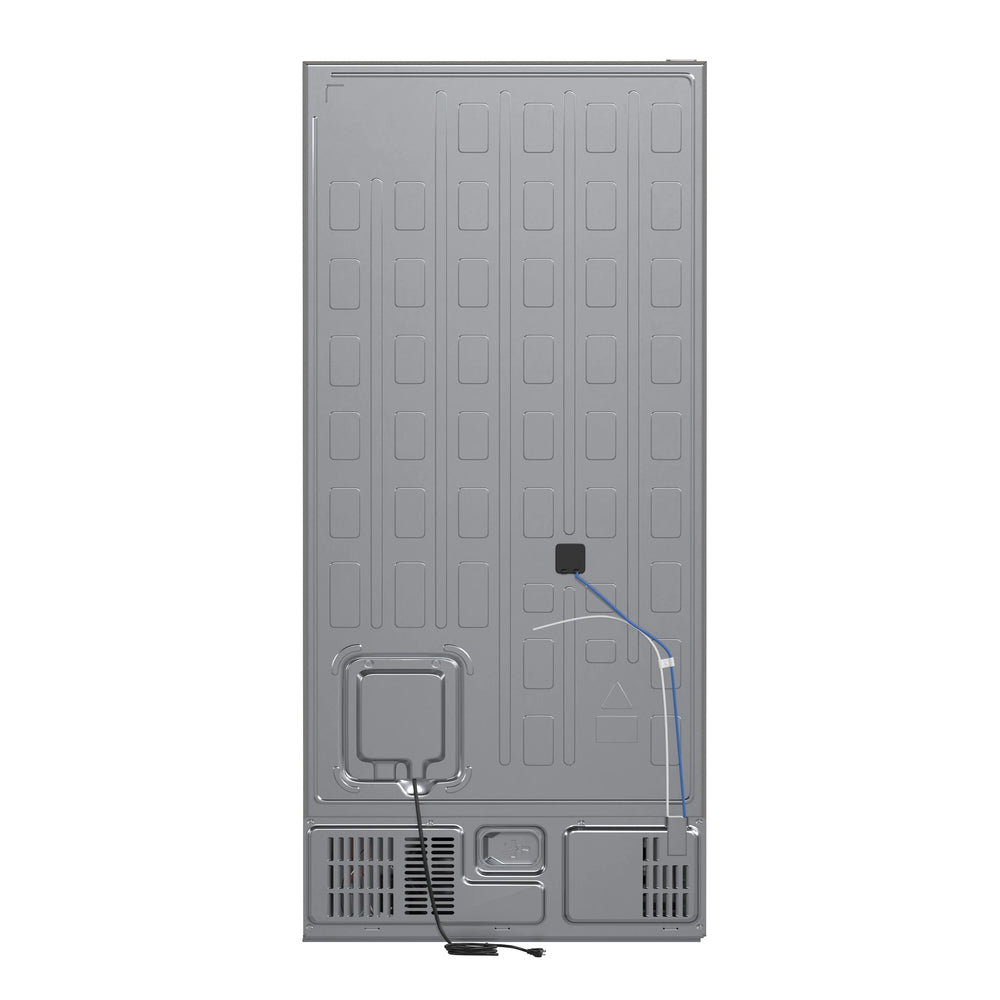

Power Cord Location Lower Back
Energy Consumption (kWh/yr) 537
Power Consumption Cooling Wattage (W) 80
Temperature Range Freezer (°F) -11°F to 7°F
Freezer Section Layout Removable Ice Bin,Freezer Drawers,Full Width
Extra Freezer Tray No
Lower Freezer Drawer(s)/Basket Size WxDxH 25.7x14.78x11.38
Number of Freezer Basket 2
Interior Freezer Dimensions Height 22.68
Interior Freezer Dimensions Width 24.45
Freezer Light Yes
Freezer Capacity 5.10
Temperature Range Refrigerator (°F) 34°F to 44°F
Door Bins Color Transparent
Number of Standard Door Bins 4
Number of Gallon (4 Liters) Door Bins 1
Door Storage Yes
Fresh Food Shelve(s) Size WxDxH 26.7x14.3x0.37
Adjustable Fresh Food Shelves Yes
Number of Fresh Food Shelves 4
Humidity Controleld Drawer(s) No
Number of Fresh Food drawers 1
Interior Fresh Food Dimensions Depth 21.08
Interior Fresh Food Dimensions W x D x H (inches) 26.81x21.08x35.91
Dual Evaporator Cooling System No
Toe Grille Color No Toe Grille
Water Pipe Included Yes
Extra Water Filter No
See-Thru Door No
Fast Freeze Function Yes
Air Filtration No
Cabinet Material Embossed Galvanized Steel
Door Liner Material High Impact Polystyrene
Door Style Contoured
Spill-Proof Shelves No
Temperature Memory Function Yes
Water Dispenser No
Filtered Ice No

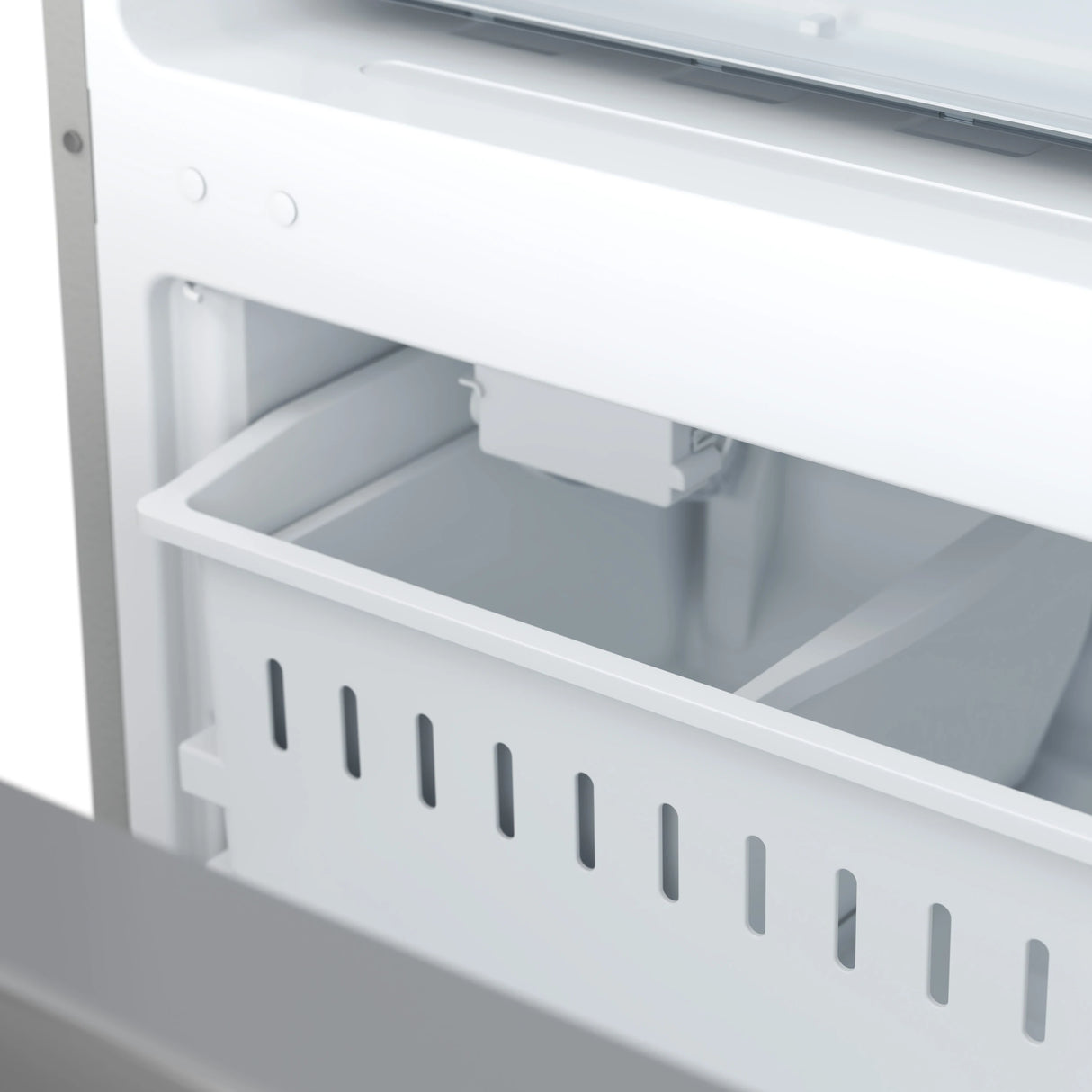

Removable Ice Bucket Yes
Ice Maker Type Single
Ice Maker Yes
Overall Capacity Cu. Ft. 17.20
Fingerprint-Resistant No

General Product Weight & Dimensions

Product Overall Weight (lbs) 196.00
Depth with Door Open 90 (IN) 56.3
Height Top of the Door (inches) 69.10
Height Top of the Cabinet/Case (inches) 68.50
Interior Fresh Food Dimensions W x D x H (inches) 26.81x21.08x35.91

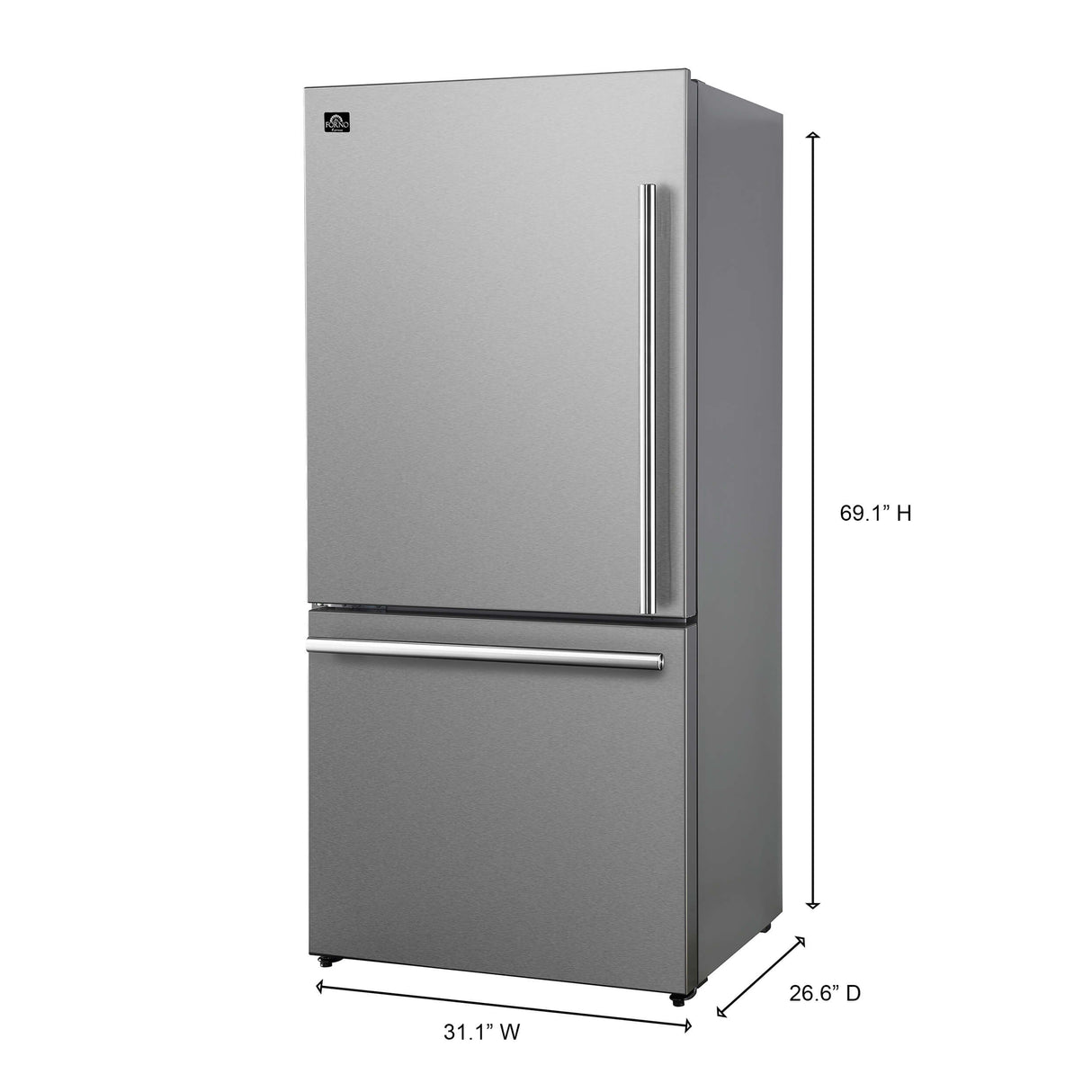

Product Dimensions W x D x H (inches) 31.1 x 29.2 x 69.1
Cutout dimensions W x D x H (inch) 33.7x31.2x70.1
Product Depth With Handle (IN) 29.2
Depth Drawer(s) Open (inches) 43.4
Height Top of Door Hinge (inches) 69.10
Interior Freezer Dimensions W x D x H (in) 24.45x16.00x22.68

Certification

Energy Star Certified Yes
NSF/ANSI 61 Certified Yes
NSF/ANSI/CAN 372 Certified Yes
CEE Tier Qualified Not Rated
Safety Listing cULus
ENERGY STAR Unique ID 3388138
Energy Policy Act 1992 Compliant Yes
Title 20 - California Regulation Yes
ISTA 6A Yes
ADA Compliant No
TAA Compliant No
UPLR Compliant NO

Warranty

Commercial Warranty No
Warranty on Parts 2 Years
Warranty Script (English) Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances
Warranty Type Limited
Warranty on Labor 2 Years
Warranty Length (Years) 2-year

Shipping

Shipping Method LTL
Shipping Depth Box 1 (with pallet) 48
Shipping Width Box 1 (with pallet) 40
Needs to be shipped on a pallet Yes
Shipping Weight Box 1 (Carton Weight + 35 lbs) 249
Shipping Height Box 1 (Height carton + 6-inch of the pallet) 77.6

Certifications

California Prop 65
