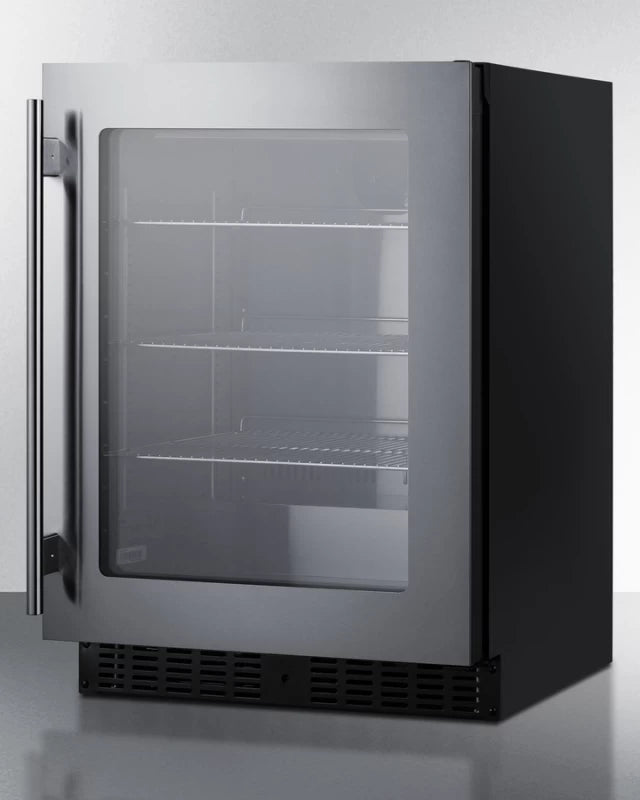

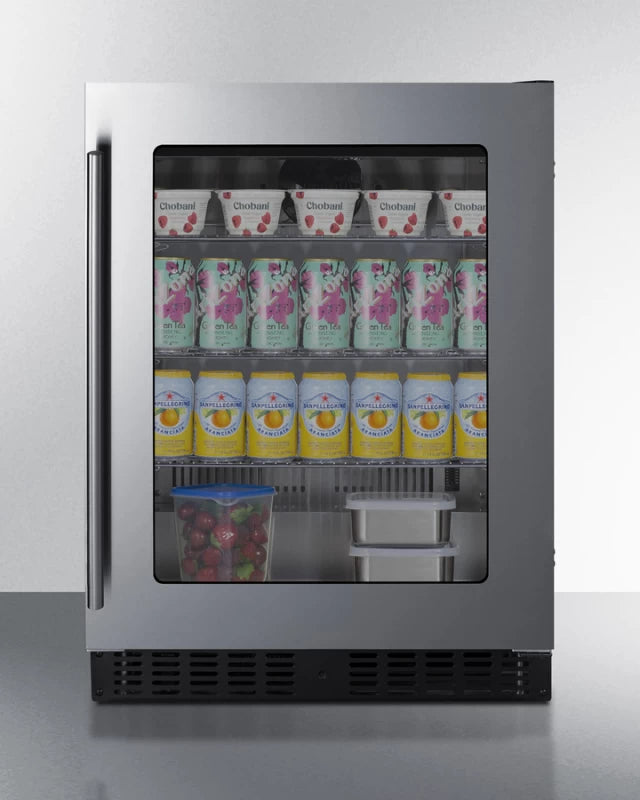

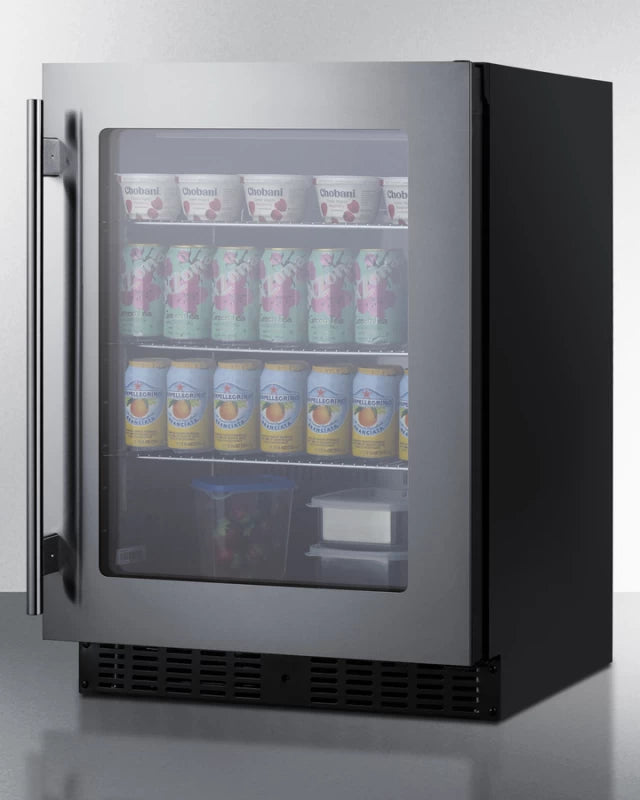

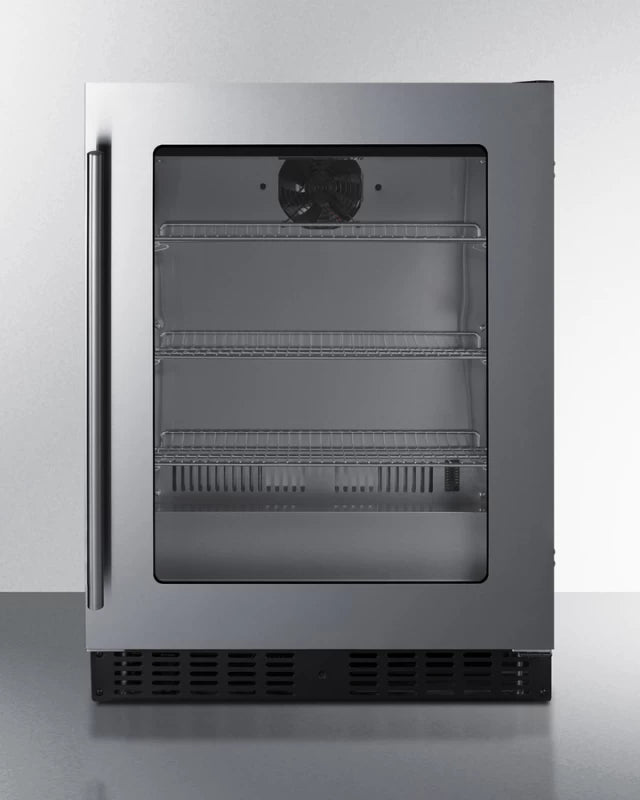

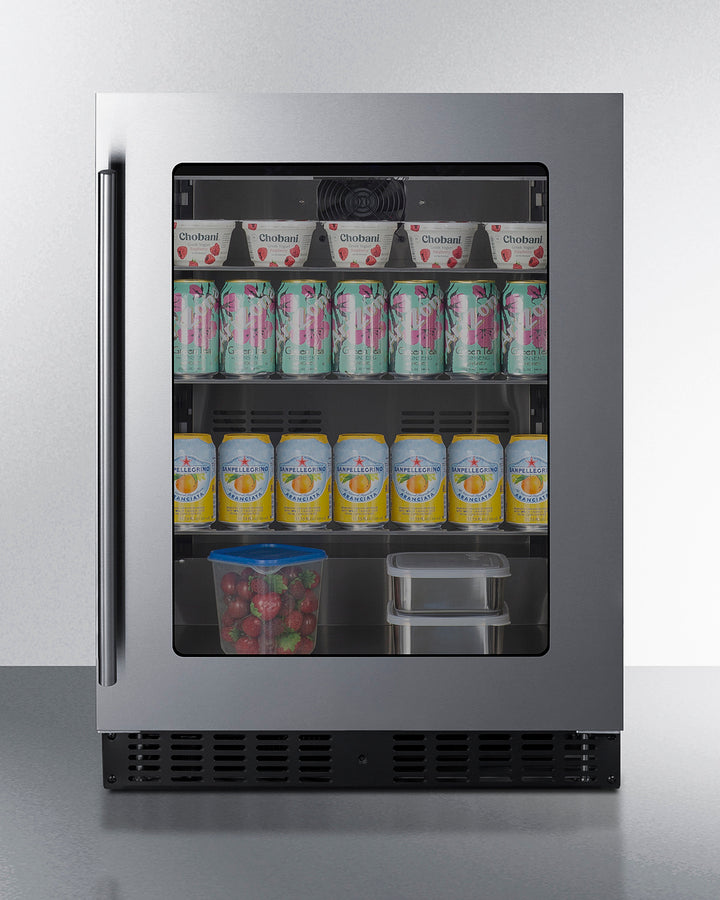

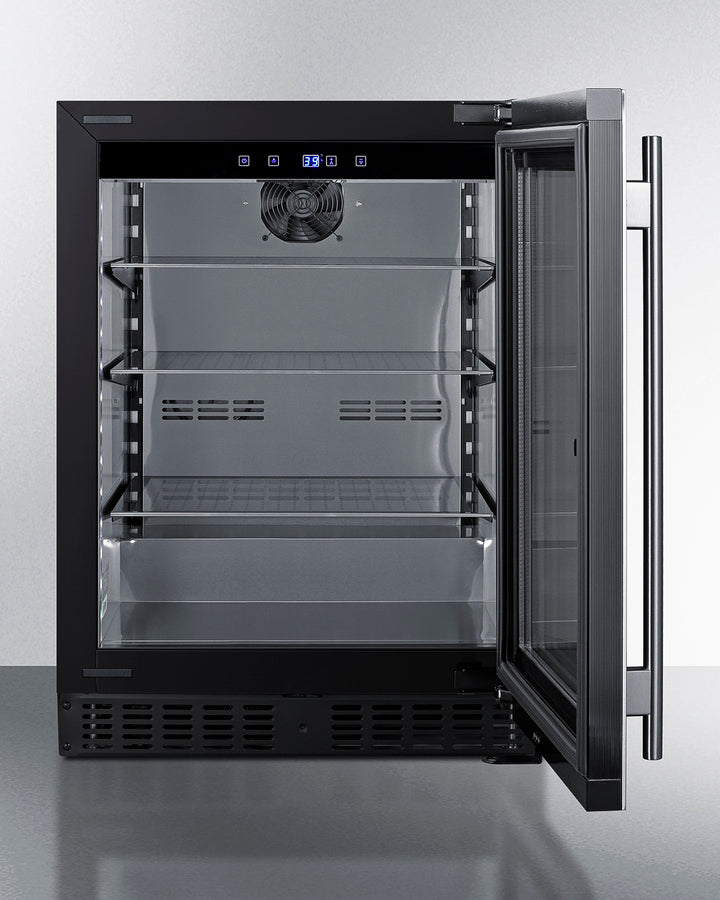

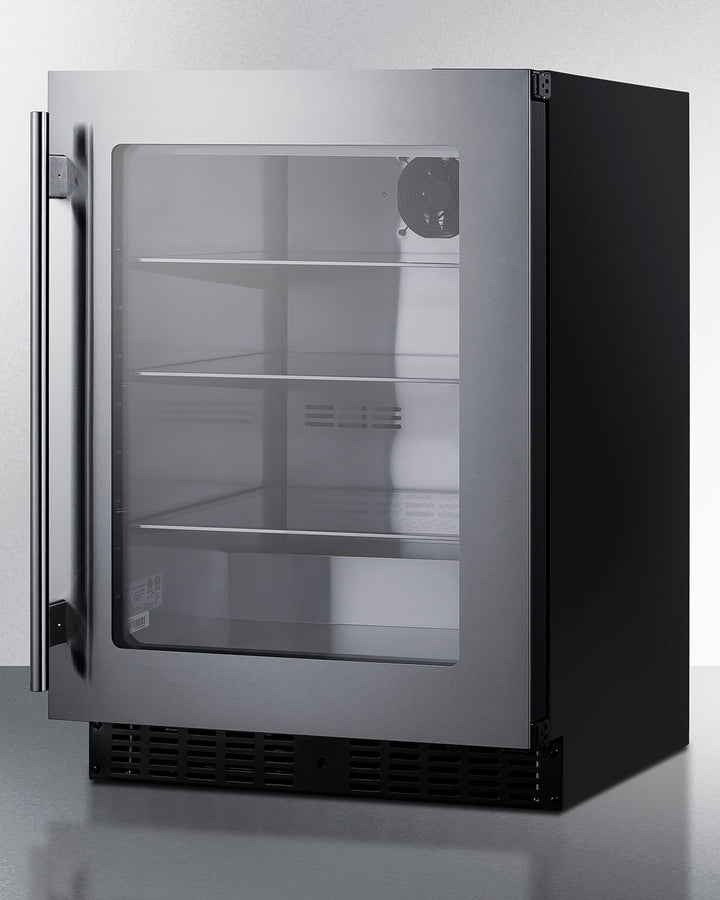

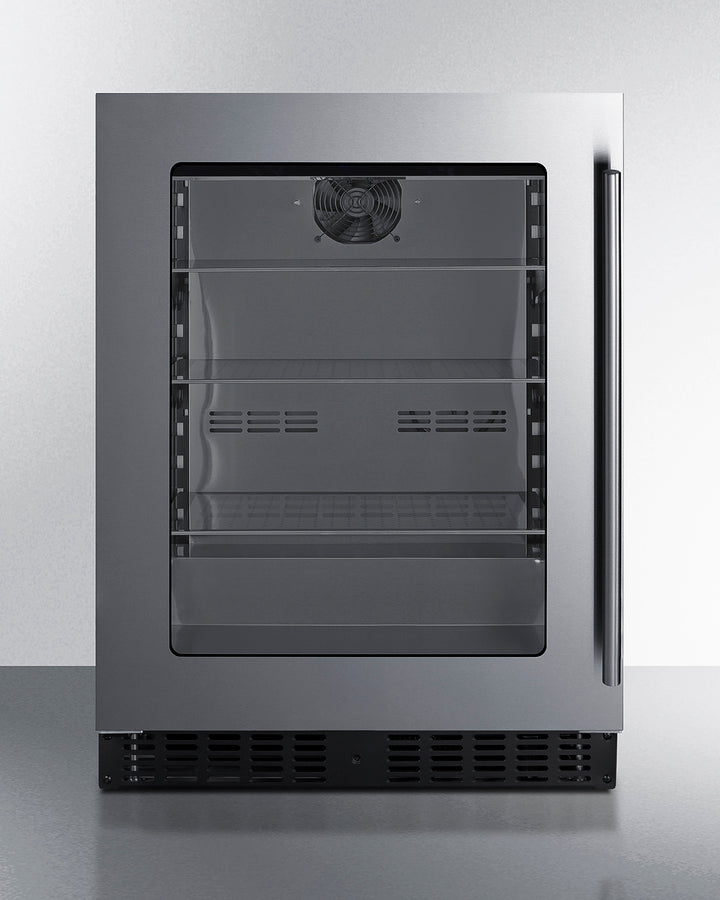

SUMMIT 24" Wide Built-In Beverage Center, ADA Compliant - Stainless Steel (ASDG2411)
UPC: 761101079455
SUMMIT 24" Wide Built-In Beverage Center, ADA Compliant - Stainless Steel (ASDG2411) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ ADA compliant design
- ✔ 24" wide beverage center
- ✔ Less than 18" deep
- ✔ Built-in capable
- ✔ Stainless steel interior
- ✔ Double pane tempered glass door
- ✔ Adjustable height
- ✔ Seamless stainless steel door trim
- ✔ Factory installed lock

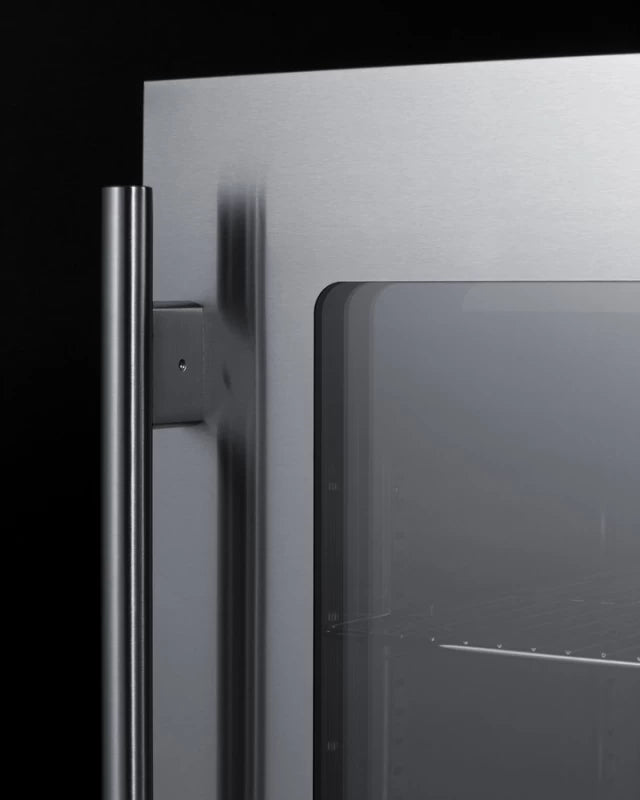

- ✔ Professional handle
- ✔ Digital thermostat

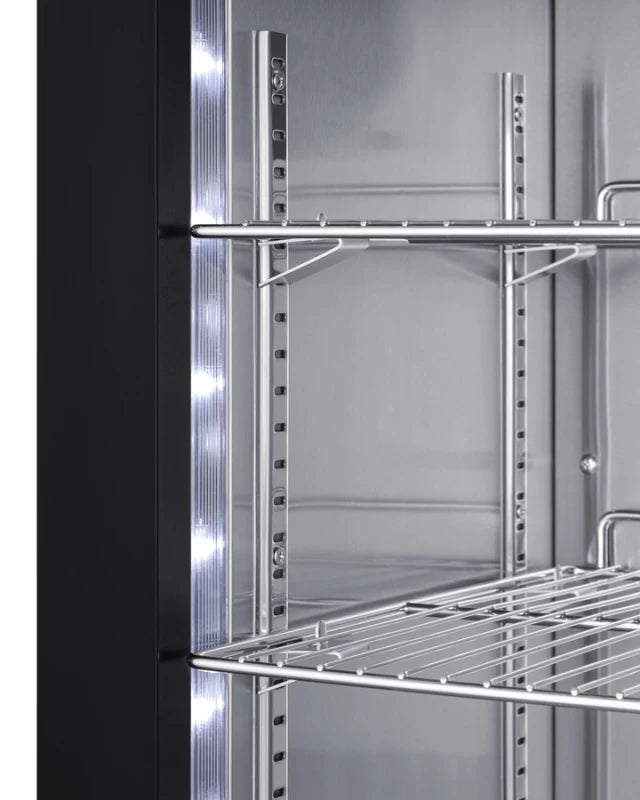

- ✔ Dimmable LED lighting
- ✔ Frost-free operation
- ✔ Internal fan

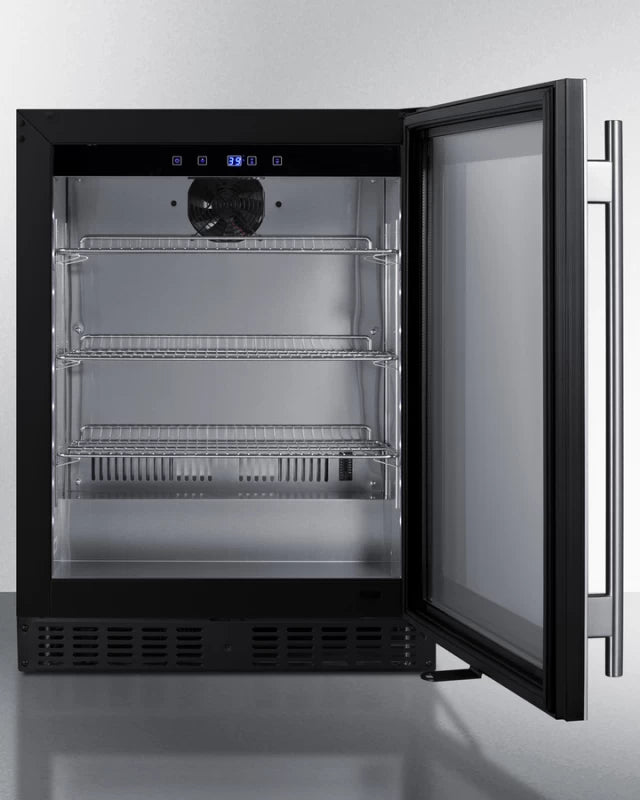

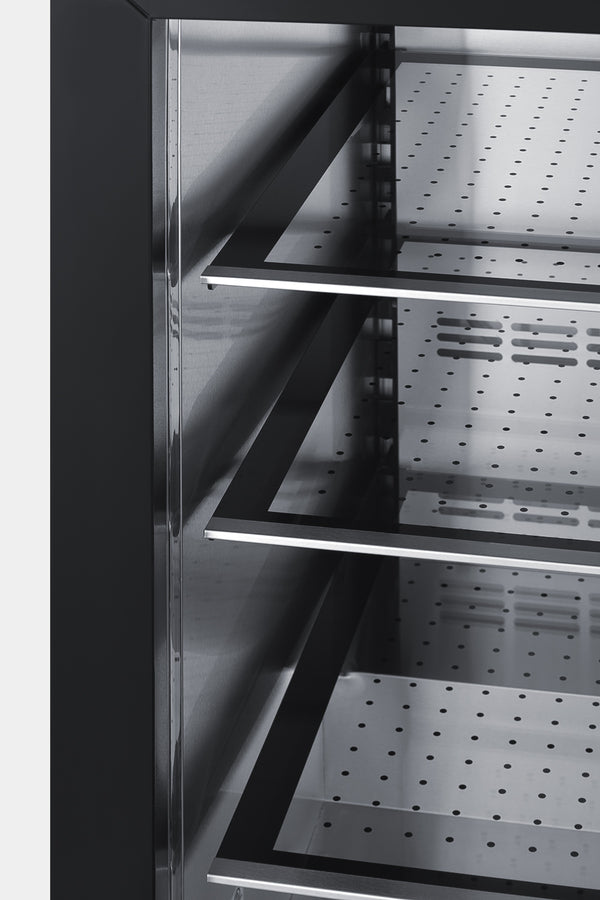

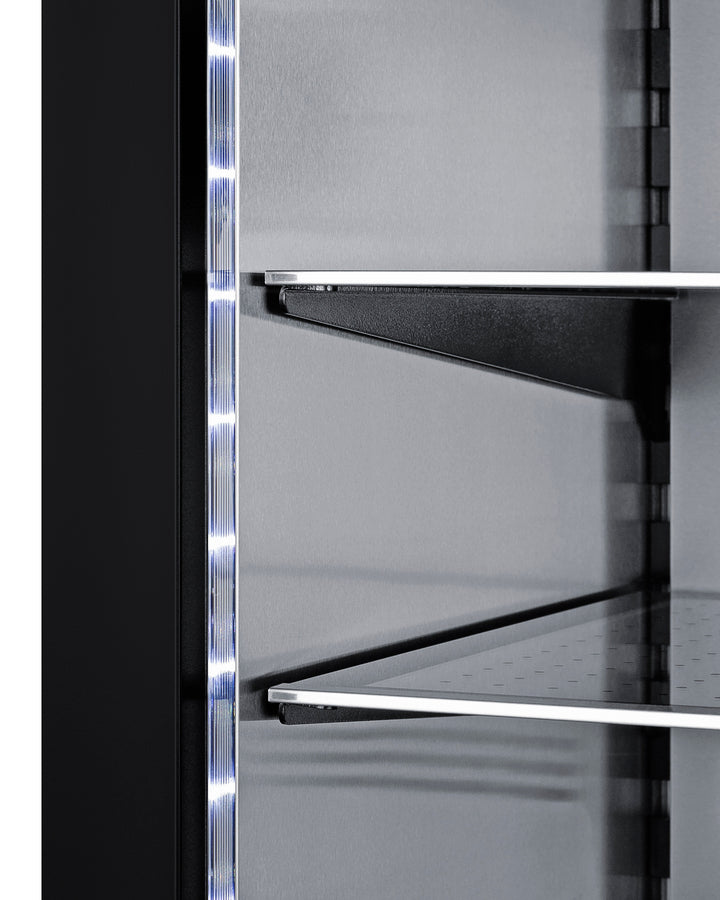

- ✔ Cantilevered shelving
- ✔ Open door alarm
- ✔ High temperature alarm
- ✔ Sabbath mode setting
- ✔ Temperature Memory Function
- ✔ Right angle plug
- ✔ Sealed back

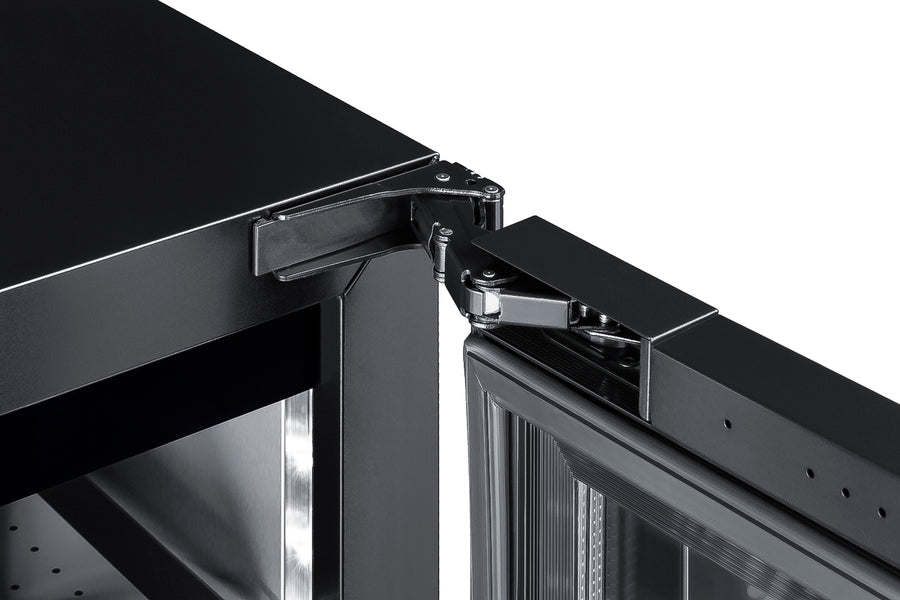

- ✔ Fully articulating European style hinge
- ✔ Reversible door
- ✔ Fully finished black cabinet
- ✔ Commercially approved
- ✔ 100% CFC Free
- ✔ CARB Compliant
SUMMIT 24" Wide Built-In Beverage Center, ADA Compliant - Stainless Steel (ASDG2411) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description

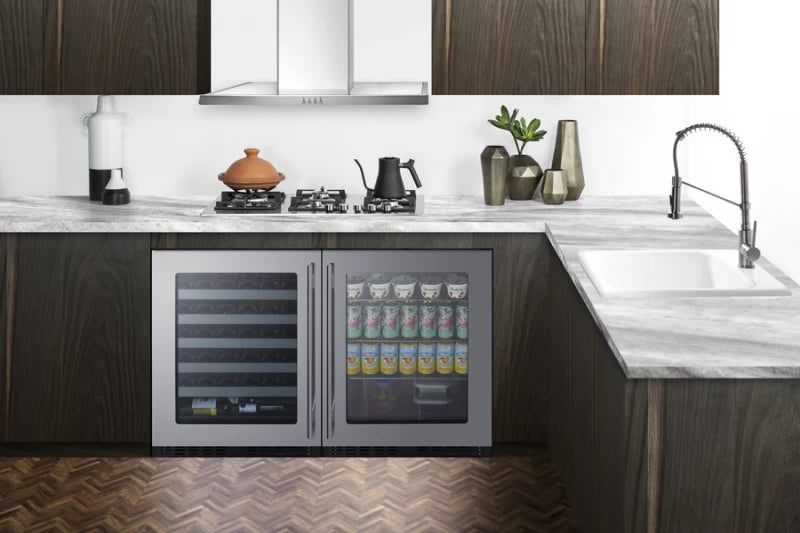

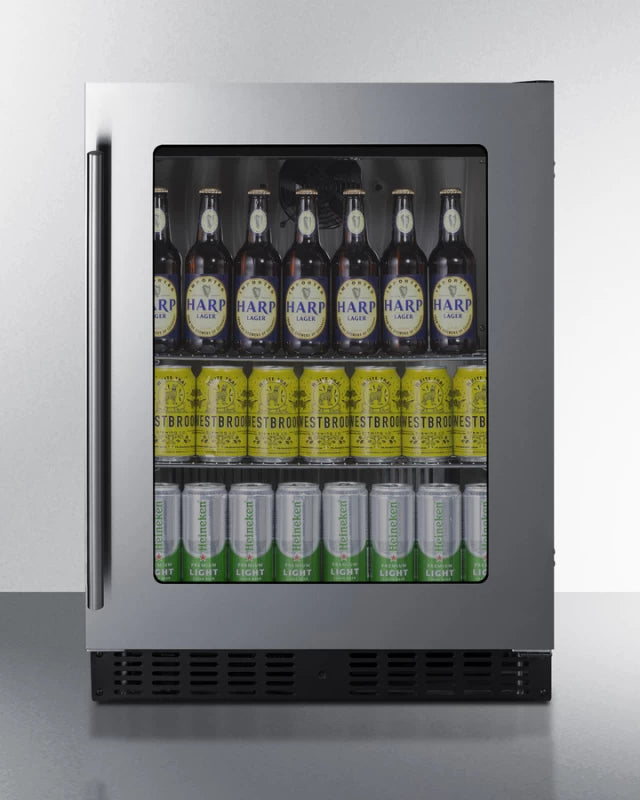

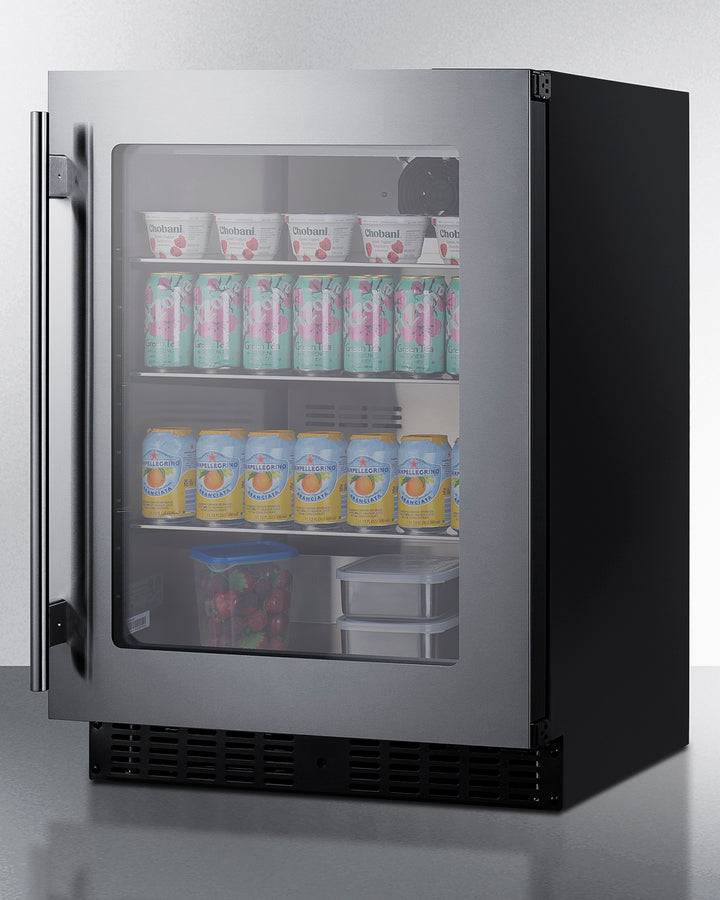

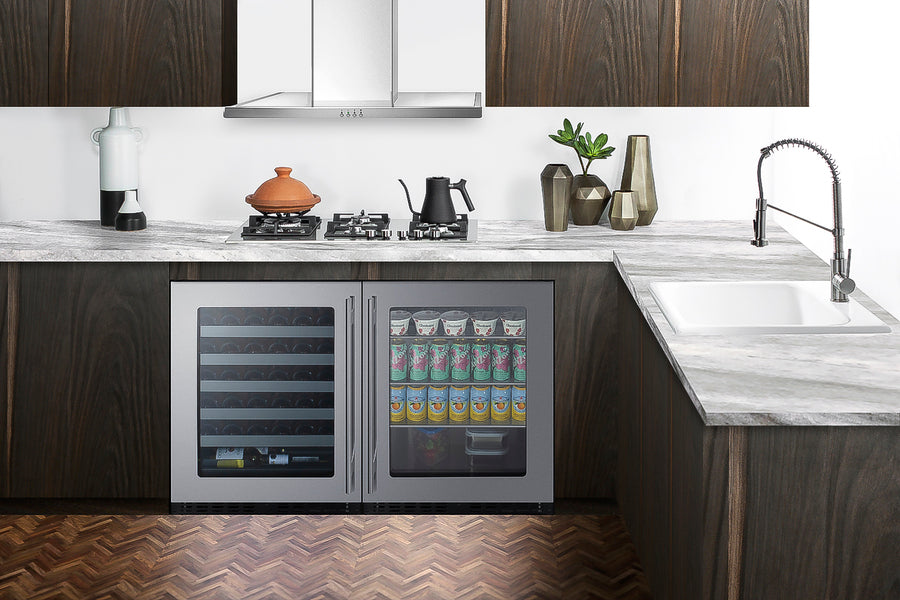

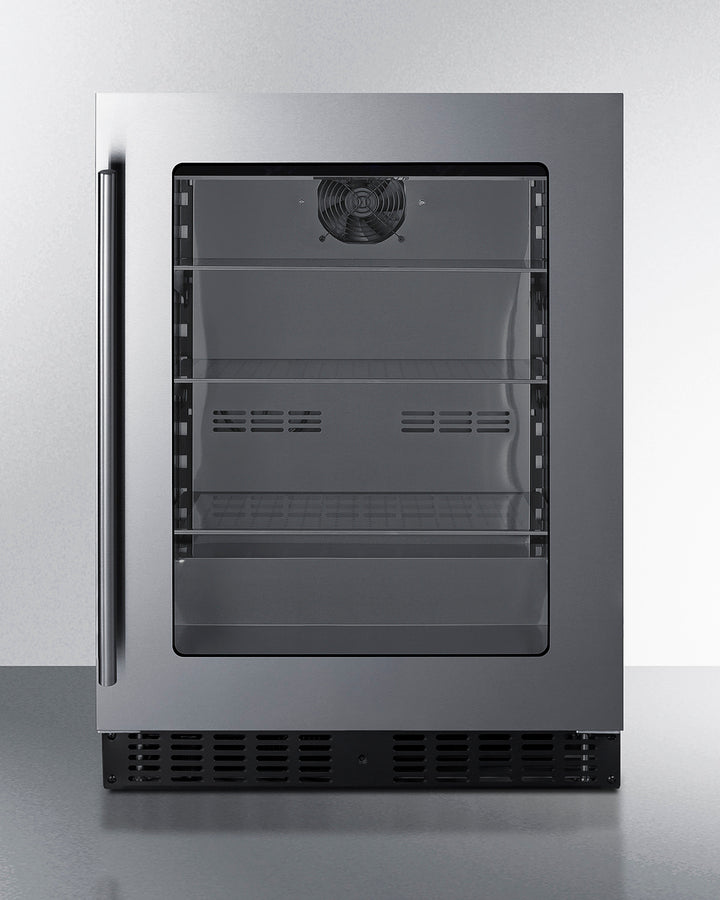

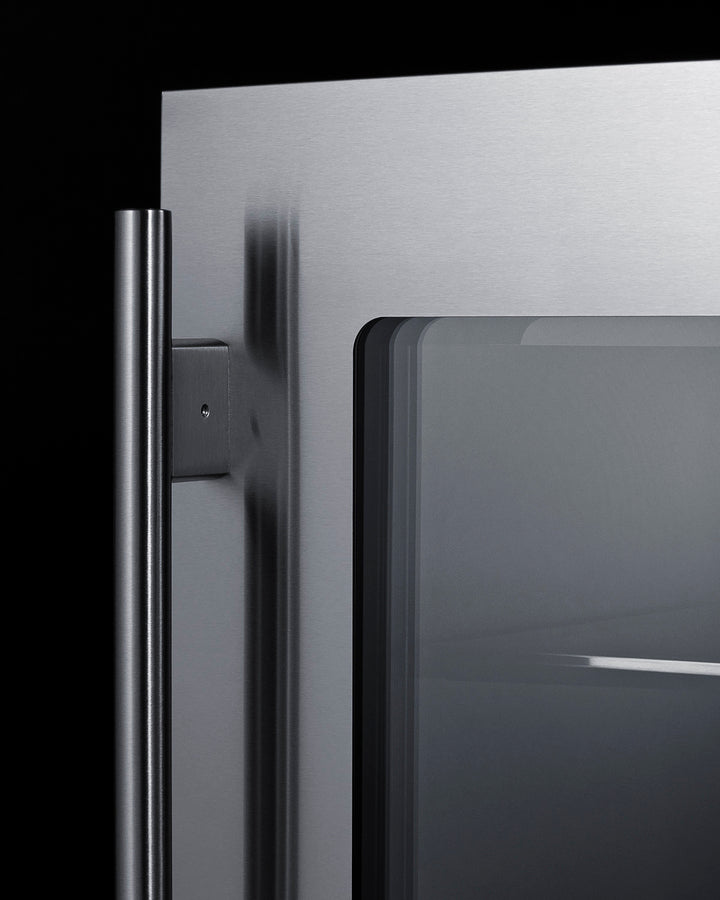

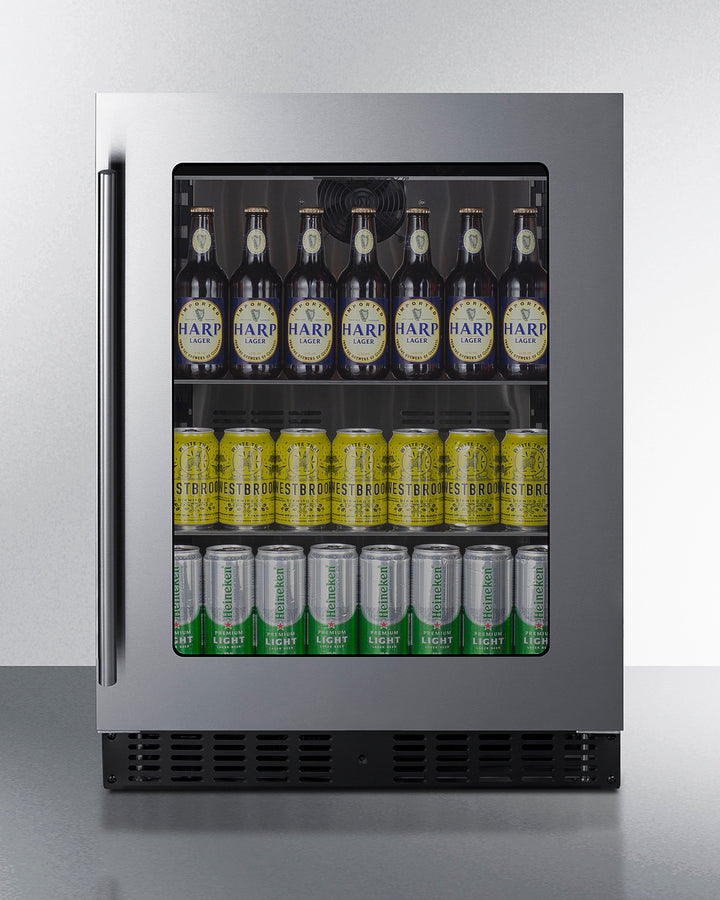

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDG2411 is a 24" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock. Inside, the ASDG2411 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperat
Product Features
Product Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 23.38 in. |
| Height | 32 in. |
| Length | 17.75 in. |
| Weight | 120 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.69 ft |
| Dimensional Weight | 95.54 lbs. |
| Total of Cubes | 7.69 ft |
| Total of Dimensional Weight | 95.54 lbs. |

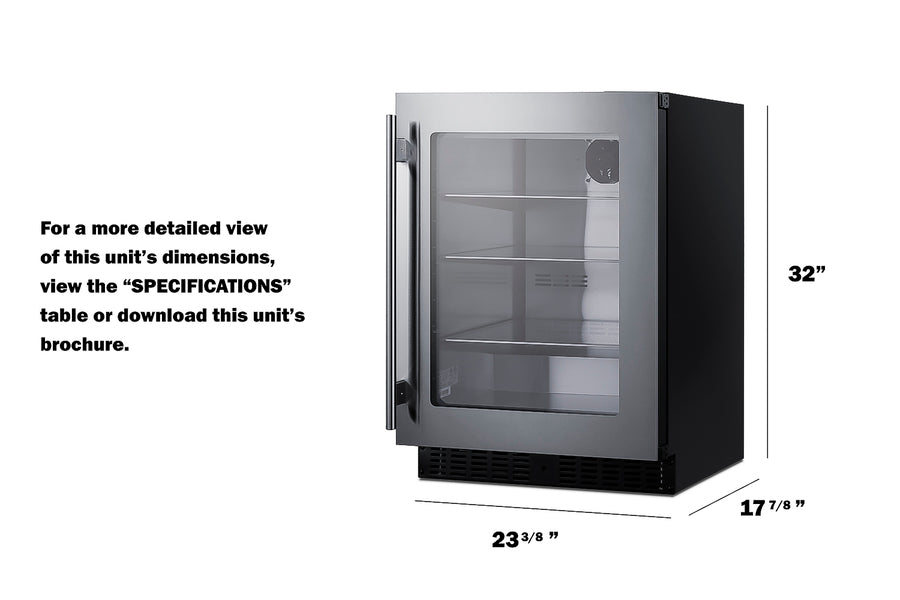

Overview Refrigerator Features Dimensions
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.63" (50 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079455 |
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43F |
| Sound Level | 33.1 dB |
| Interior Height | 24.5" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
Certifications
California Prop 65
