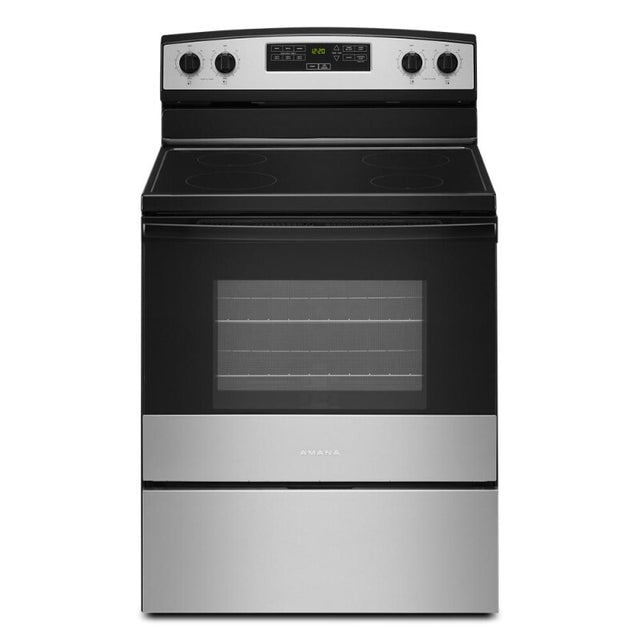

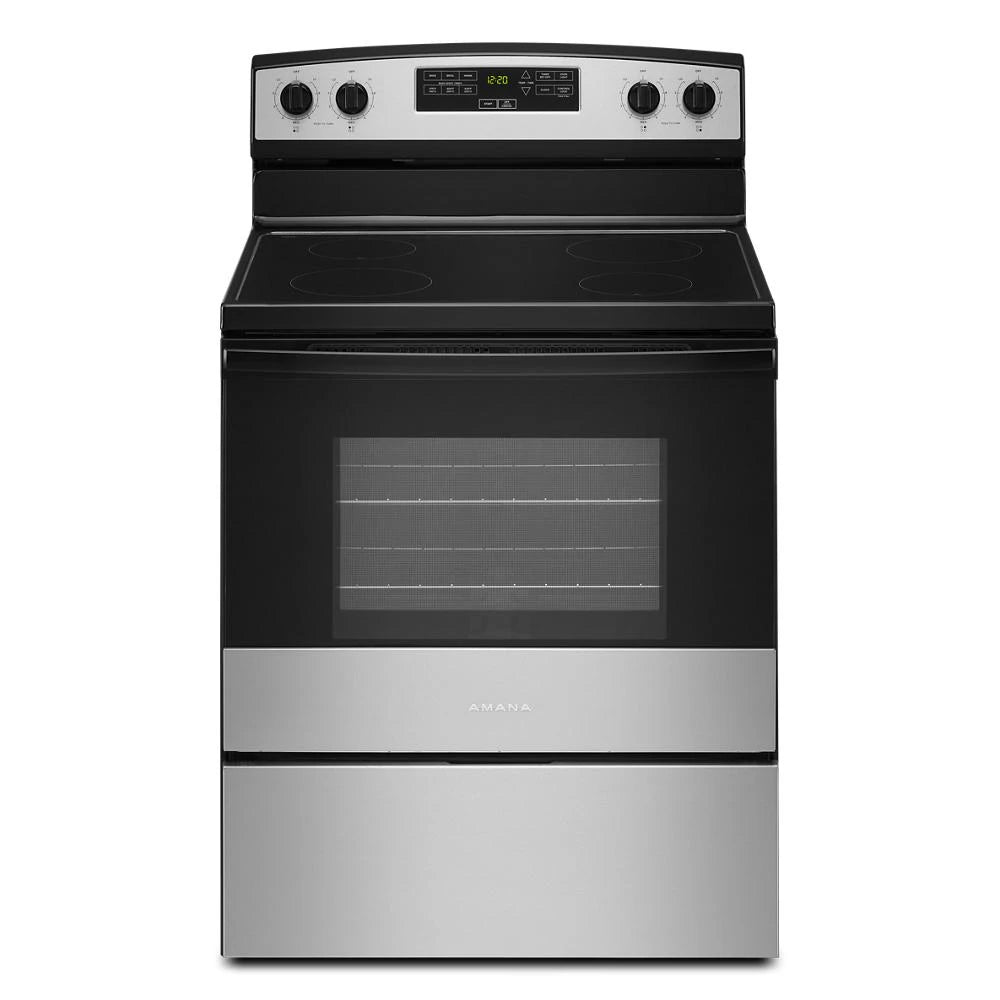

AMANA AMANA RANGE ELEC 30" SMOOTH TOP - Stainless Steel (AER6303MMS)

Product Features

Product Specifications

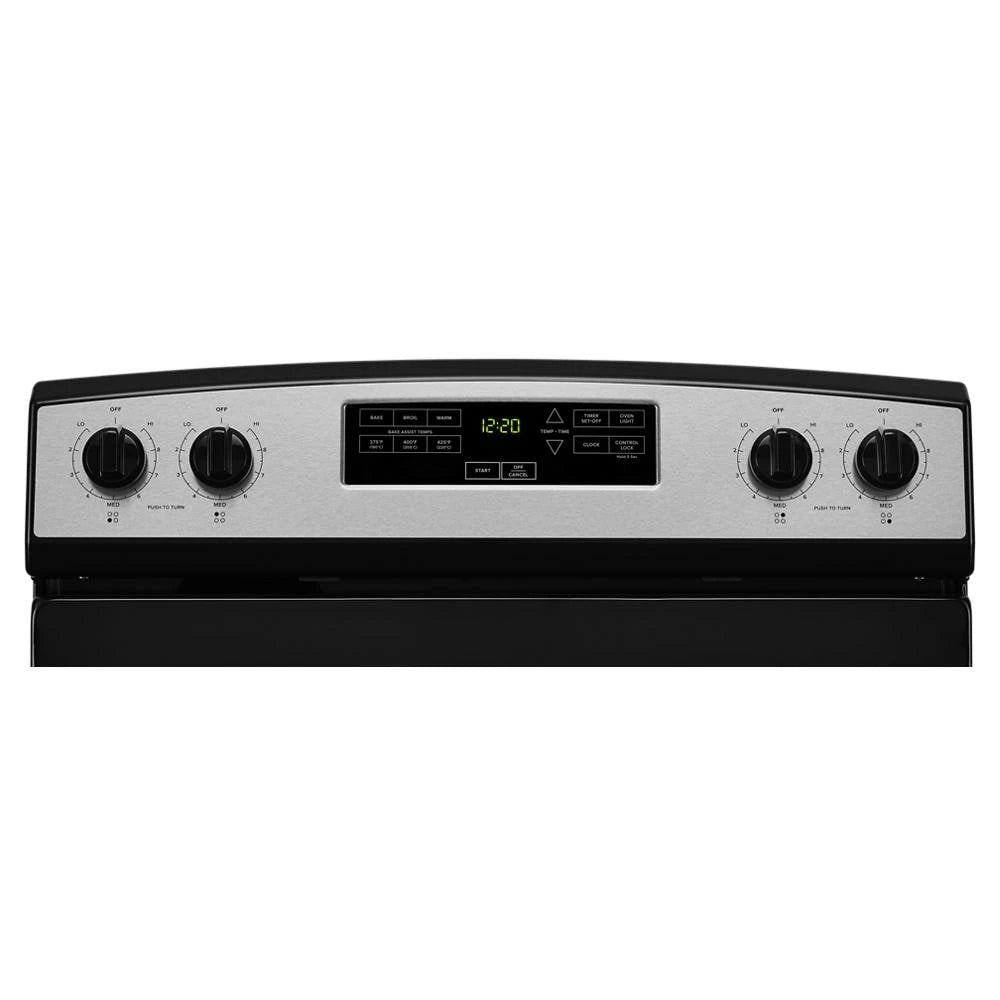

Controls

Display Color	Green
Electronic Display Type	LED

Details

Oven Automatic Shut-Off	No
Cooktop Configuration	All Burners
Fuel Type	Electric
Power On Indicator Light	Yes
Power Outage Compatible	No
Range Type	Freestanding
Oven Selections	Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Keep Warm/Warm Hold, Sabbath Mode, Timer

Cooktop Details

Cooktop Control Knob Color	Black
Cooktop Control Knob Type	Plastic
Cooktop Control Location	Backguard
Cooktop Control Type	Knobs
Cooktop Surface Color	Black
Griddle Included	No
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes
Cooktop Surface Material	Ceramic Glass

Certifications

UL	Yes
Prop 65	Yes

Electrical

Amps	40
Power Cord Included	No
Volts	120

Other

Capacity (Cu Ft)

4.80

Dimensions & Weight

Width	29.88 in.
Height	46.88 in.
Length	27.75 in.
Weight	135 lbs.
Carton Depth	29
Carton Height	48 3/4
Carton Width	32
Cutout Depth (in)	24
Cutout Height (in)	36
Cutout Width (in)	30
Depth Closed Excluding Handles	25 5/16
Depth Closed Including Handles	27 3/4
Depth With Door Open 90 Degree	46 11/16
Gross Weight	152
Maximum Height	47 7/8
Minimum Height	46 7/8
Net Weight	135.0
Cutout Depth(IN,inches)	24.0000
Cutout Height(IN,inches)	36.0000
Cutout Width(IN,inches)	30.0000
Depth Closed Excluding Handles(IN,inches)	25.3125
Depth Closed Including Handles(IN,inches)	27.7500
Depth With Door Open 90 Degree(IN,inches)	46.6875
Maximum Height(IN,inches)	47.8750
Minimum Height(IN,inches)	46.8750
Carton Depth(IN,inches)	29.0000
Carton Height(IN,inches)	48.7500
Carton Width(IN,inches)	32.0000
Cutout Height Min(IN,inches)	36.0000

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	34.88 in.
Shipping Height	51.88 in.
Shipping Length	32.75 in.
Shipping Weight	175 lbs.
Total of Shipping Weight	175 lbs.
Source	Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	22.5 ft
Dimensional Weight	279.65 lbs.
Total of Cubes	22.5 ft
Total of Dimensional Weight	279.65 lbs.

Element/Burner Details

Cooktop Element Style	Radiant
Left Front Element-Burner Size	8in.
Left Front Element-Burner Type	Standard
Left Rear Element-Burner Size	6in.
Left Rear Element-Burner Type	Standard
Number of Cooking Element-Burners	4
Right Front Element-Burner Power	1200W
Right Front Element-Burner Size	6in.
Right Front Element-Burner Type	Standard
Right Rear Element-Burner Size	8in.
Right Rear Element-Burner Type	Standard
Left Front Element-Burner Power	1,800W
Left Rear Element-Burner Power	1,200W
Right Rear Element-Burner Power	1,800W

Exterior Details

Door Type	Glass
Oven Control Knob Type	Plastic
Oven Control Location	Backguard
Oven Control Type	Electronic Touch
Oven Window Size	Extra Large
Handle Color	Black
Handle Material	Plastic
Handle Type	Reach Through Handle
Knob Color	Black
Oven Control Knob Color	Black

Smart Compatibility

Connectivity	No
Works With	No

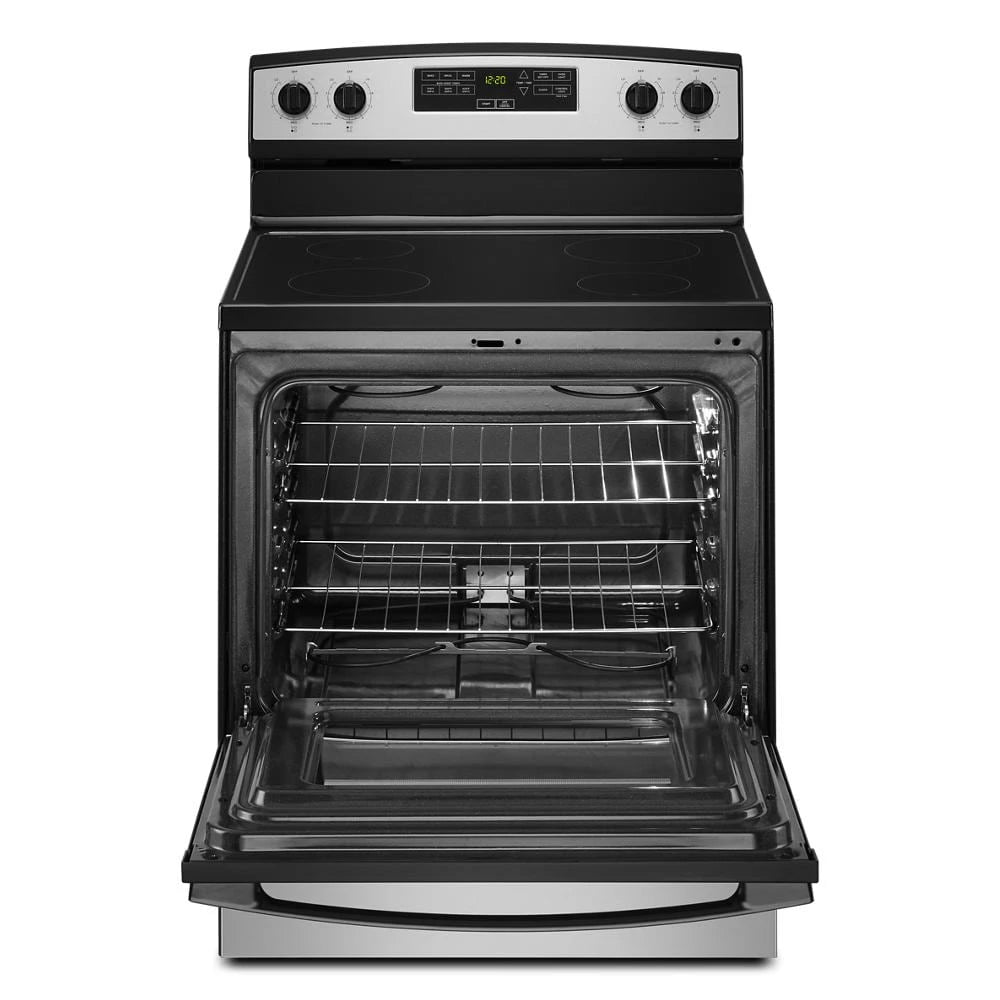

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust	No
Bake Element Power	2,400 W
Broiler Element Power	3,400 W
Broiler Location	Top of Oven
Convection Element Type	None
Convection Functions	No
Door Removable	Yes
Hidden Bake Element	No
Interior Color	Grey
Number of Oven Lights	1
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cleaning Type	Manual Clean
Oven Cooking System	Thermal
Oven Light Switch Location	Oven Control
Oven Light Type	Incandescent

Dimensions

Capacity	4.8 cu. ft.
Common Size	30 in
Cutout Depth	24 in
Cutout Height	36 in
Cutout Width	30 in
Depth	27-3/4 in
Depth Closed Excluding Handles	25-313/1000 in
Depth Closed Including Handles	27-3/4 in
Depth With Door Open 90 Degree	46-86/125 in
Gross Weight	152 lbs
Height	46-7/8 in
Maximum Height	47-7/8 in
Minimum Height	46-7/8 in
Net Weight	135 lbs
Oven Interior Depth	18-1/2 in
Oven Interior Height	18-1/8 in
Oven Interior Width	24-1/2 in
Width	29-7/8 in
