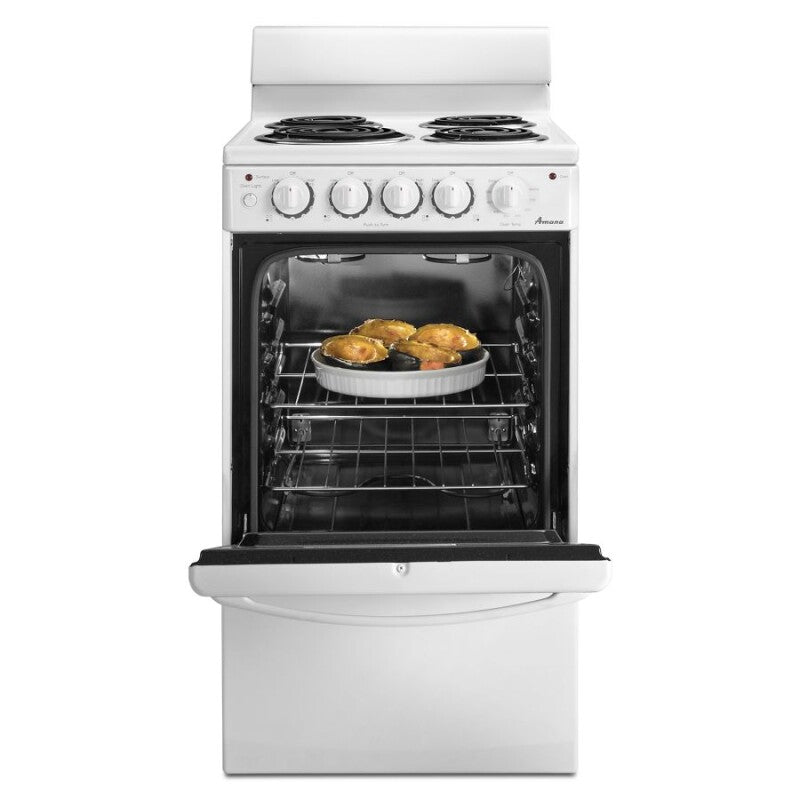

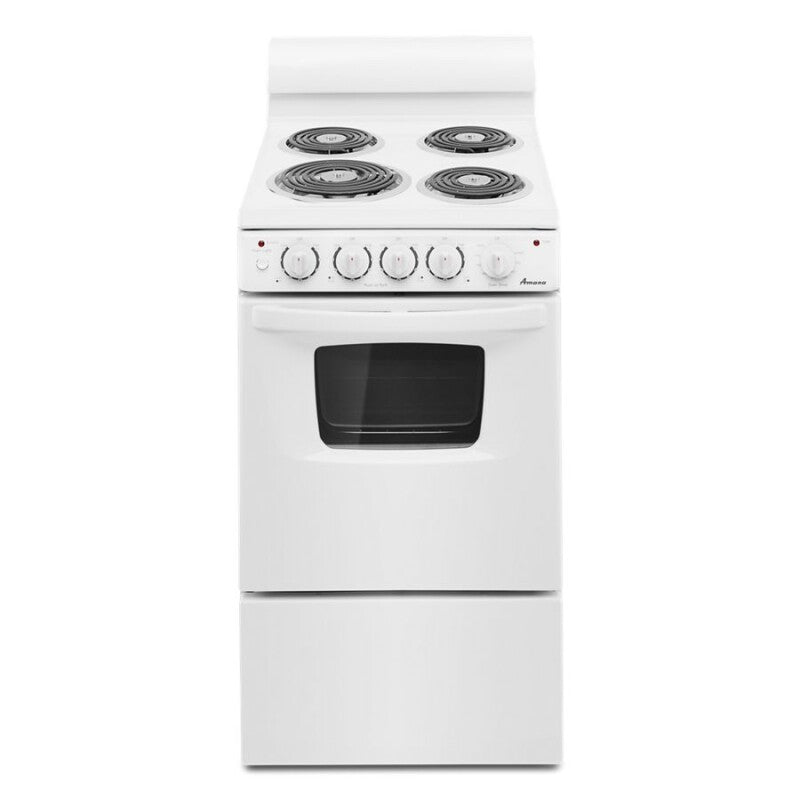

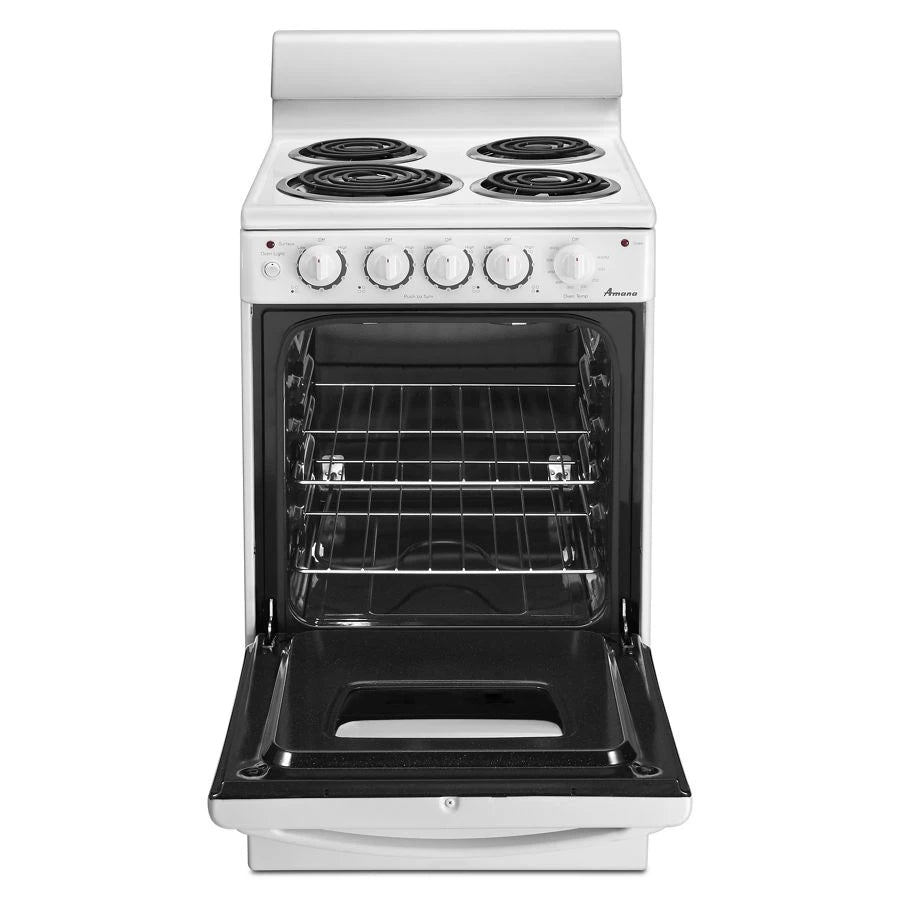

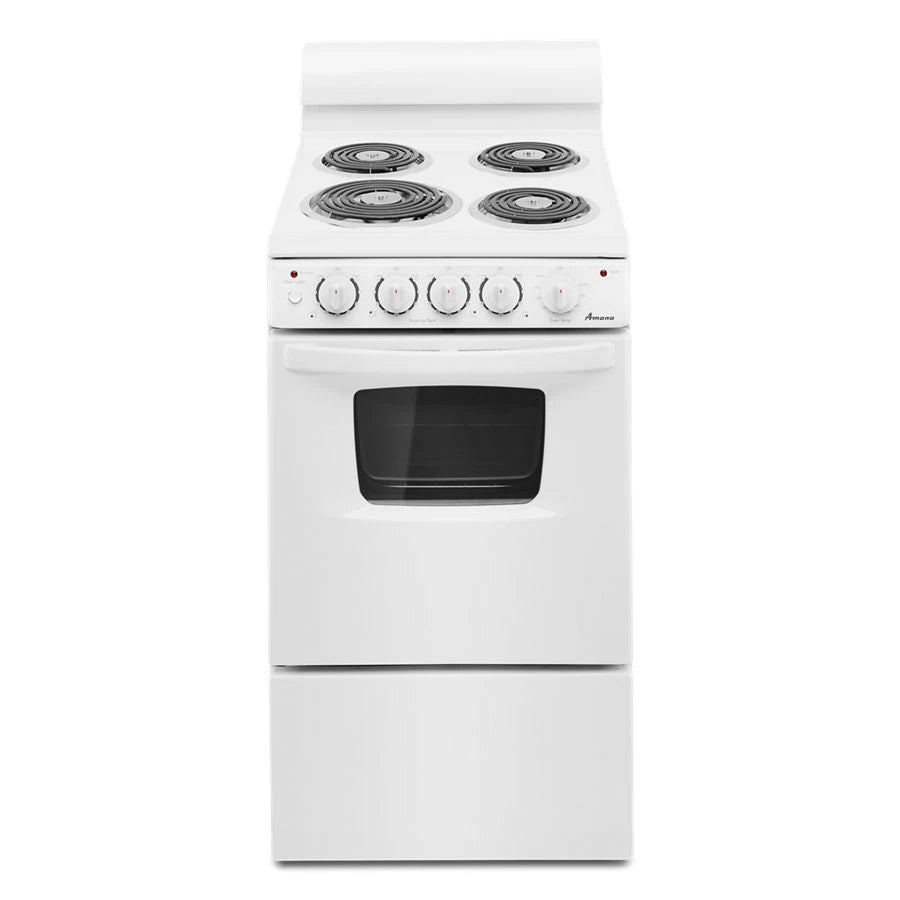

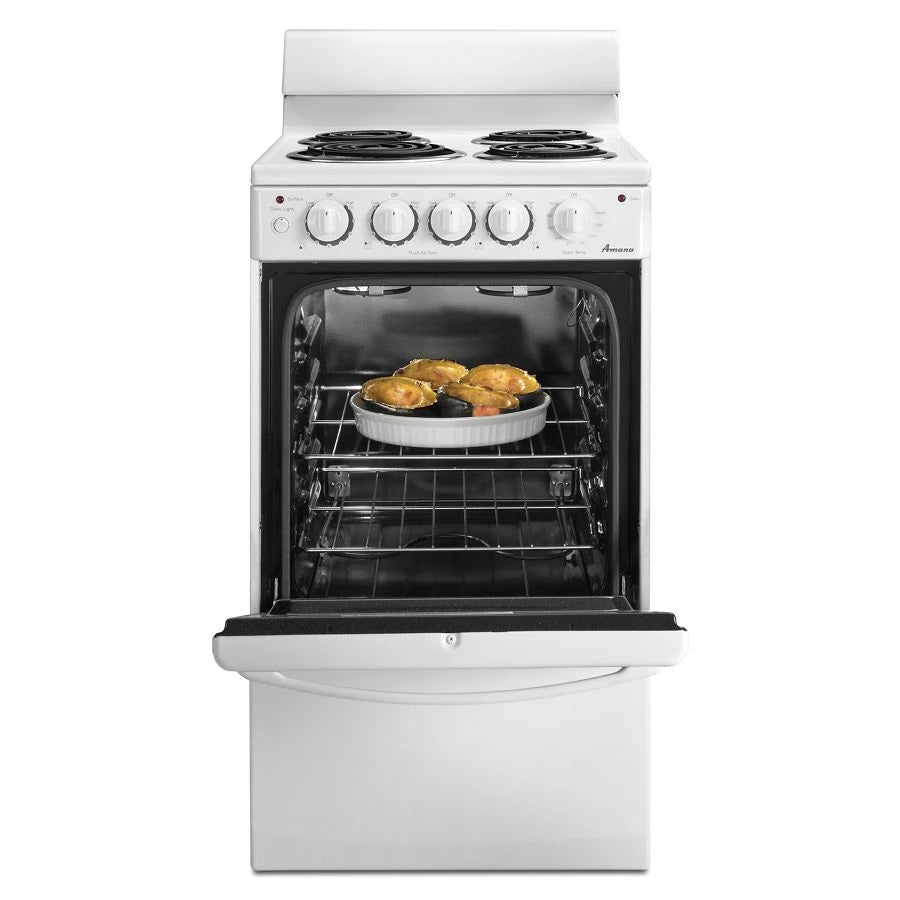

AMANA 20-inch Amana® Electric Range Oven With Versatile Cooktop - White (AEP222VAW)

Product Features

Product Specifications

Warranty

Parts	1 Year
Labor	1 Year

Controls

Display Color	Blue, Red
Electronic Display Type	Digital

Cooktop Details

Cooktop Control Location	Front
Cooktop Control Type	Knobs
Cooktop Surface Color	White
Cooktop Surface Material	Porcelain Coated Steel
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	No

Certifications

ADA Compliant	ADA Height and Operation Compliant
UL	Yes
Prop 65	Yes

Electrical

Power Cord Included

No

Other

Capacity(FT3,cubic feet)

2.60

Dimensions & Weight

Width	19.75 in.
Height	42.56 in.
Length	26.25 in.
Weight	-
Cutout Width(IN,inches)	20.1250
Depth Closed Excluding Handles(IN,inches)	24.5000
Depth With Door Open 90 Degree(IN,inches)	47.8750
Carton Depth(IN,inches)	28.3750
Carton Height(IN,inches)	44.9375
Carton Width(IN,inches)	21.5000
Gross Weight(LB,pounds)	102
Carton Depth	28 3/8
Carton Height	44 15/16
Carton Width	21 1/2
Cutout Depth (in)	0
Cutout Height (in)	0
Cutout Width (in)	20 1/8
Depth Closed Excluding Handles	24 1/2
Depth With Door Open 90 Degree	47 7/8
Gross Weight	102

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	24.75 in.
Shipping Height	47.56 in.
Shipping Length	31.25 in.
Shipping Weight	-
Total of Shipping Weight	-
Source	Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	12.77 ft
Dimensional Weight	158.74 lbs.
Total of Cubes	12.77 ft
Total of Dimensional Weight	158.74 lbs.

Details

Fuel Type	Electric
LP Convertible	No
Oven Configuration	Single Oven
Power On Indicator Light	Yes
Power Outage Compatible	No
Range Configuration	Freestanding
Range Type	Freestanding
Natural Gas Convertible	No

Element/Burner Details

Cooktop Element Style	Coil
Left Front Element-Burner Size	8in.
Left Front Element-Burner Type	Coil
Left Rear Element-Burner Size	6in.
Left Rear Element-Burner Type	Coil
Number of Cooking Element-Burners	4
Right Front Element-Burner Power	1250W
Right Front Element-Burner Size	6in.
Right Front Element-Burner Type	Coil
Right Rear Element-Burner Size	6in.
Right Rear Element-Burner Type	Coil
Left Front Element-Burner Power	2,100W
Left Rear Element-Burner Power	1,250W
Right Rear Element-Burner Power	1,250W

Exterior Details

Door Type	Metal & Glass
Oven Control Location	Front
Oven Control Type	Knobs
Oven Window Size	Large
Handle Color	White
Knob Color	Color Coordinated
Knob Type	Plastic

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust	No
Broiler Element Power	2,200 W Upper
Broiler Location	Top of Oven
Convection Element Type	None
Convection Functions	No
Hidden Bake Element	No
Interior Color	Grey
Number of Oven Lights	1
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cleaning Type	Manual Clean
Oven Cooking System	Thermal
Oven Light Type	Incandescent
Oven Rack Type	Standard

Dimensions

Cutout Width	20-1/8 in
Depth	26-1/4 in
Depth Closed Excluding Handles	24-1/2 in
Depth With Door Open 90 Degree	47-7/8 in
Gross Weight	102-1/2 lbs
Height	42-9/16 in
Net Weight	0 lbs
Oven Interior Depth	15-3/5 in
Oven Interior Height	16 in
Oven Interior Width	18-1/2 in
Width	19-3/4 in
