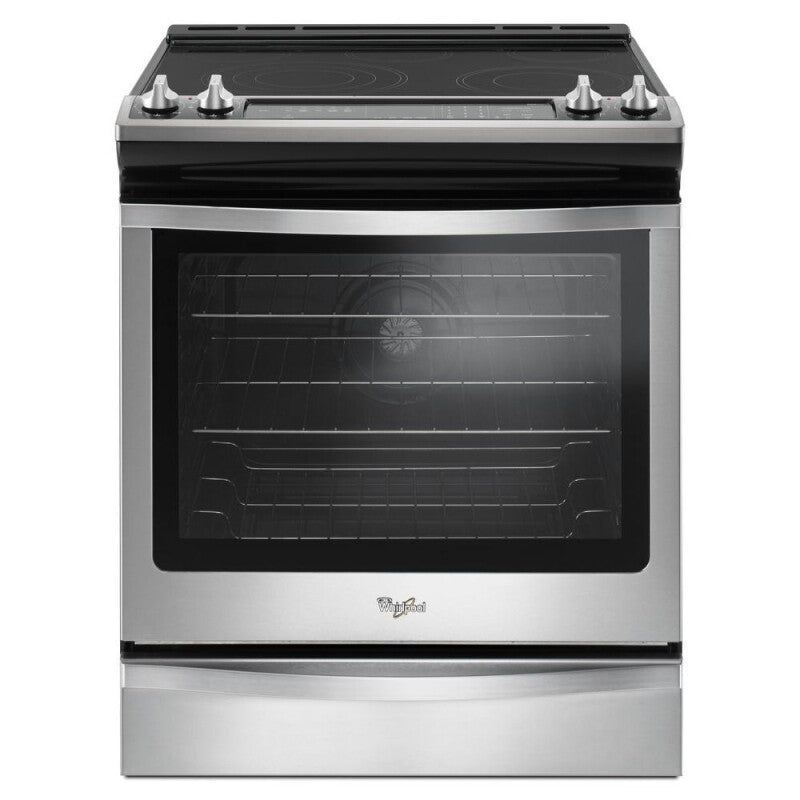

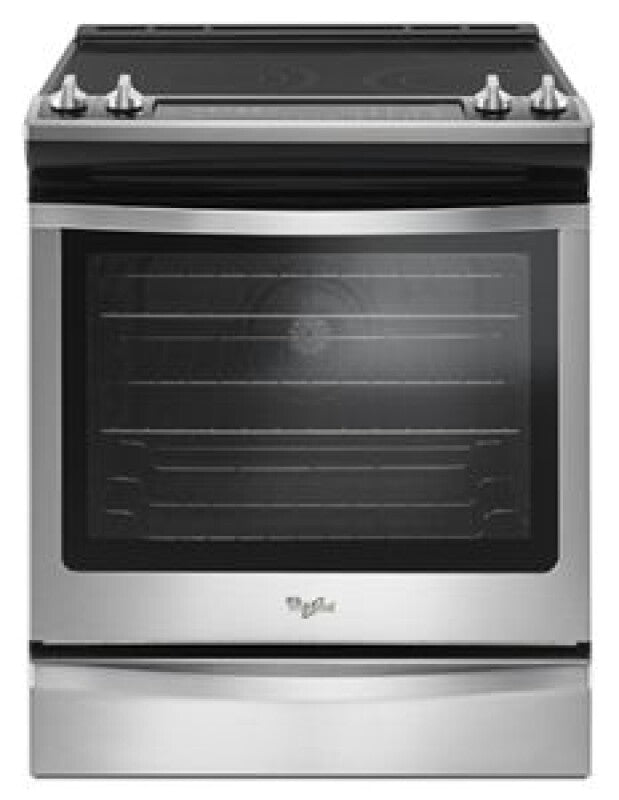

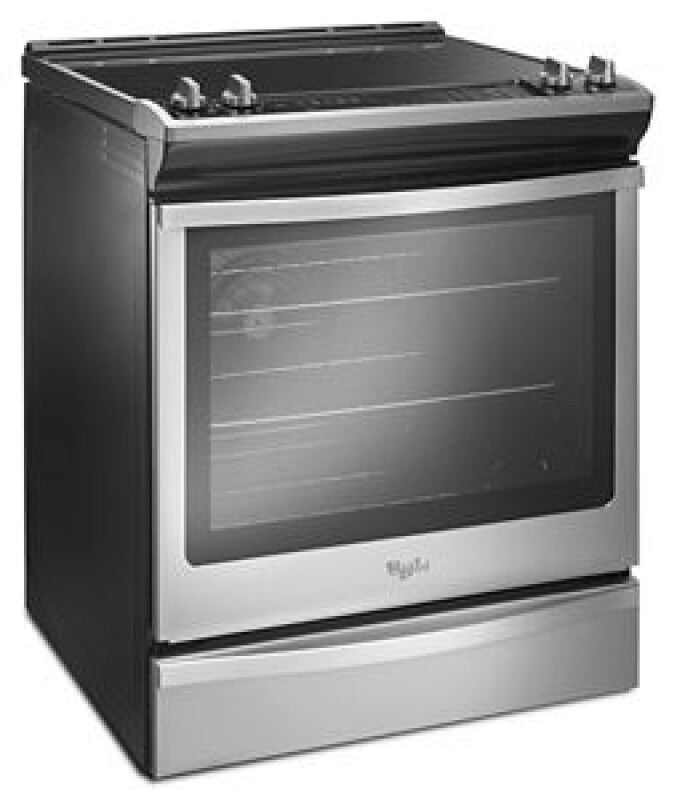

Whirlpool 6.4 Cu. Ft. Slide-In Electric Range with True Convection - Black-on-Stainless (WEE745H0FS)

SKU: WEE745H0FS

UPC: 883049397634

Sale price $679.00 Regular price $1,899.00

Whirlpool 6.4 Cu. Ft. Slide-In Electric Range with True Convection - Black-on-Stainless (WEE745H0FS) is available for ordering but may require additional time to be fulfilled. Please contact us for details.

Delivery and Shipping

Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.

Key Features

  • True Convection Cooking
  • AquaLift® Self-Cleaning Technology
  • Rapid Preheat
  • FlexHeat™ Triple Radiant Element
  • Temperature Sensor
  • 6.4 Cu. Ft. Capacity
  • Easy-Wipe Ceramic Glass Cooktop
  • Max Capacity Rack
  • Hidden Bake Element
  • Large Oven Window
  • Dishwasher-Safe Knobs
  • Frozen Bake™ Technology

Documents

PDF Icon

Feature Sheet

View | Download

PDF, 169.56 KB

PDF Icon

Dimension Guide

View | Download

PDF, 381.44 KB

PDF Icon

Quick Start Guide

View | Download

PDF, 450.14 KB

PDF Icon

Warranty

View | Download

PDF, 185.62 KB

PDF Icon

Owner's Manual

View | Download

PDF, 1.68 MB

Product Features

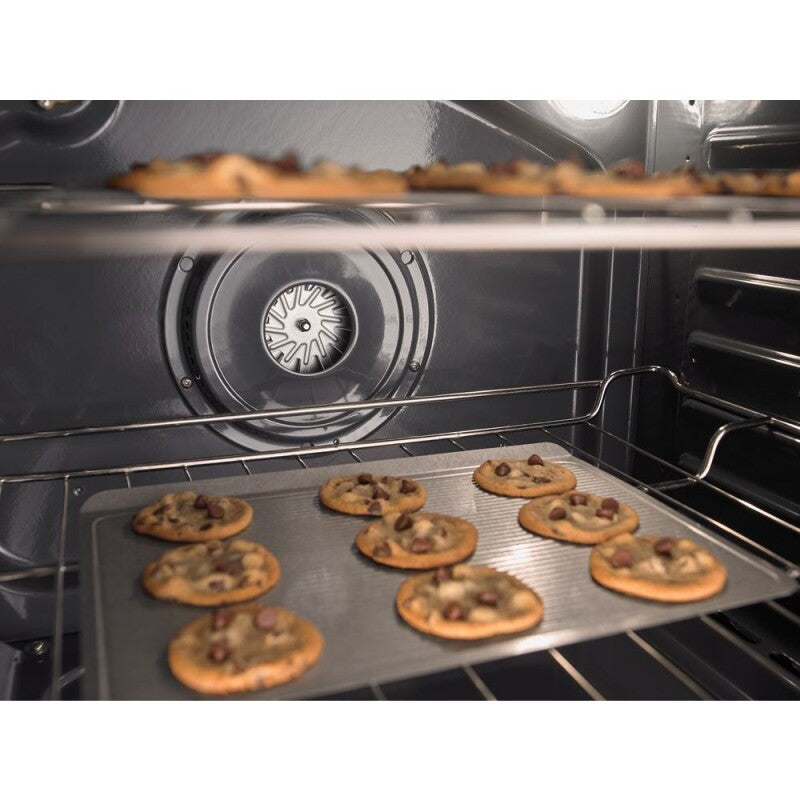

True Convection Cooking
True Convection Cooking
True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

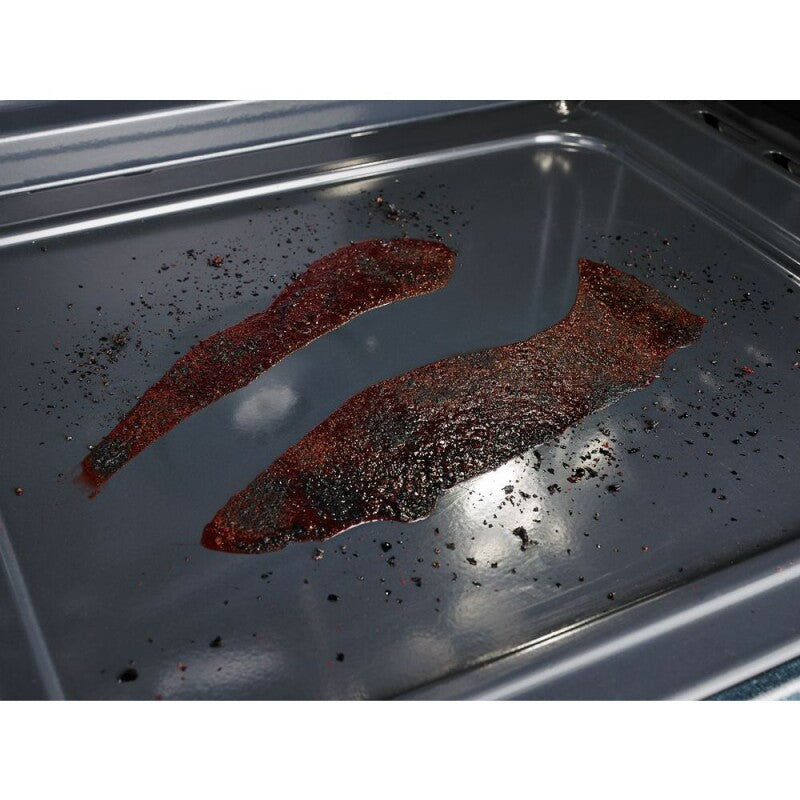

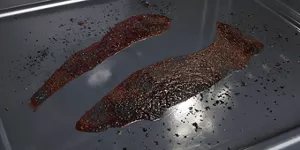

AquaLift® Self-Cleaning Technology
AquaLift® Self-Cleaning Technology
Clean the oven with minimal odors at a temperature below 248°F. This innovative 40-minute cycle combines low heat with water to release baked-on spills that can be wiped away once the cycle is complete.* *Unlike traditional Adjustable Self-Clean Cycle which burns off soils, when using Aqualift® self-clean technology, add water, run the cycle and then manually remove the water and soils with a wet sponge when the cycle is finished.
FlexHeat™ Triple Radiant Element
FlexHeat™ Triple Radiant Element
The FlexHeat™ triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.
Rapid Preheat
Save time with this fast preheating mode. A rear fan combined with the use of all of the elements helps to heat the oven quickly.
Temperature Sensor
A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

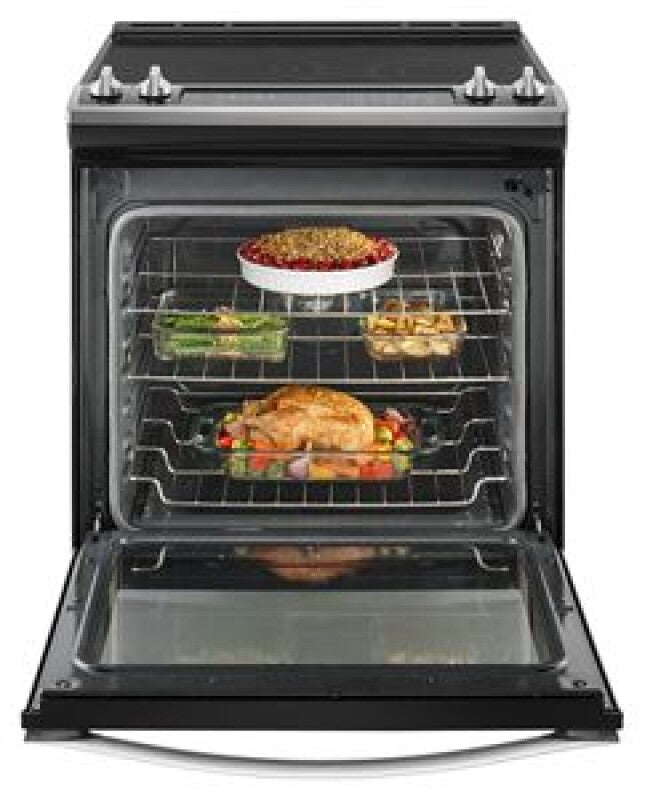

6.4 Cu. Ft. Capacity
Easily cook a whole meal with 6.4 Cu. Ft. Capacity.

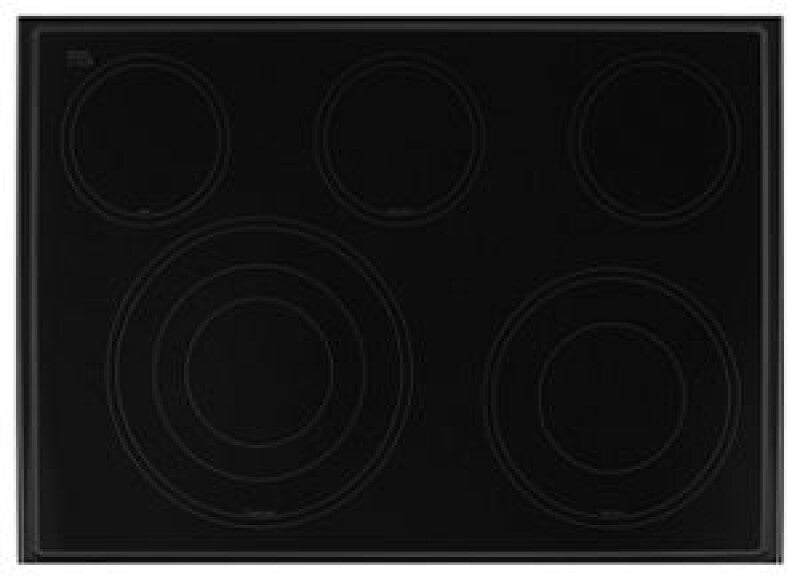

Easy-Wipe Ceramic Glass Cooktop

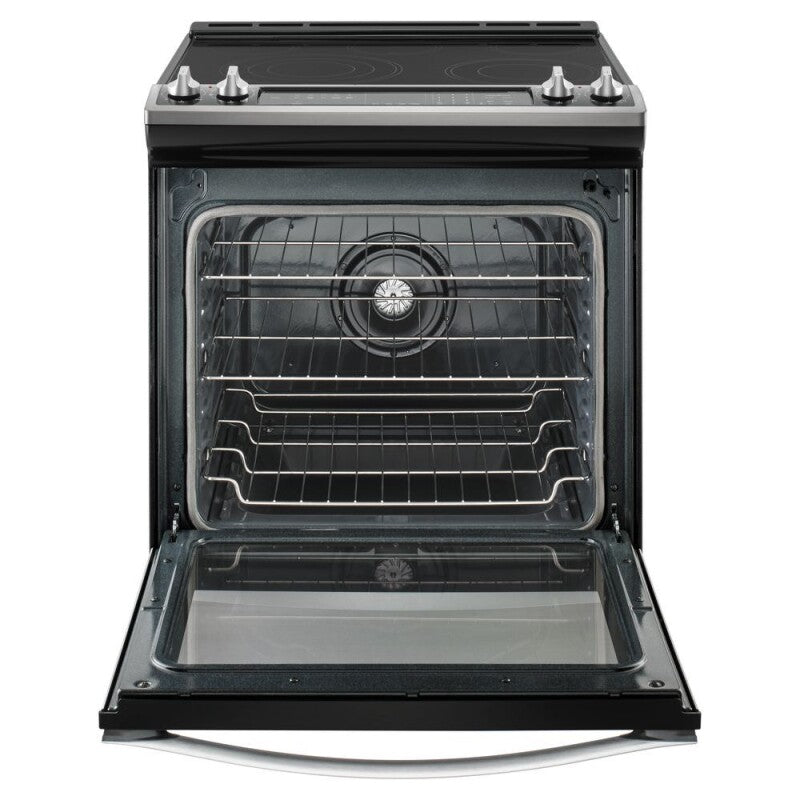

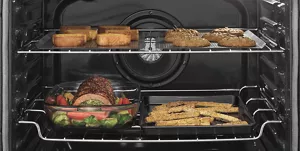

Max Capacity Rack
Hidden Bake Element
A hidden bake element under the floor of the oven creates a smooth surface inside the oven thats easier to clean.

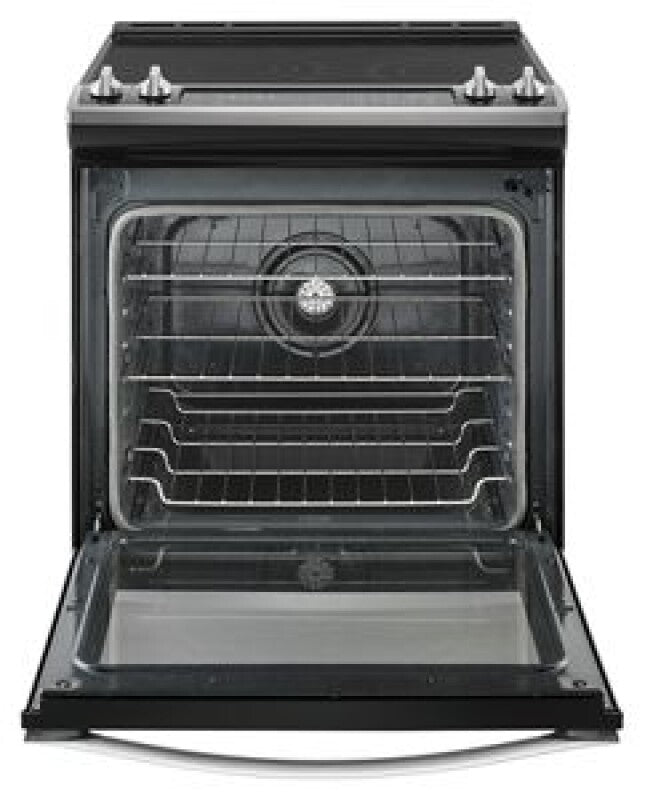

Large Oven Window
Dishwasher-Safe Knobs

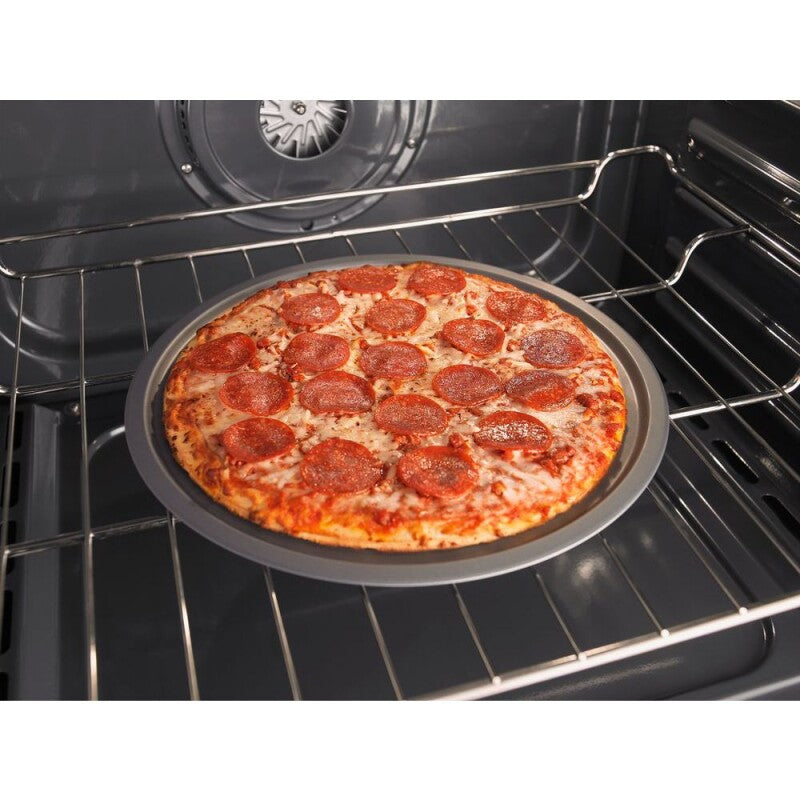

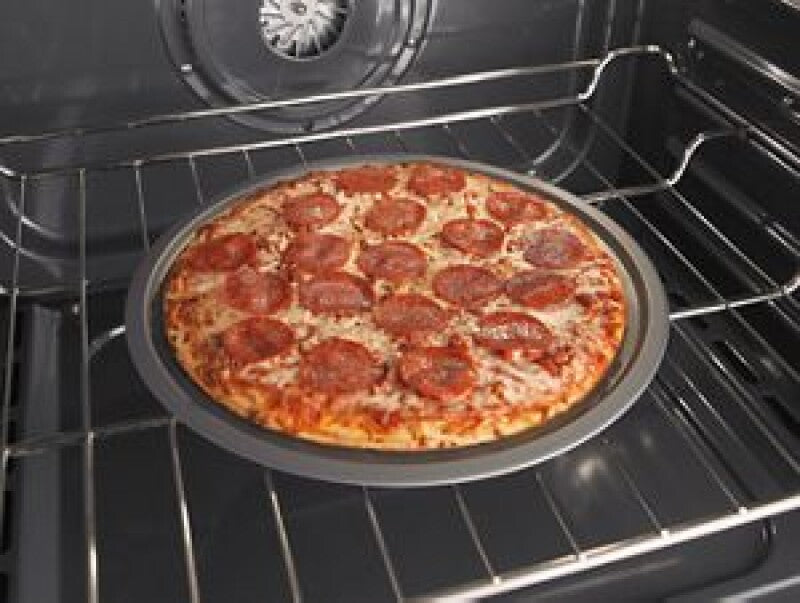

Frozen Bake™ Technology
Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.

Product Specifications

Other

Capacity 6.4 cu. ft.
Common Size 30 in
Capacity 6.4 cu. ft.
Common Size 30 in
Capacity 6.4 cu. ft.
Common Size 30 in

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement -
Dimensional Weight -
Total of Cubes -
Total of Dimensional Weight -

Exterior Details

Door Type Metal & Glass
Handle Color Stainless Steel
Handle Material Metal
Handle Type Towel Bar
Knob Color Color Coordinated/Black on Stainless
Knob Type Dishwasher-Safe Weighted
Oven Window Size Extra Large

Oven Cavity Details

Automatic Convection Conversion Temperature Adjust Yes
Broiler Location Top of Oven
Convection Element Type Fan
Convection Functions Bake, Broil, Roast
Hidden Bake Element Yes
Interior Color Grey
Number of Oven Lights 1
Number of Oven Racks 3
Number of Rack Guides 7
Oven Cleaning Type AquaLift® Self Clean
Oven Cooking System Convection
Oven Light Type Incandescent
Oven Rack Type 2 Standard and 1 Max Capacity
Bake Element Power 3,600 W
Broiler Element Power 4,000 W

Cooktop Details

Cooktop Surface Color Black
Cooktop Surface Material Ceramic Glass
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes

Element/Burner Details

Center Rear Element-Burner Power 100W
Center Rear Element-Burner Size 6in.
Center Rear Element-Burner Type Warming
Cooktop Element Style Radiant
Left Front Element-Burner Size 12in./9in./6in.
Left Front Element-Burner Type Triple
Left Rear Element-Burner Power 300W/1300W
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Radiant Melt
Number of Cooking Element-Burners 5
Right Front Element-Burner Size 9in./6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Size 6in.
Right Rear Element-Burner Type Radiant
Left Front Element-Burner Power 3,000W
Right Front Element-Burner Power 3,000W
Right Rear Element-Burner Power 1,200W

Details

Fuel Type Electric
Oven Automatic Shut-Off No
Oven Configuration Single Oven
Oven Selections Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Frozen Bake, Keep Warm Setting, Rapid Preheat, Sabbath Mode, Settings
Power On Indicator Light Yes
Range Configuration Slide-In
Range Type Slide-in

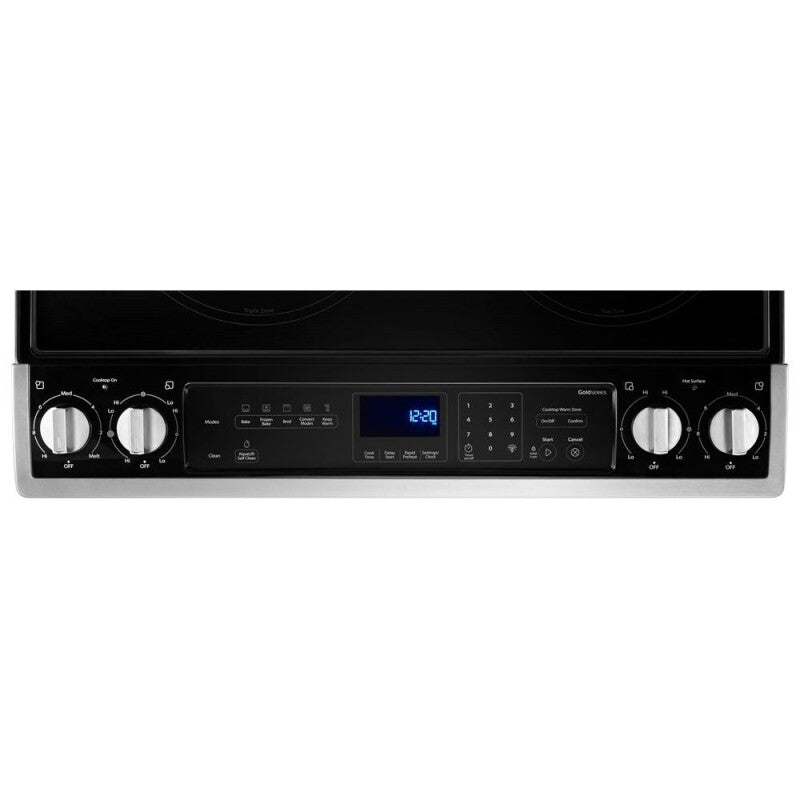

Controls

Display Color Blue
Electronic Display Type VFD

Refinements

Features ADA Compliant, FlexHeat™ Dual Element, FlexHeat™ Triple Radiant Element, Frozen Bake™ Technology, Sabbath Mode/Star-K Certification, Self-Cleaning, Whirlpool Handle, Bladed Knob

Electrical

Amps 40
Power Cord Included No
Hz 60
Volts 240

Features

Range Features ADA Compliant, Bladed Knob, FlexHeat™ Dual Element, FlexHeat™ Triple Radiant Element, Frozen Bake™ Technology, Sabbath Mode/Star-K Certification, Self-Cleaning, Whirlpool Handle

Certifications

ADA Compliant ADA Height and Operation Compliant
Prop 65 Standard
UL Yes

Dimensions & Weight

Width 29.88 in.
Height 36 in.
Length -
Weight 197 lbs.
Depth Closed Including Handles 28-7/8 in
Depth With Door Open 90 Degree 48-3/4 in
Gross Weight 197 lbs
Net Weight 192 lbs
Oven Interior Depth 20-5/8 in
Oven Interior Height 22-1/8 in
Oven Interior Width 24-1/8 in

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 41 in.
Shipping Length -
Shipping Weight 237 lbs.
Total of Shipping Weight 237 lbs.
Source Calculation

Certifications

California Prop 65
