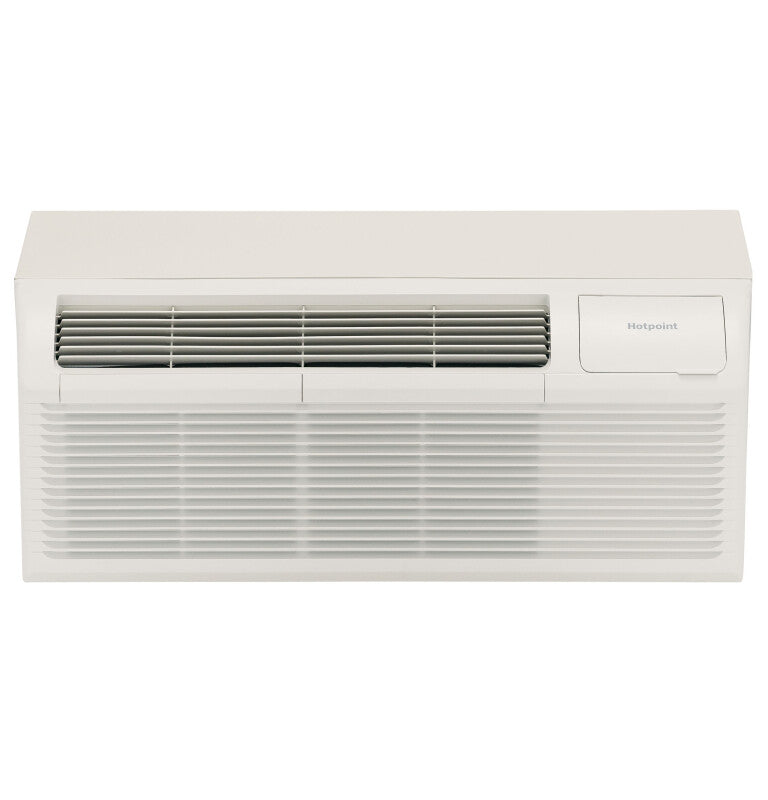

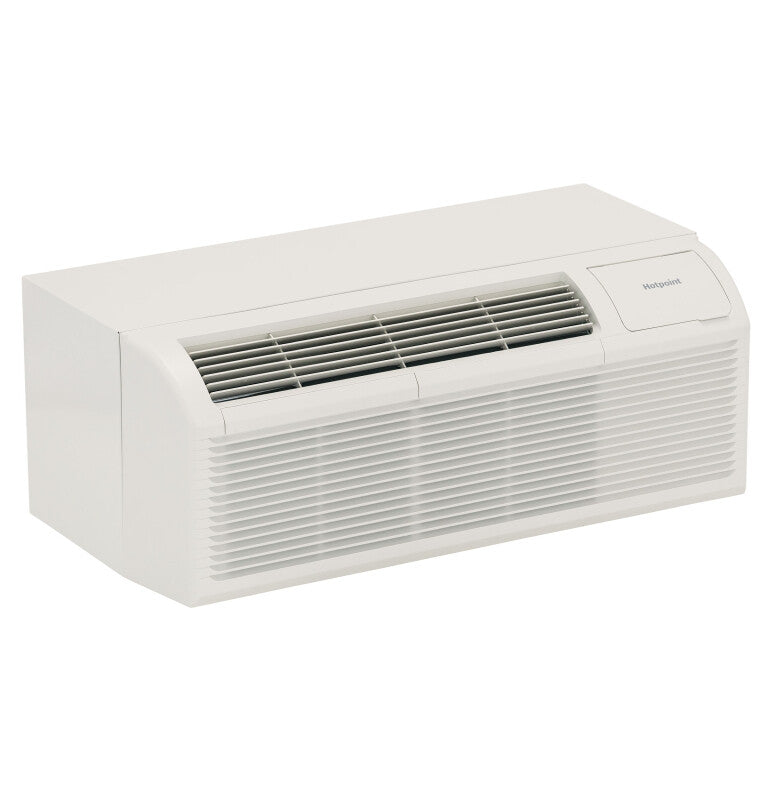

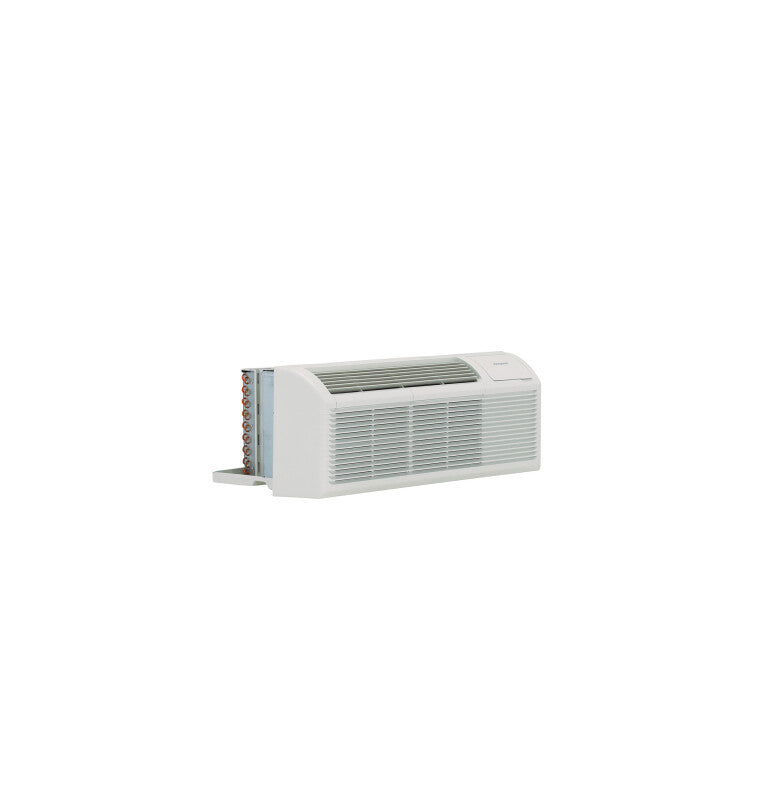

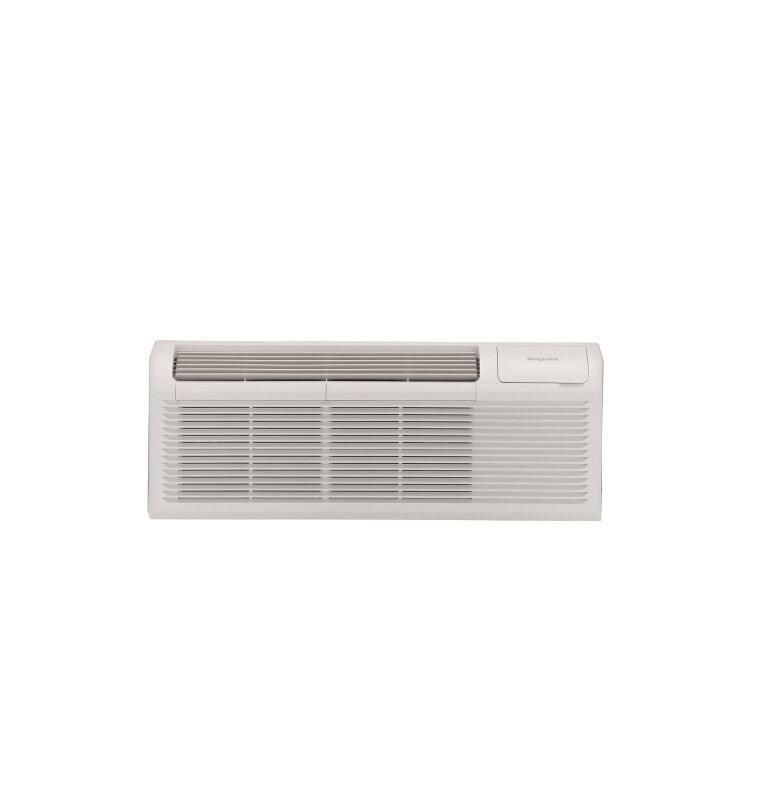

HOTPOINT PTAC Heat Pump Unit with Electric Heat Backup 12,000 BTU, 20 amps, 230/208 Volt - White (AH11H12D3B)
SKU:
AH11H12D3B
UPC: 084691840169
Sale price
$69900
Regular price
$85400
Unit price
HOTPOINT PTAC Heat Pump Unit with Electric Heat Backup 12,000 BTU, 20 amps, 230/208 Volt - White (AH11H12D3B) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ 3-speed fan
- ✔ 4-temperature limiting options
- ✔ Freeze and frost protection
- ✔ Auto power recovery
- ✔ Self diagnostics
- ✔ Automatic emergency heat
- ✔ Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
- ✔ Backed by an industry leader
- ✔ Intuitive display
- ✔ Power cord (LCDI) included
- ✔ Remote thermostat compatibility
- ✔ Works with central desk control systems
- ✔ Heatpump models include staged heating
- ✔ Tangential fan for air flow and smooth sound
- ✔ Energy-efficient heat pump models available
HOTPOINT PTAC Heat Pump Unit with Electric Heat Backup 12,000 BTU,...
Sale price
$69900
Regular price
$85400
Unit price
SKU:
AH11H12D3B
Sale price
$69900
Regular price
$85400
Unit price
HOTPOINT PTAC Heat Pump Unit with Electric Heat Backup 12,000 BTU, 20 amps, 230/208 Volt - White (AH11H12D3B) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Description

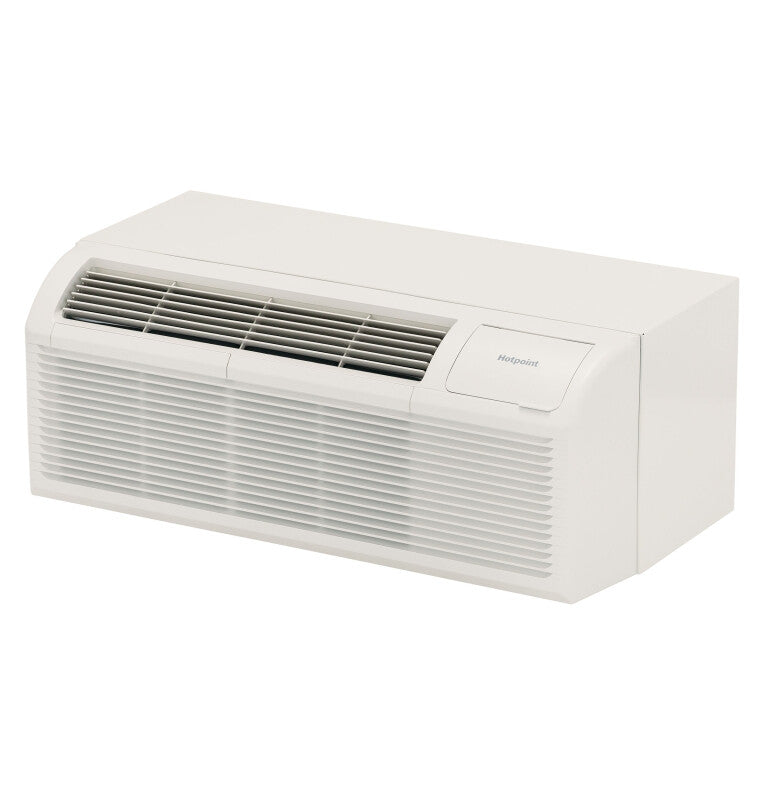

Hotpoint Wall Mount PTAC with Auto Power Recovery and Intuitive Display in White
Hotpoint Wall Mount PTAC with Auto Power Recovery and Intuitive Display in White
Hotpoint Wall Mount PTAC with Auto Power Recovery and Intuitive Display in White
Product Features
3-speed fan
Give guests control over their comfort with three fan speeds to choose from

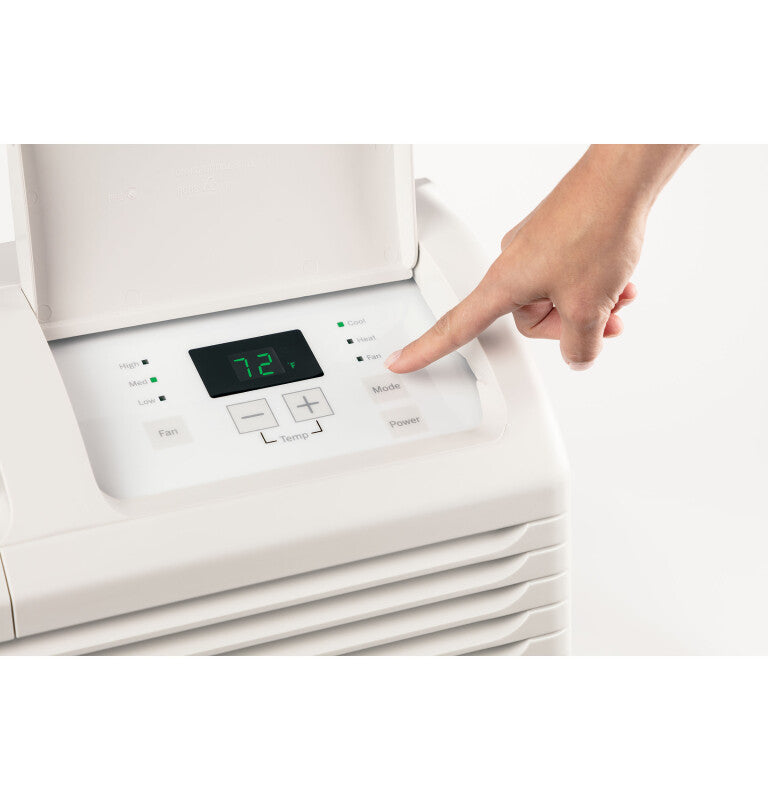

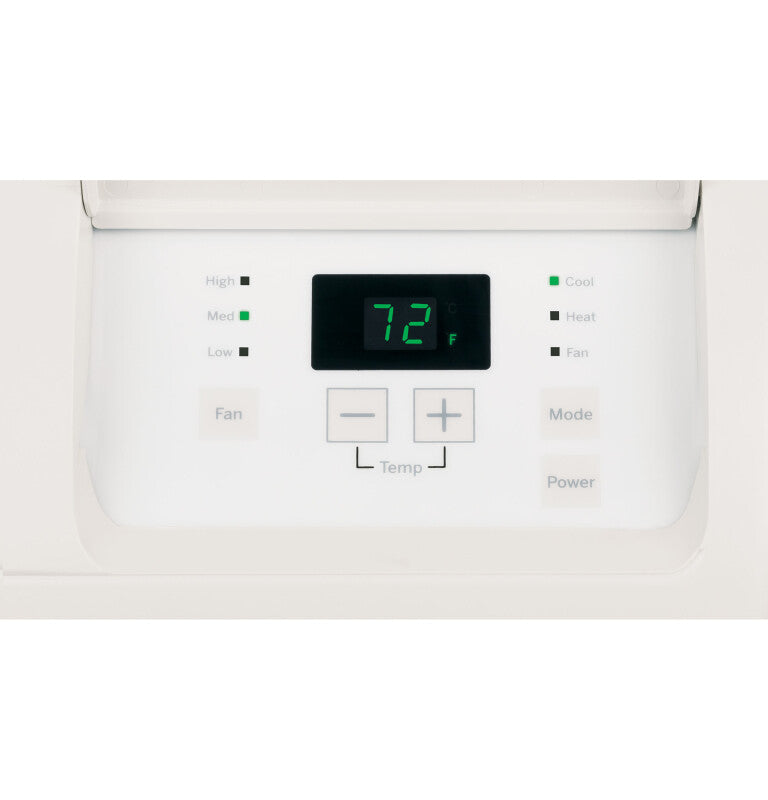

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation
Remote thermostat compatibility
Works with central desk control systems
Heatpump models include staged heating
Tangential fan for air flow and smooth sound
Energy-efficient heat pump models available
Product Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 42 in |
| Overall Height | 16 in |
| Overall Depth | 21 in |
| Approximate Shipping Weight | 140 lb |
| Net Weight | 115.7 lb |
CAPACITY
| Cooling BTUH (MAX) | 12000 Btu |
| CFM Indoor Fan Low | 310 |
| CFM Indoor Fan Medium | 349 |
| CFM Indoor Fan High | 383 |
| Cooling EER (BTUH / Watt) | 10.5 |
| Heating - Reverse Cycle - BTUH | 10800/10500 |
| Cooling BTUH (MIN) | 11800 Btu |
FEATURES
| Control Type | Electronic |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |

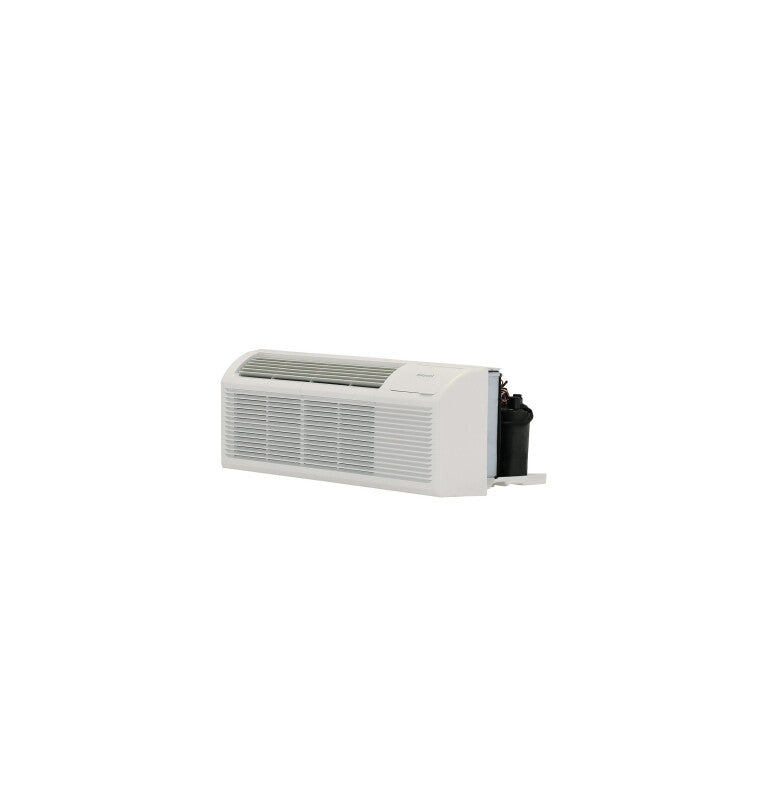

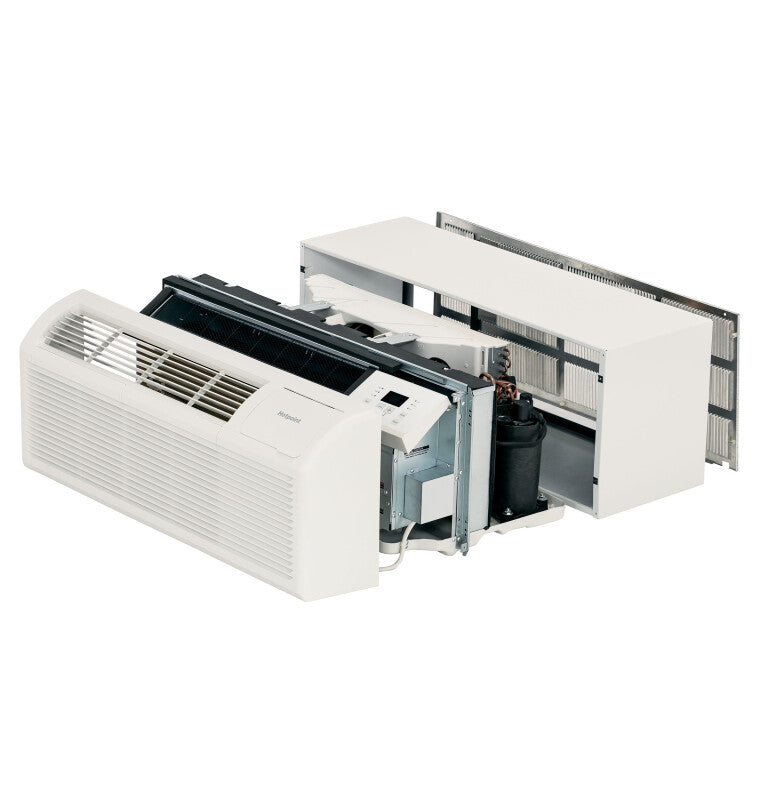

| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Heat Pump | Yes |
| Temperature Range | 62 - 86 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.2 |
| Outdoor Vent / Exhaust | Yes |

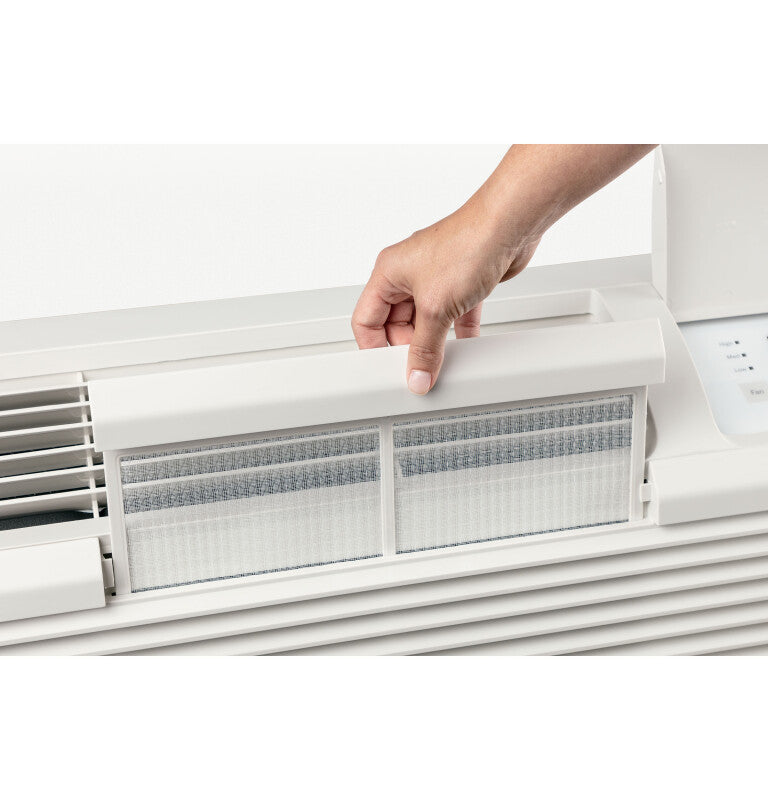

| Venting Features | Concealed Manual Vent Control Vent Air Filter |
| Heating System | Heat Pump with Resistance Backup |
| Venting Features | Concealed Manual Vent ControlVent Air Filter |
| Fan Speed Selections | 3 Fan Only |
| Unit Features | Automatic Emergency Heat |
POWER / RATINGS
| Heating - Reverse Cycle - Watts | 985/960 |
| Cooling - Amperes; F.L. - Cooling | 5.0/5.4 |
| Cooling - Amperes | 5.0/5.4 |
| Cooling - Watts | 1140/1120 |
| Heating - Reverse Cycle - Amps | 4.3/4.6 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3535/2935 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.3/13.7 |
APPEARANCE
| Installation | Through-the-Wall |
| Color Appearance | White |

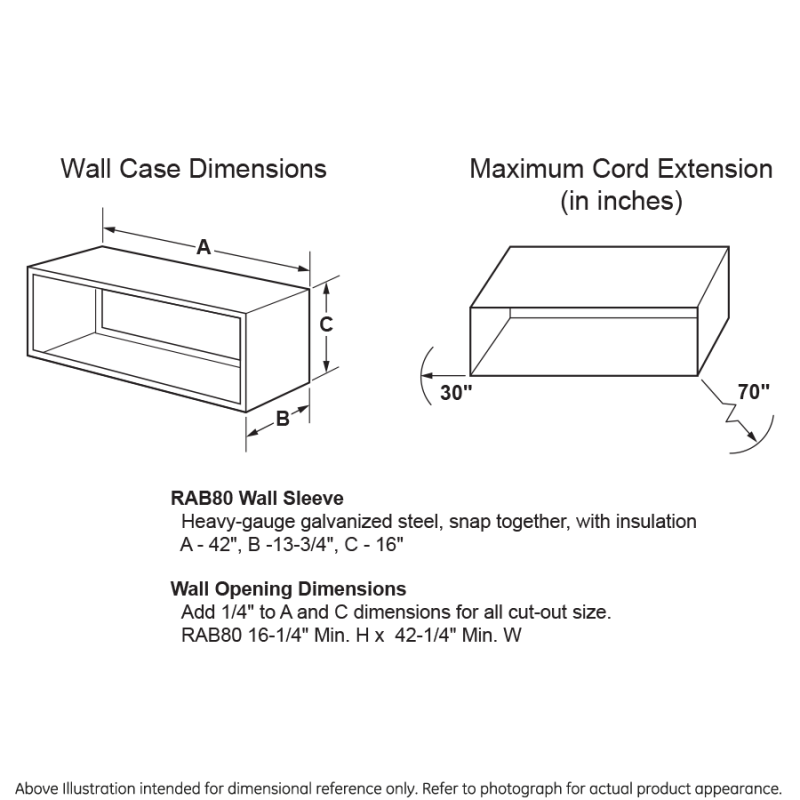

Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 21 in. |
| Weight | 115.7 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 155.7 lbs. |
| Total of Shipping Weight | 155.7 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.17 ft |
| Dimensional Weight | 101.53 lbs. |
| Total of Cubes | 8.17 ft |
| Total of Dimensional Weight | 101.53 lbs. |
Warranty
| Labor (Sealed System) | 5 Year |
| Parts | 5 Year |
Certifications
California Prop 65
