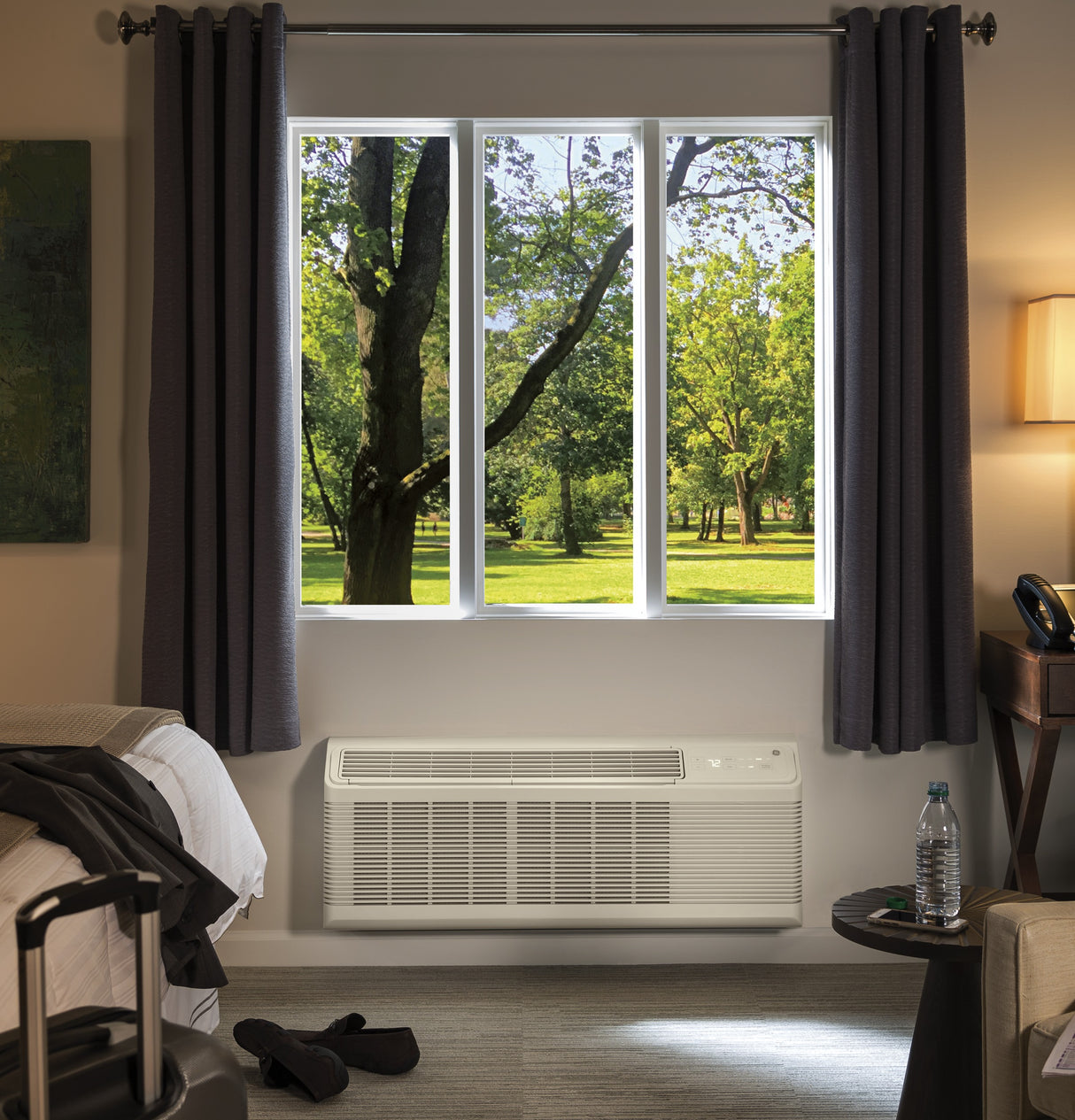

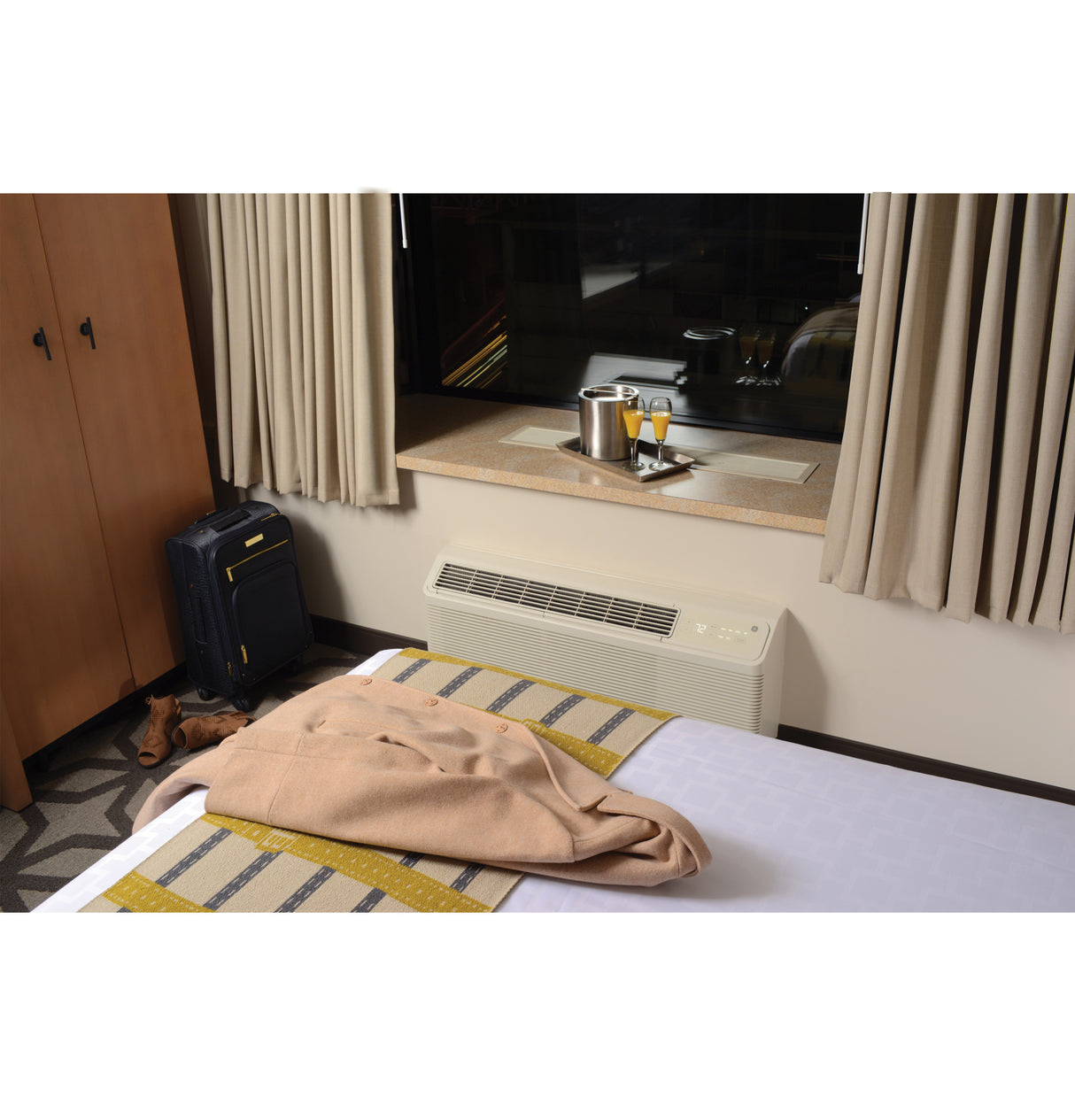

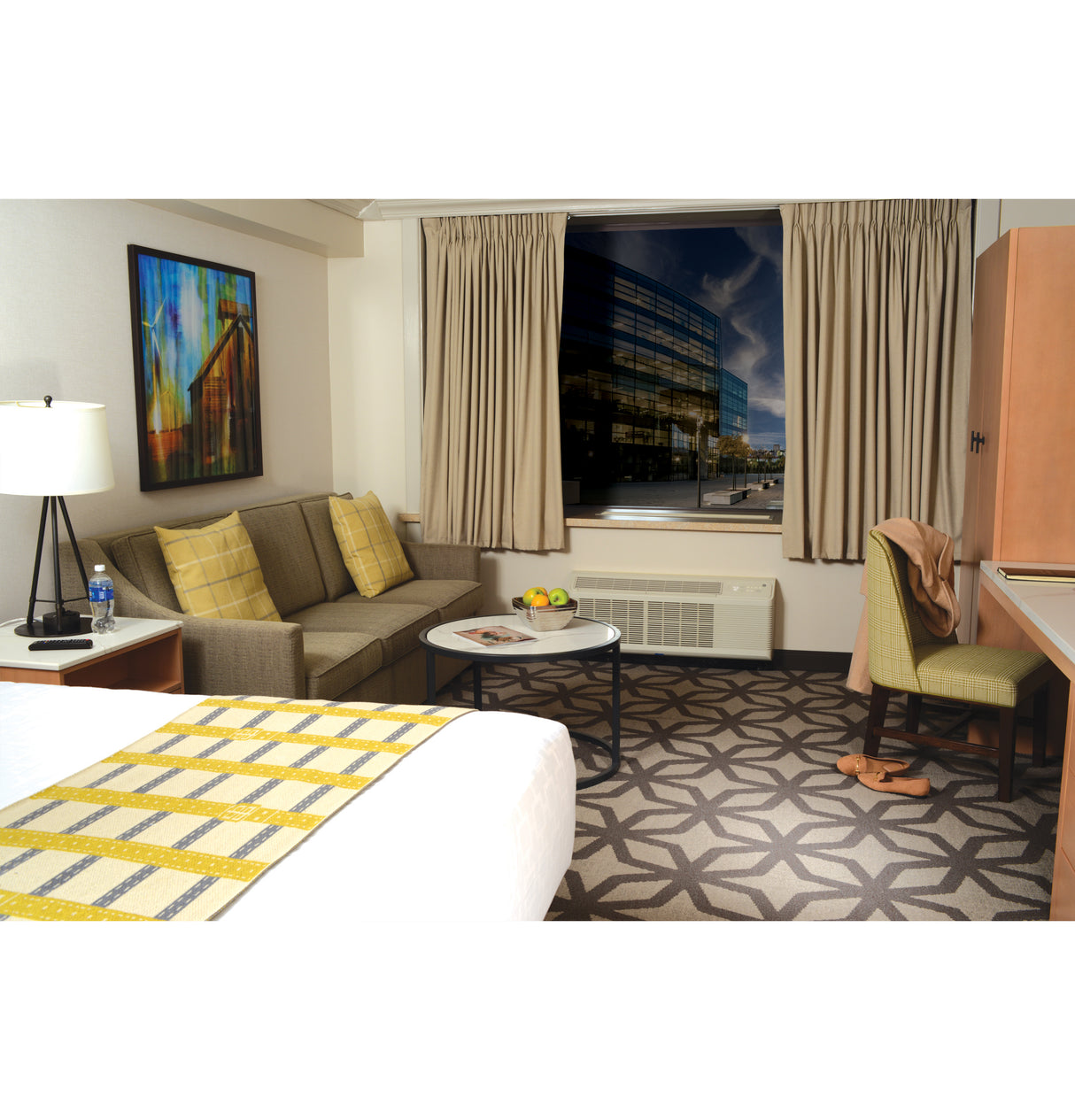

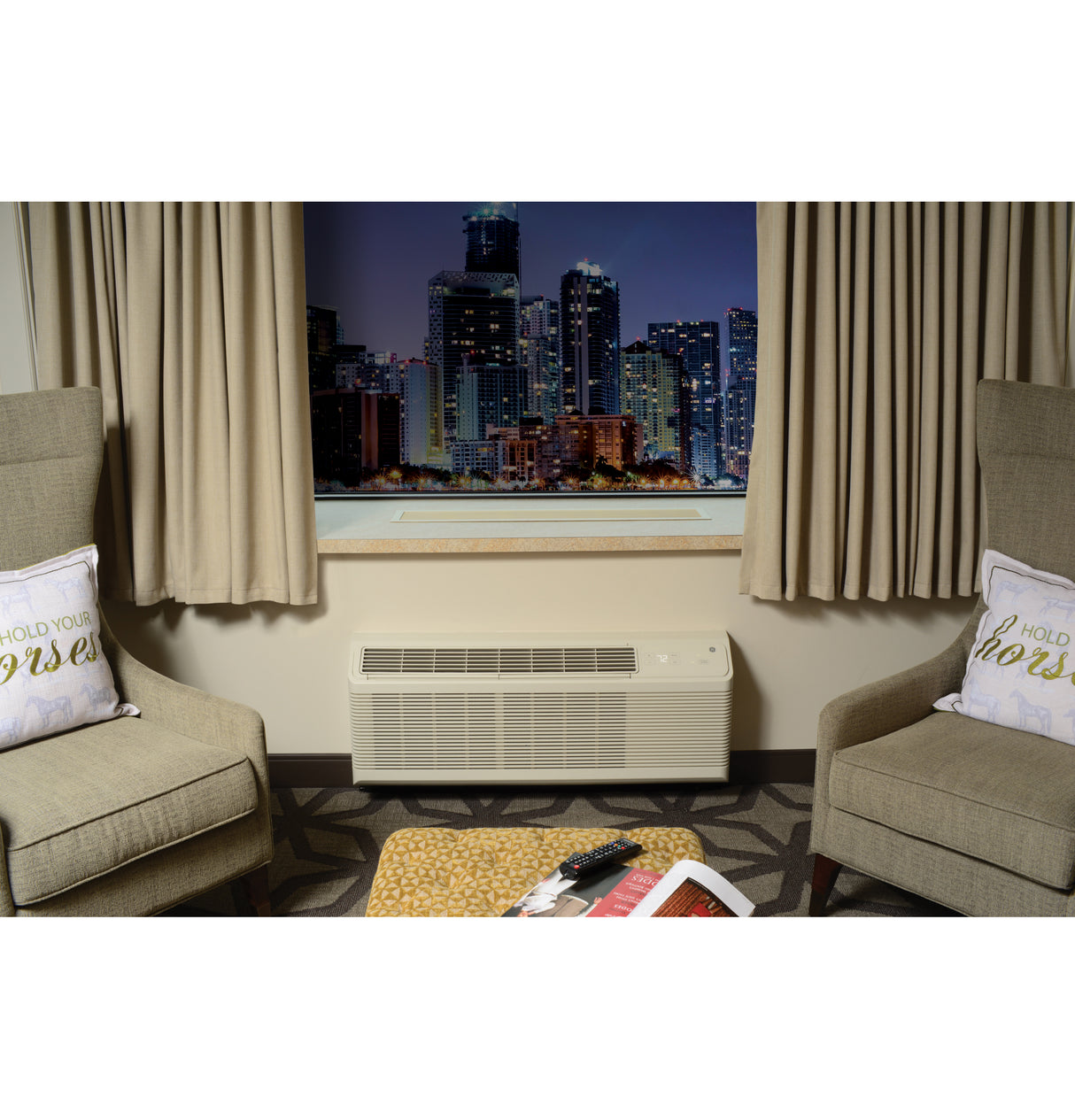

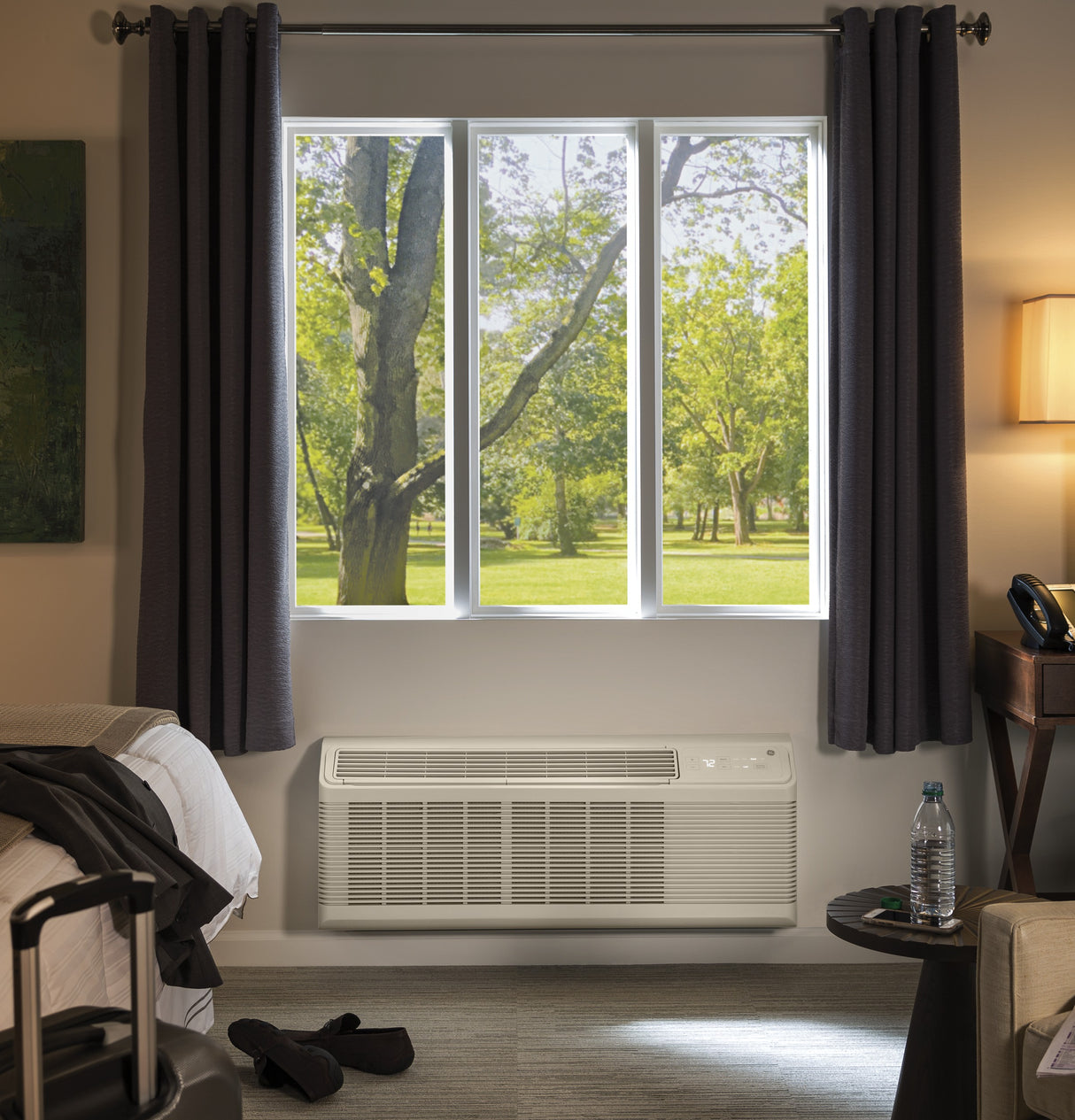

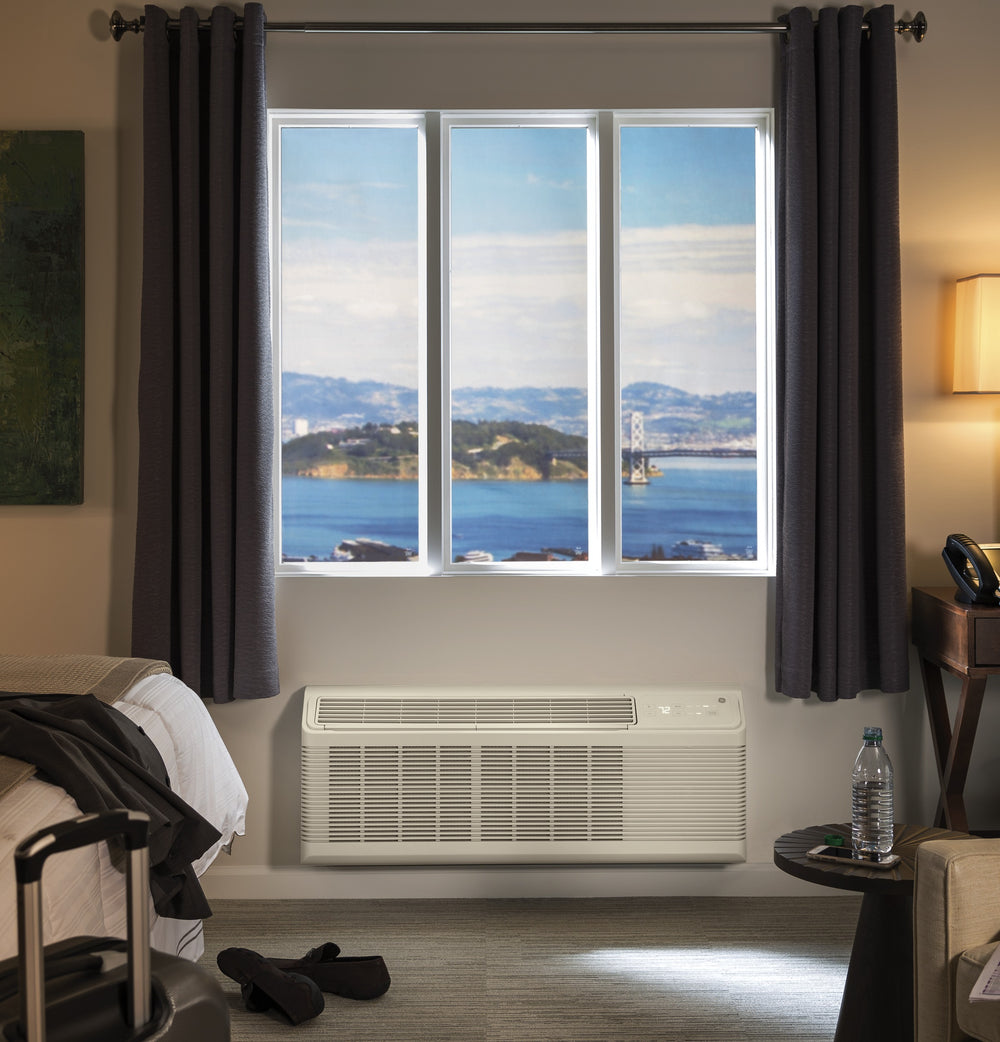

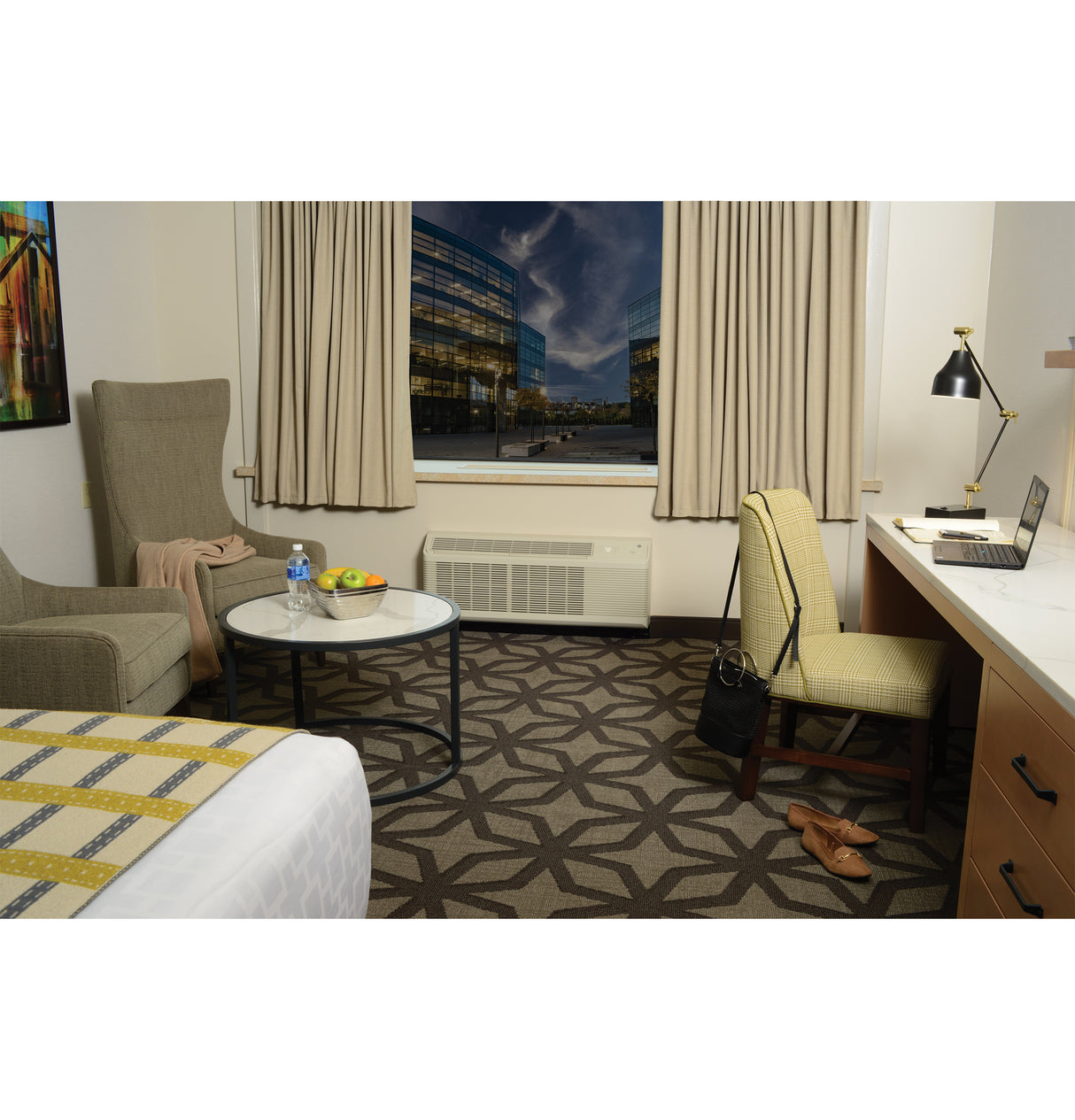

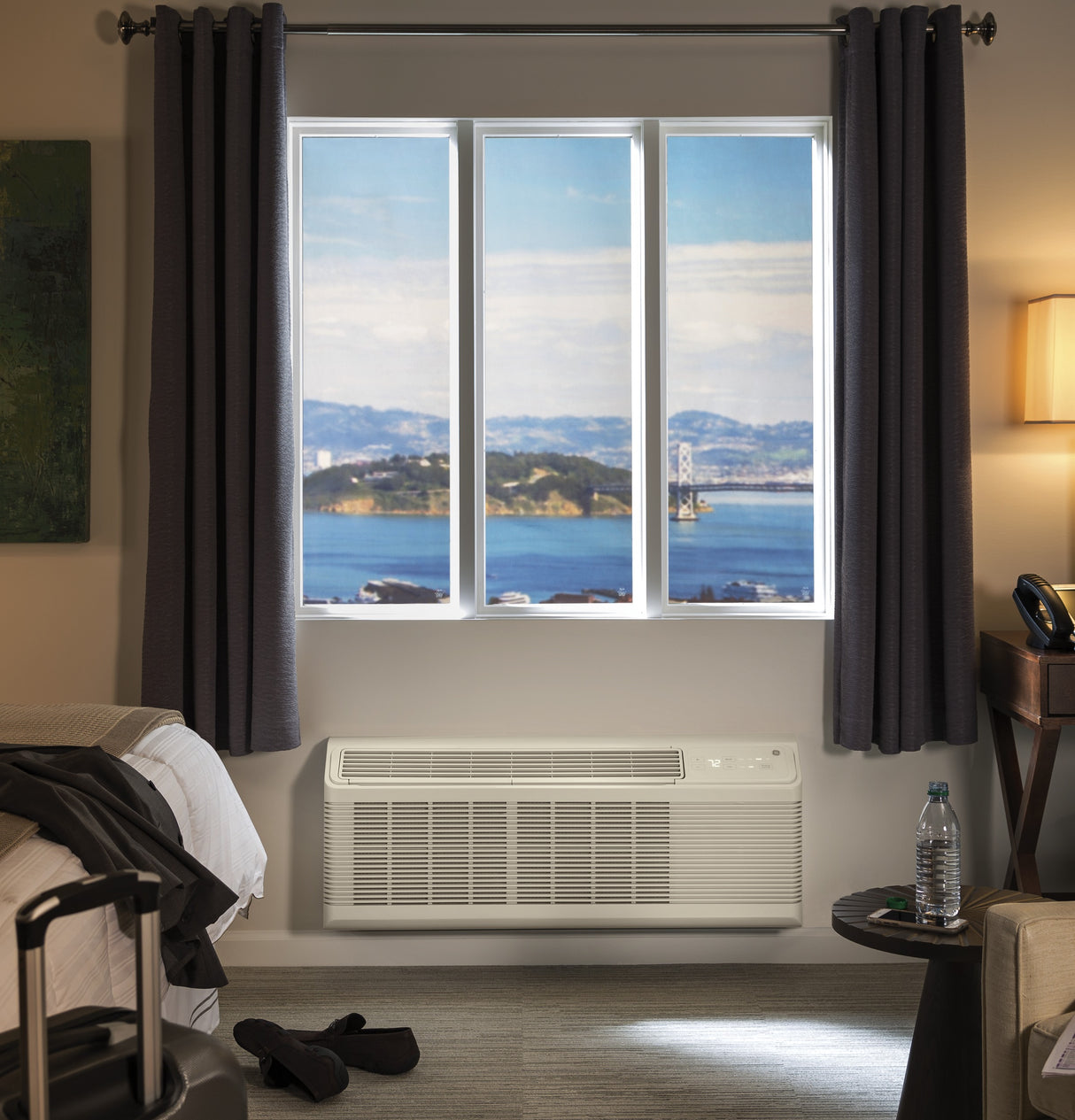

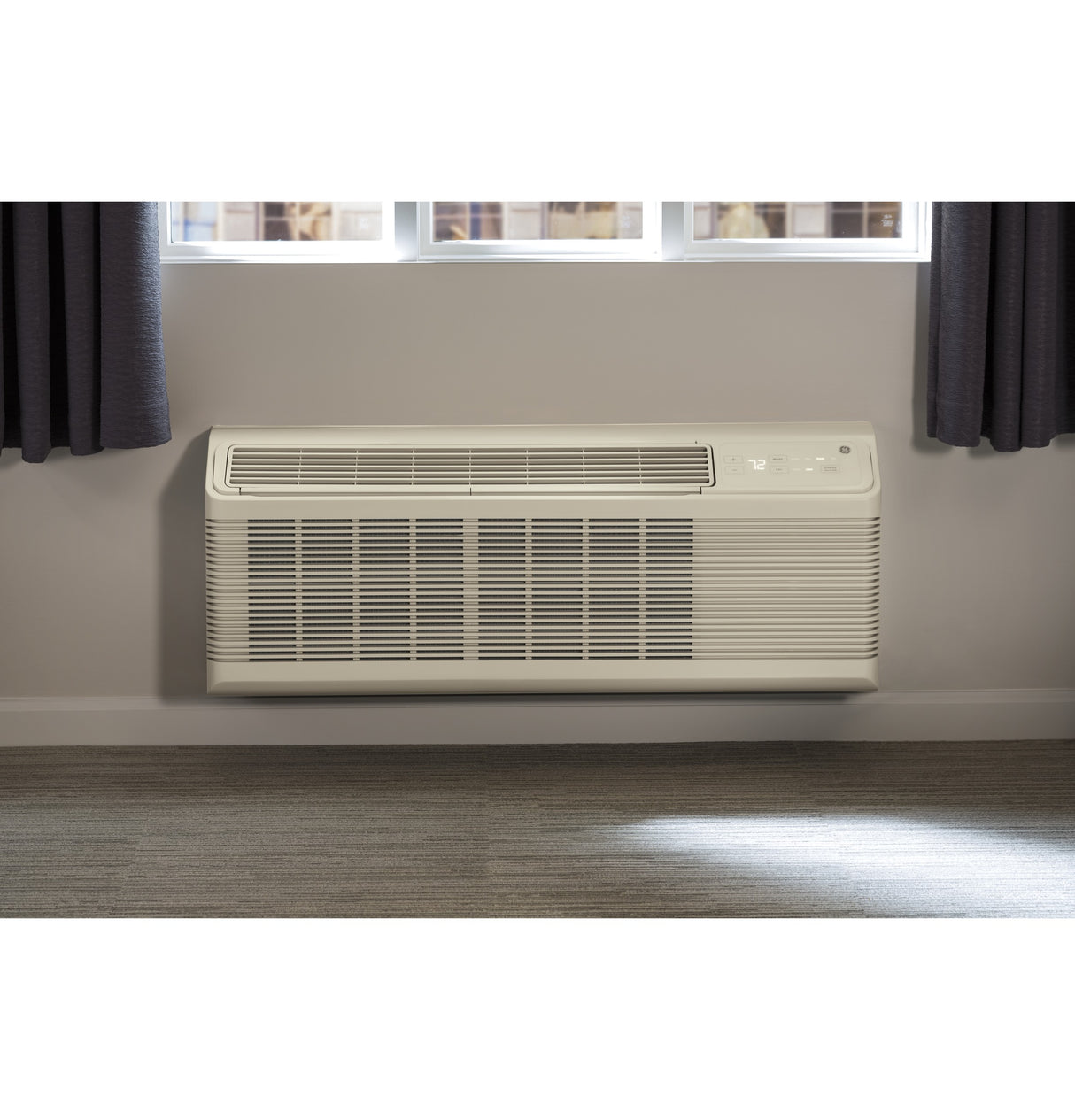

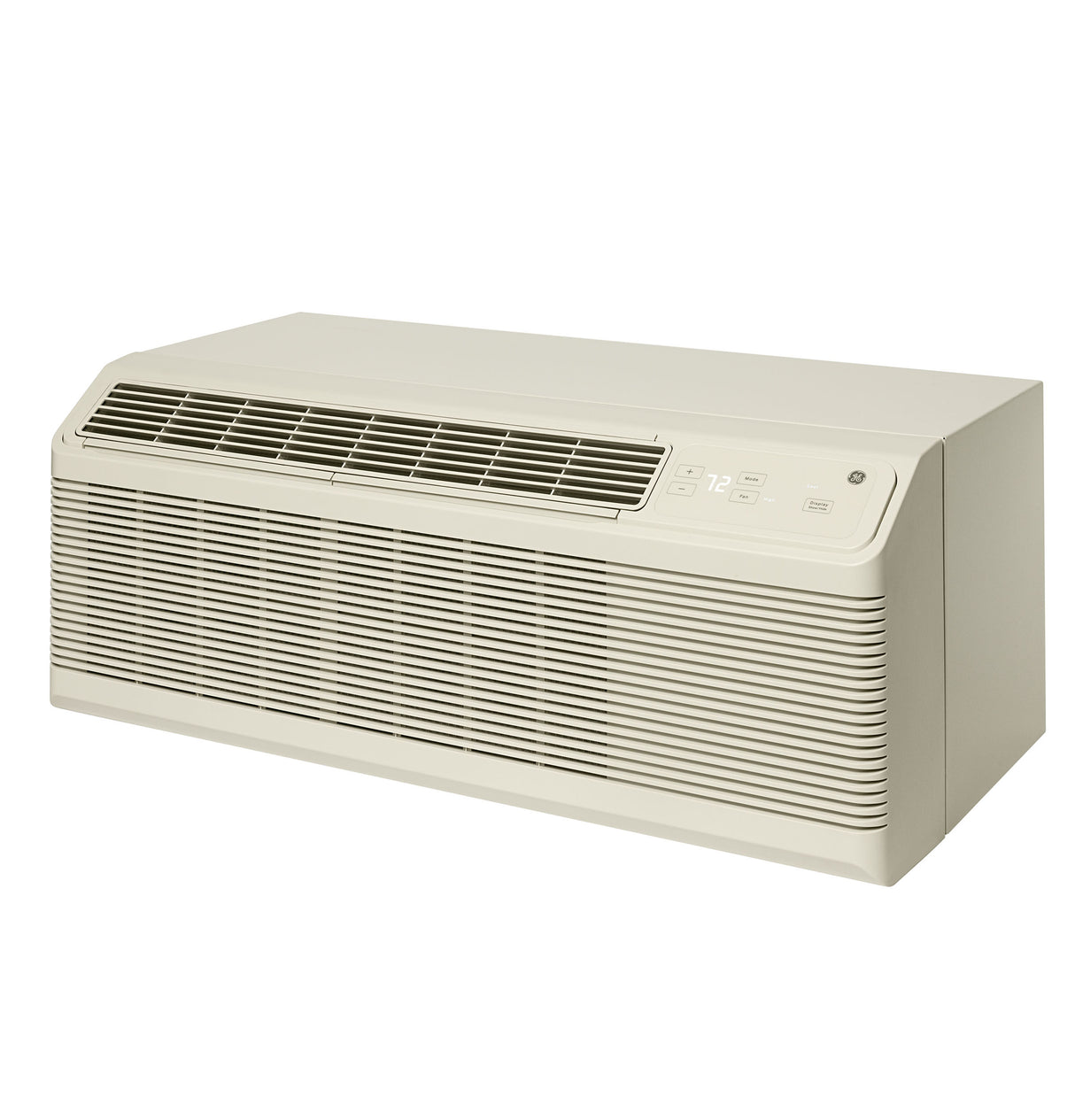

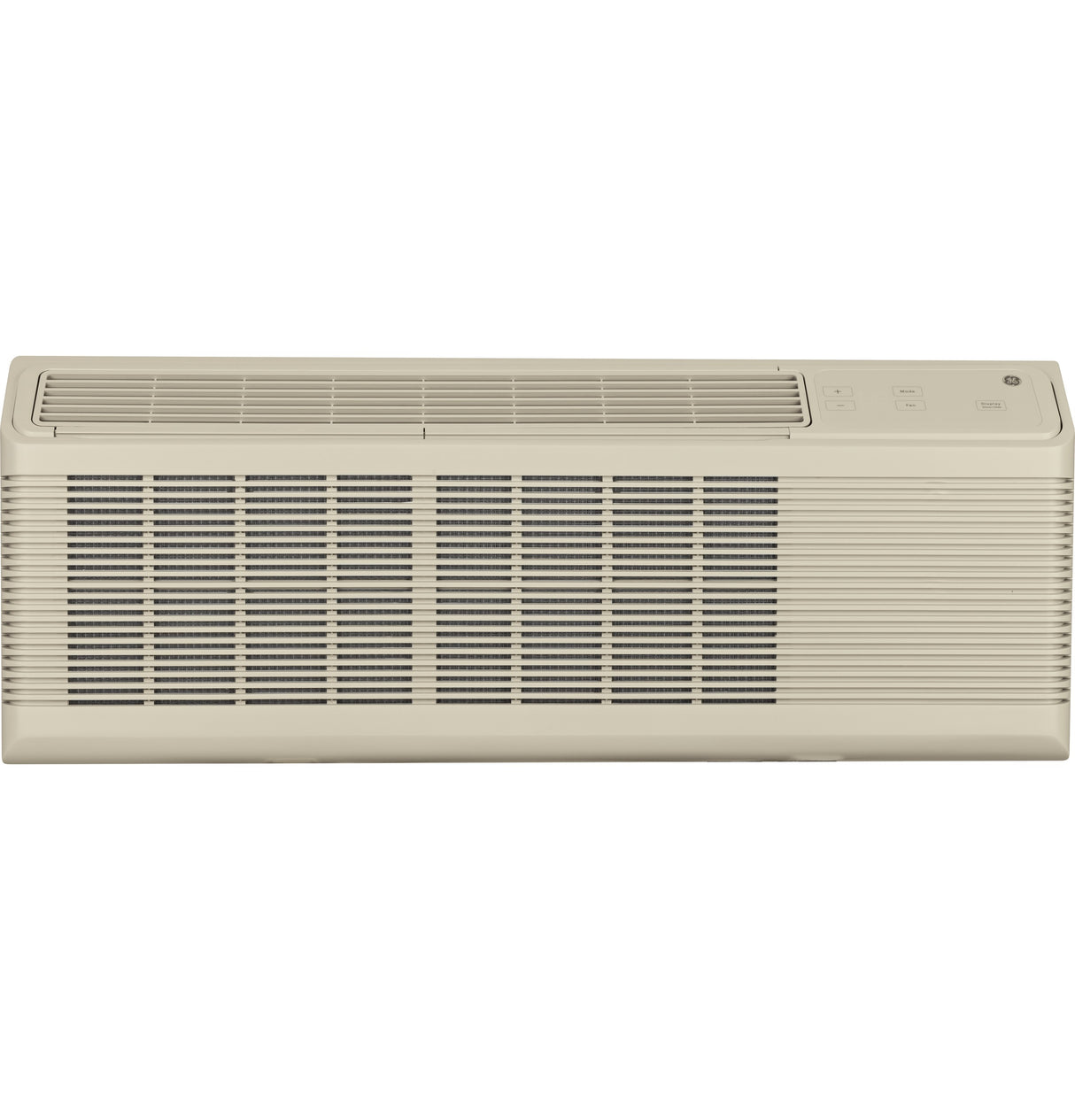

GE Zoneline Heat Pump Unit with ICR, 230/208 Volt - (AZ65H15DAD)
SKU:
AZ65H15DAD
Regular price
$1,558.00
Unit price
/
Unavailable
GE Zoneline Heat Pump Unit with ICR, 230/208 Volt - (AZ65H15DAD) is available for ordering but may require additional time to be fulfilled. Please contact us for details.
Delivery and Shipping
Delivery and Shipping
Local deliveries available in LA, Orange, San Bernardino & Riverside counties in California. Please contact us if you are outside of our service areas.
Key Features
- ✔ Cooling capacity
- ✔ Energy efficiency
- ✔ Dehumidification
- ✔ Reverse cycle heat
- ✔ Heat pump efficiency
- ✔ Indoor fan CFM (high/low)
- ✔ Fresh air vent CFM (fully open high fan)
- ✔ Quiet operation
- ✔ Internal condensate removal
- ✔ Heat & Freeze Sentinels
- ✔ Boost heat option
- ✔ Electronic temperature limiting
- ✔ Electronic touch controls with LED display
- ✔ R-410A refrigerant
- ✔ SMC base pan
Documents
GE Zoneline Heat Pump Unit with ICR, 230/208 Volt - (AZ65H15DAD)
Regular price
$1,558.00
Unit price
/
Unavailable
Description
Zoneline Heat Pump Unit with ICR, 230/208 Volt
Product Features
Energy efficiency
10.3/10.3 EER
Quiet operation

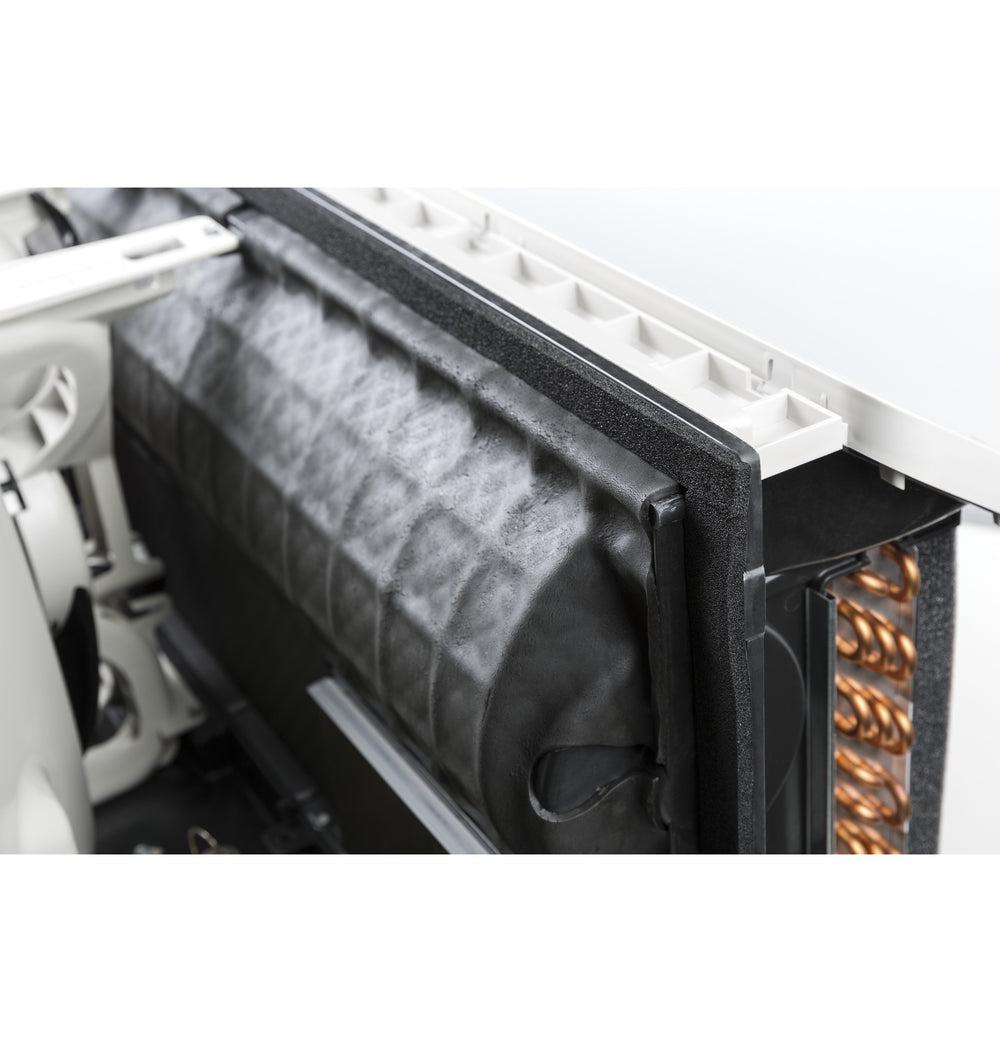

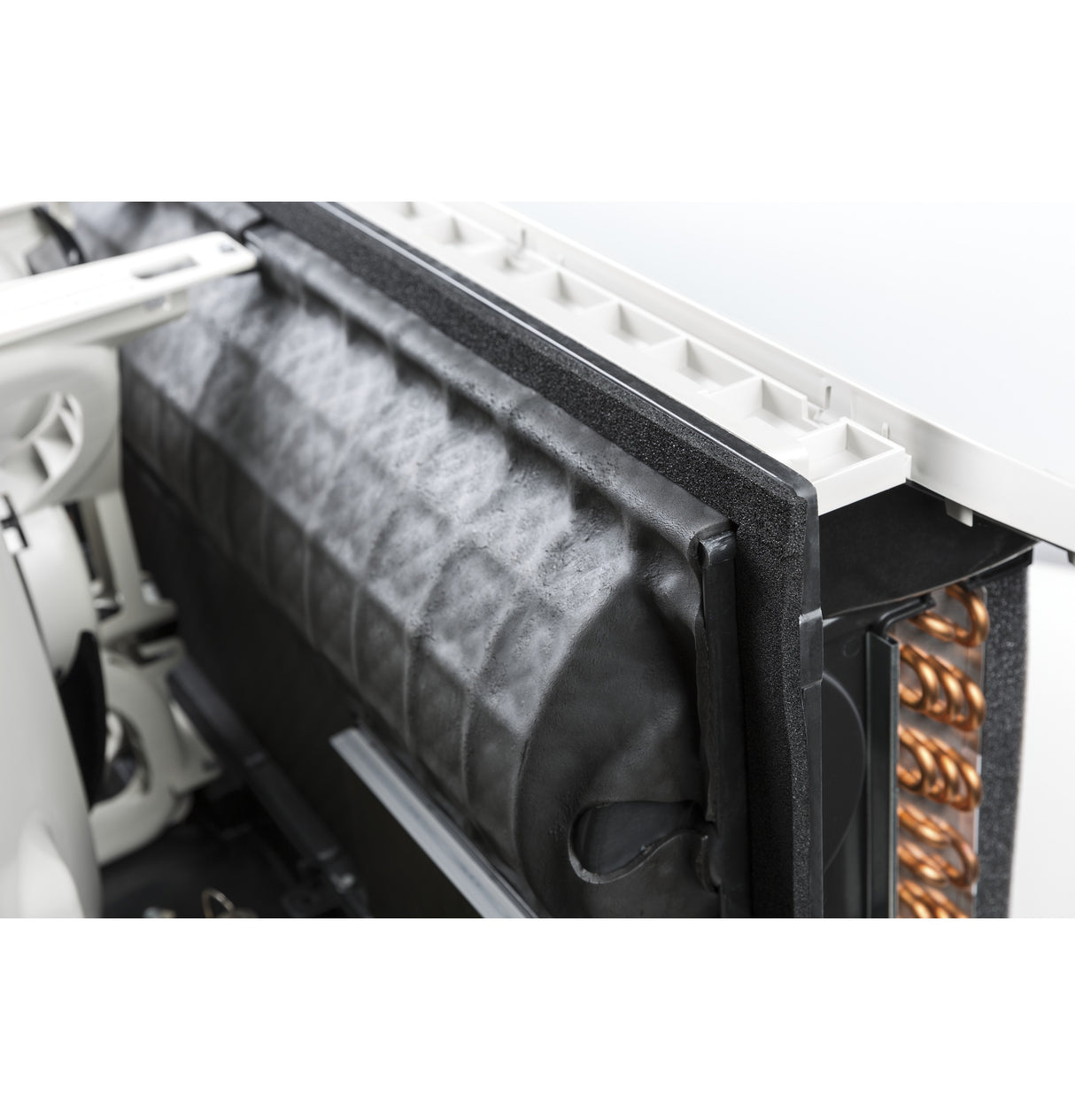

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

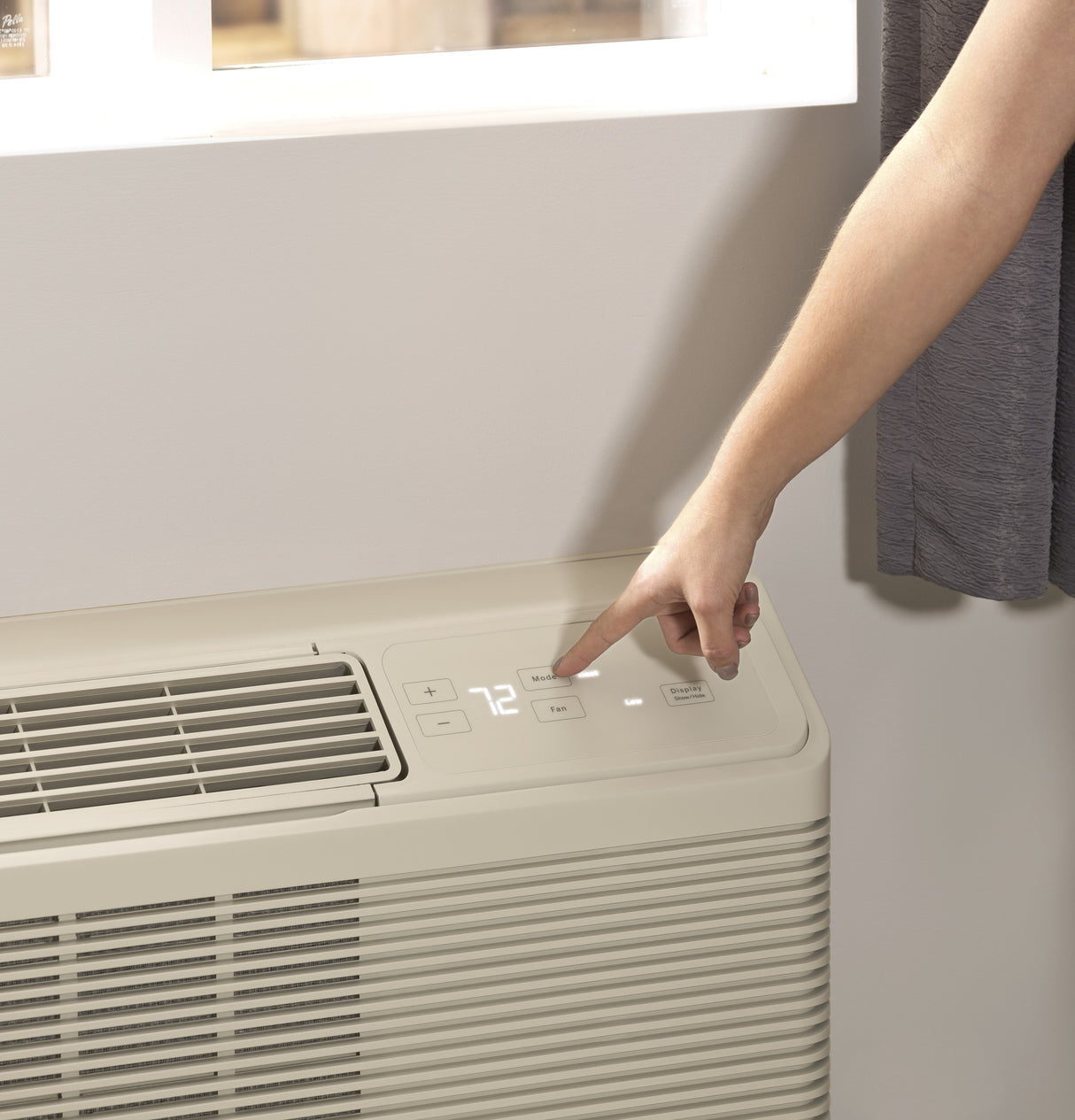

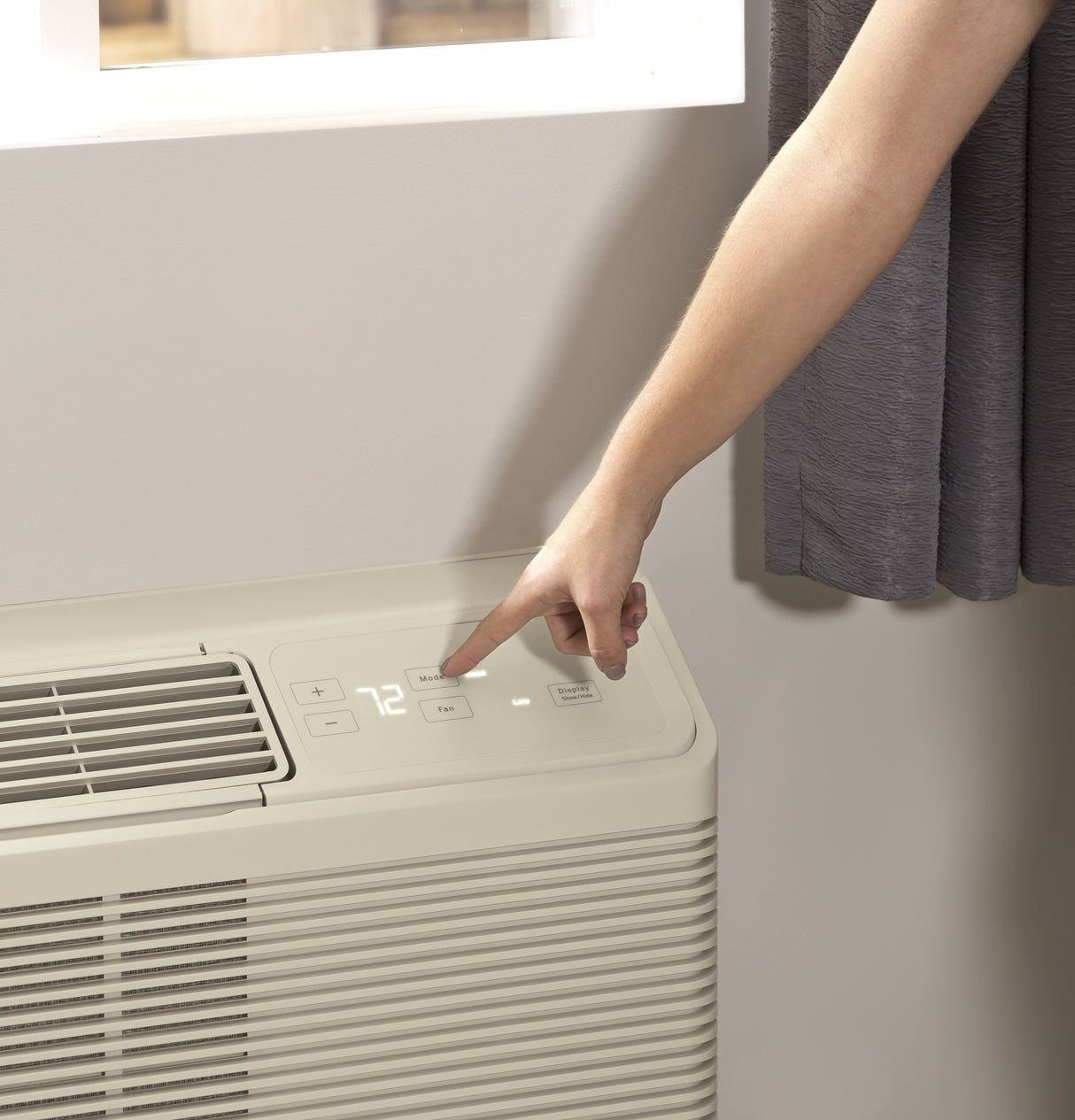

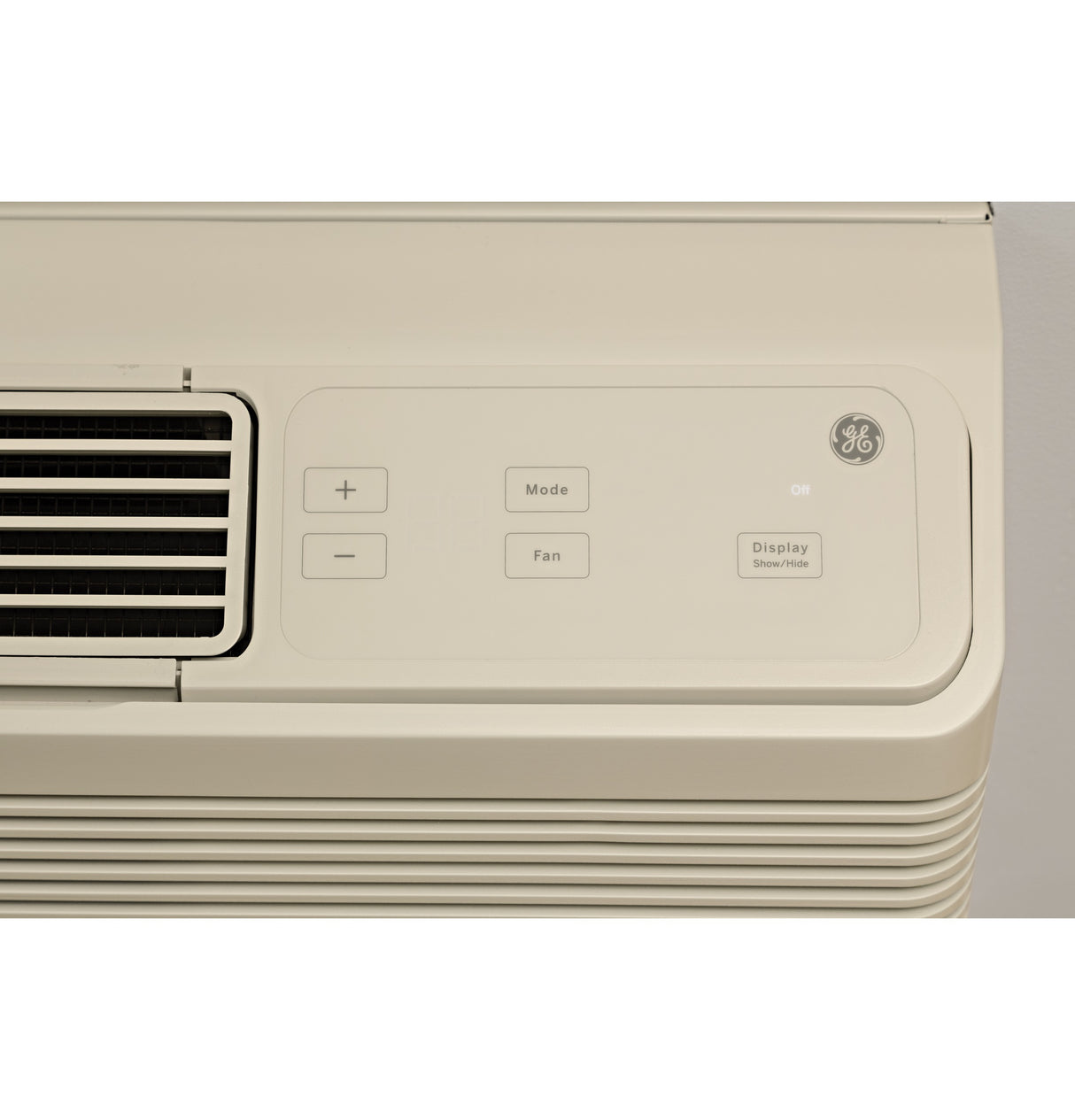

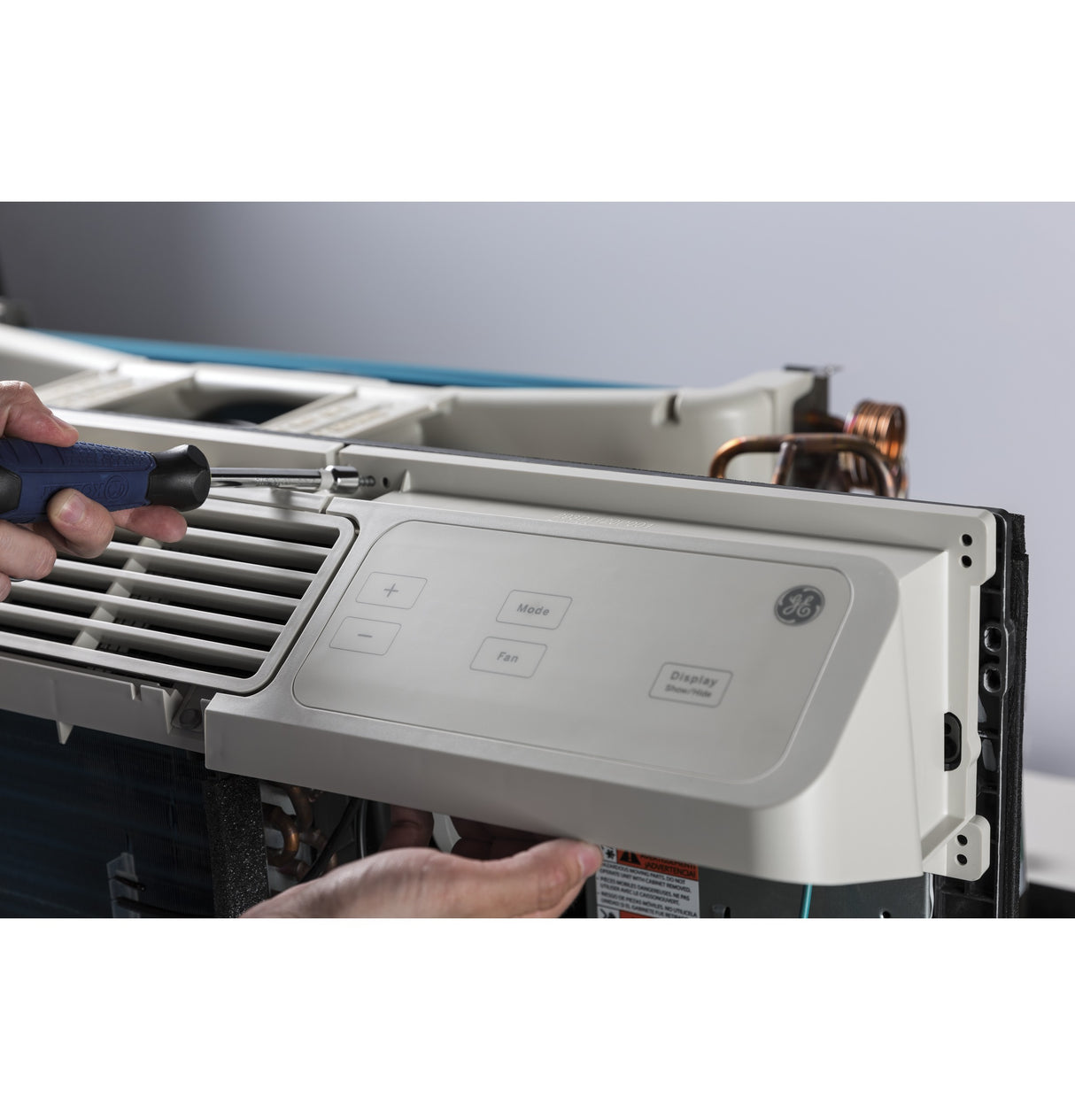

Electronic touch controls with LED display
Cooling capacity
14,300/14,100 BTU
Dehumidification
4.8 pints/hour
Reverse cycle heat
13,500/13,400 BTU
Heat pump efficiency
3.2/3.2 COP
Indoor fan CFM (high/low)
449/290
Fresh air vent CFM (fully open high fan)
44

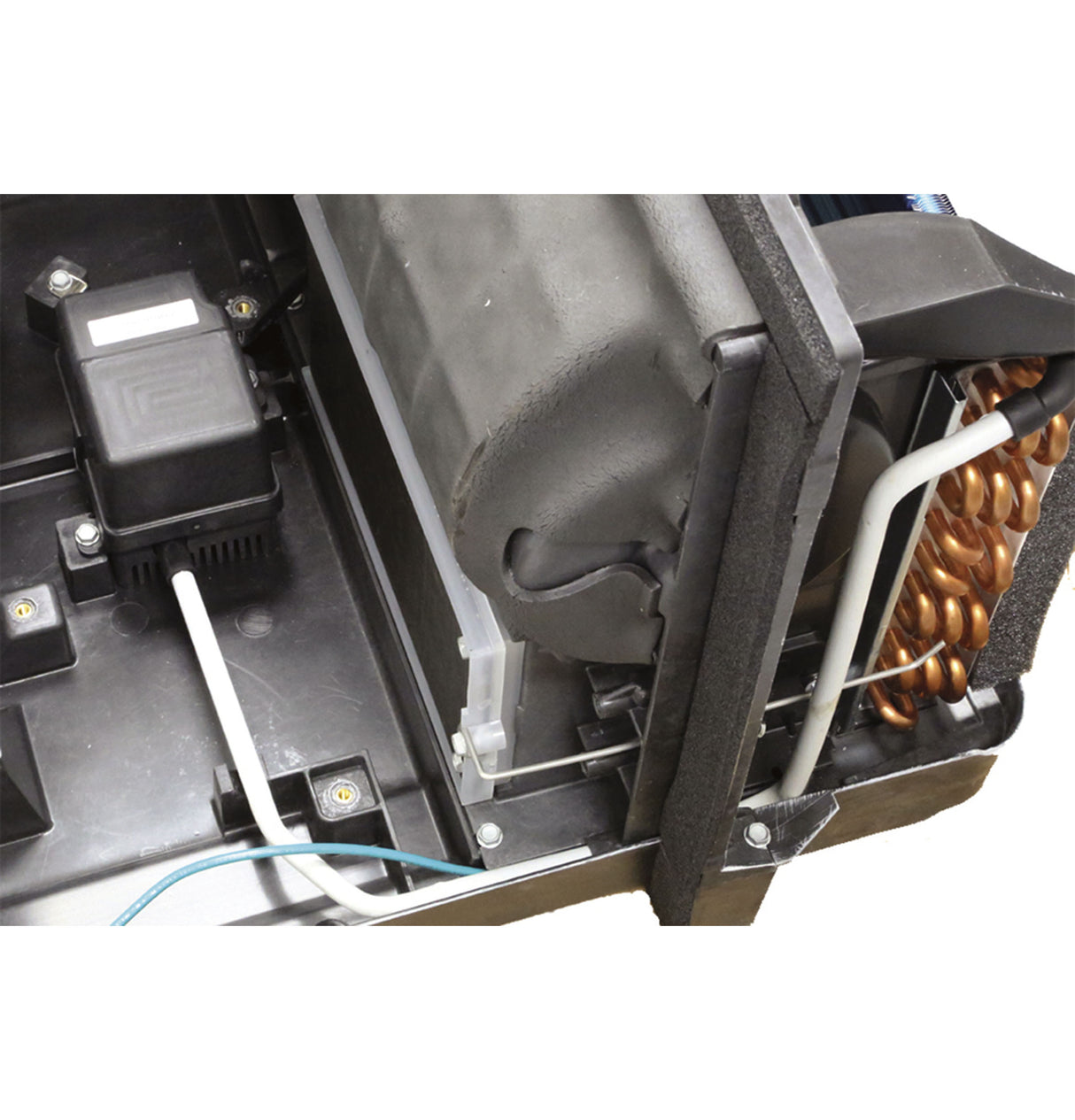

Internal condensate removal
Minimizes condensate draining from the unit during heat pump operation
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Boost heat option
Provides supplemental resistance heat in heat pump mode
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
R-410A refrigerant
SMC base pan
Product Specifications
CAPACITY
| Vent CFM (high fan at zero ESP) | 44 |
| Cooling BTUH (MAX) | 14100 |
| Dehumidification (pts./hr.) | 4.8 |
| CFM Indoor Fan High | 400 |
| CFM Indoor Fan Low | 290 |
| Cooling BTUH (MIN) | 14100 |
| Cooling EER (BTUH / Watt) | 10.3/10.3 |
| Heating - Reverse Cycle - BTUH | 13500/13400 |
FEATURES
| Fan Cycle Switch | Yes |
| Discharge Grille | 2-position |
| Heat - Cool | Yes |
| Rotary Compressor | Yes |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Heating - Reverse Cycle - COP | 3.2/3.2 |
| Power Factor | 97 |
| Vent Control | 3-position |
| Manual Vent Control | Hidden |
| Heating System | Heat Pump |
| Internal Condensate Removal (ICR) | Yes |
| Louver Style | Reversible |
| Fan Speed Control | Yes |

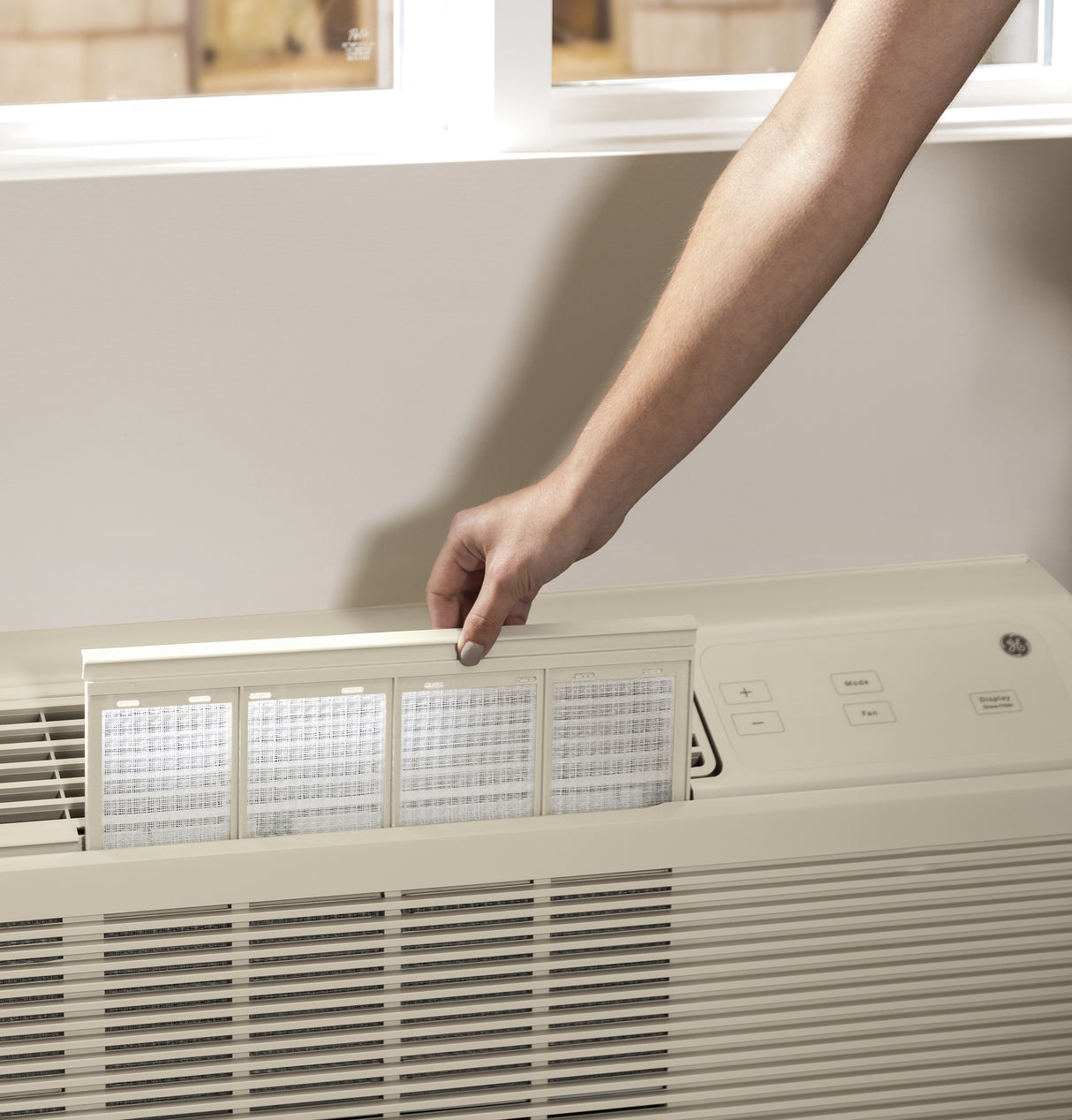

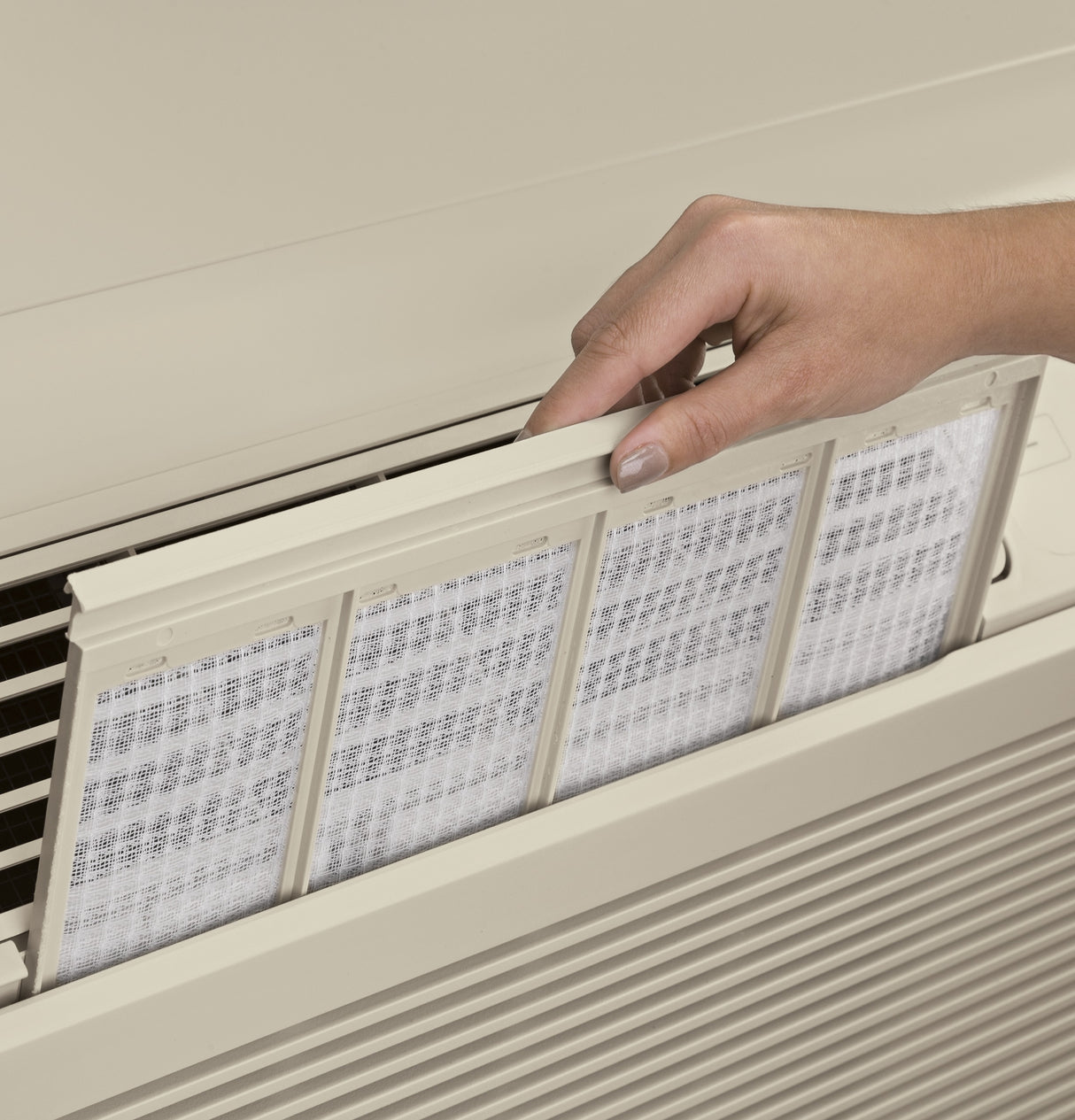

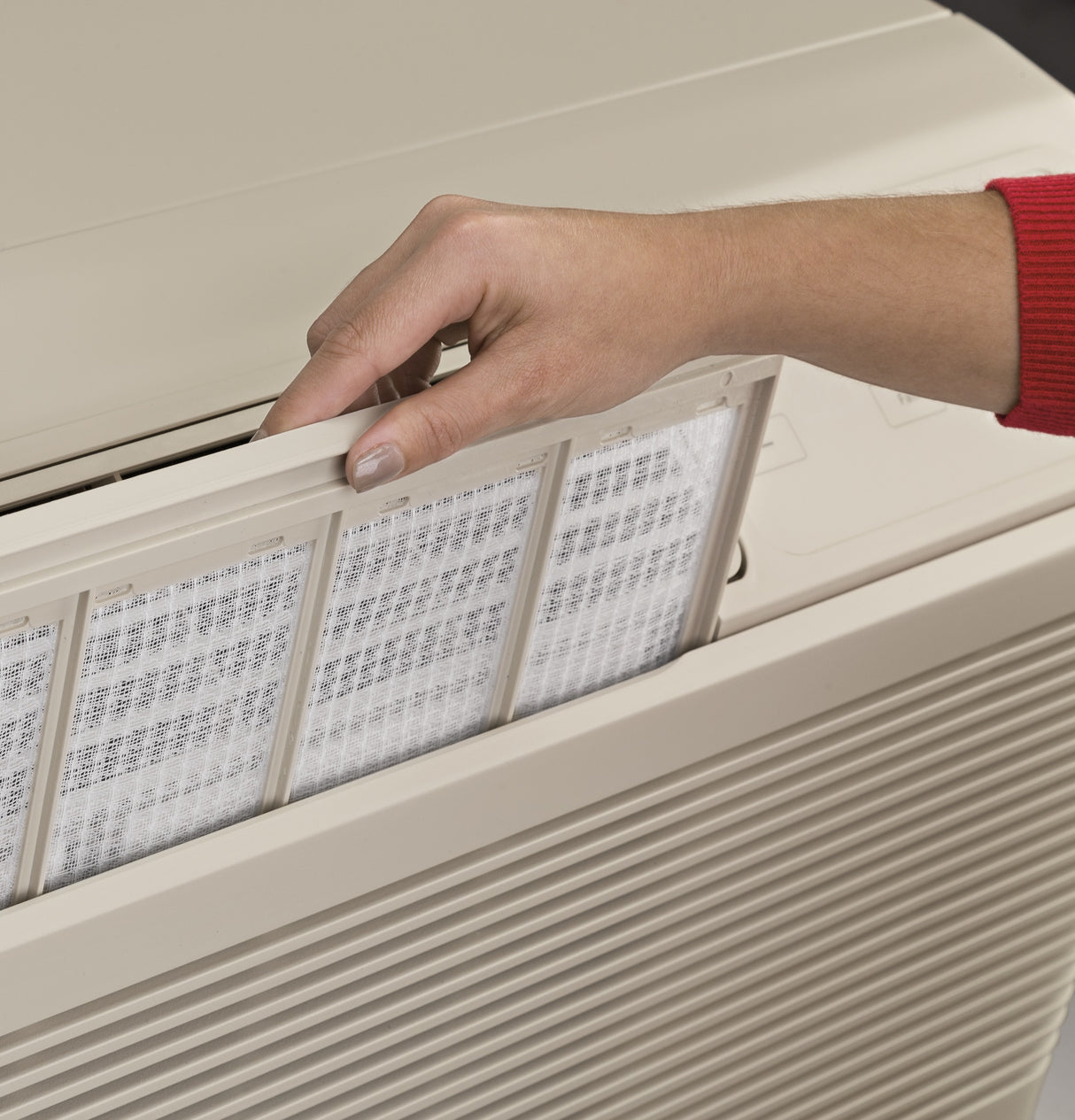

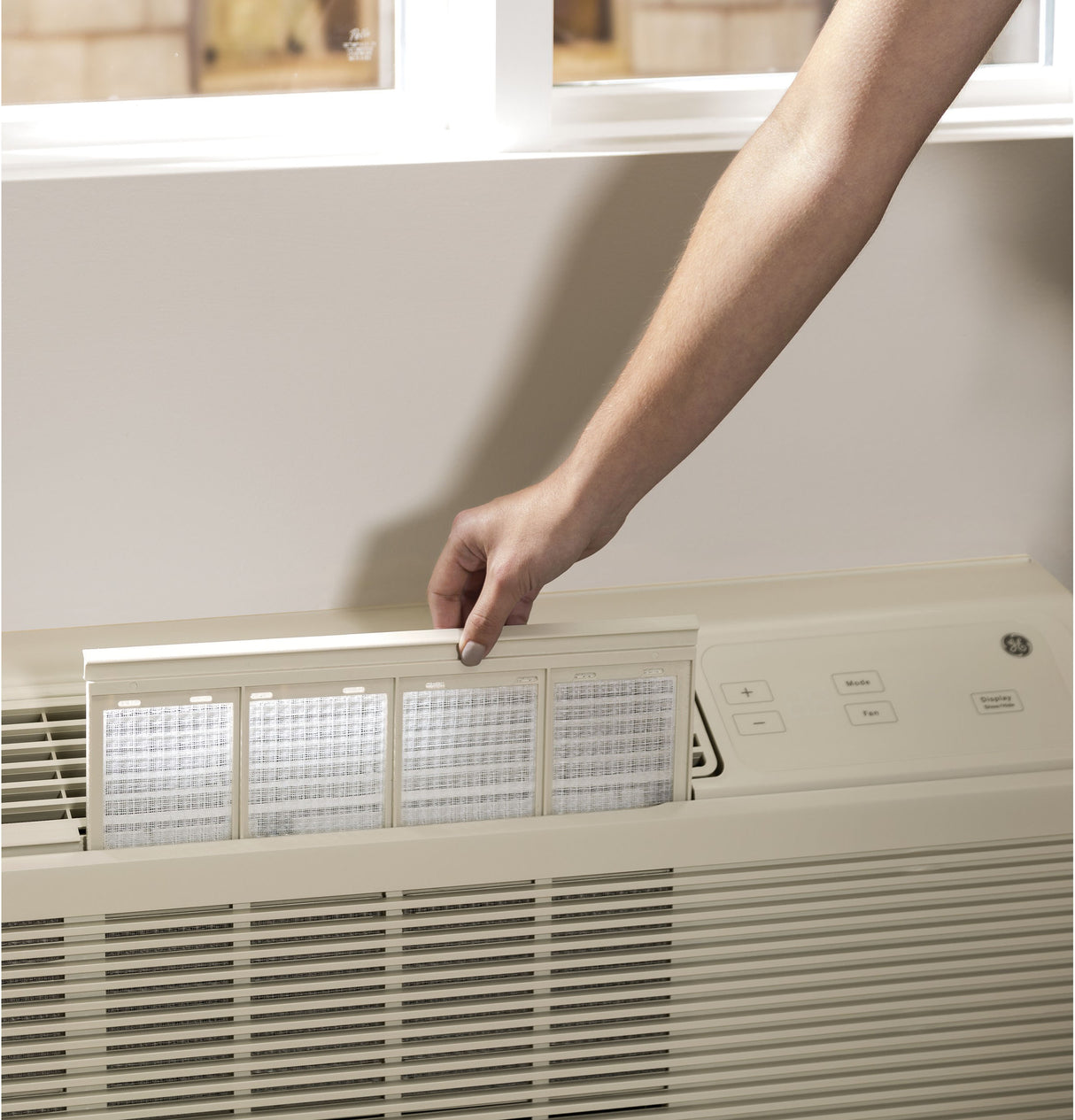

| Filter Type | Rigid Frame |
| Filter Type | Slide-Out |
| Temperature Range | 60 - 85 F |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Electronic Micro Computer Control | Yes |
| Zoneline Features | "Sleep" Mode |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | 3-Stage Heating Design |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Emergency Heat |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Central Desk Control Compatibility |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Pump with Resistance Heat Backup |
| Zoneline Features | Heat Pump with Supplemental Resistance Heat |
| Zoneline Features | Heat Sentinel |
| Zoneline Features | Proportional - Integral ID Airflow |
| Zoneline Features | Quick Heat Recovery |

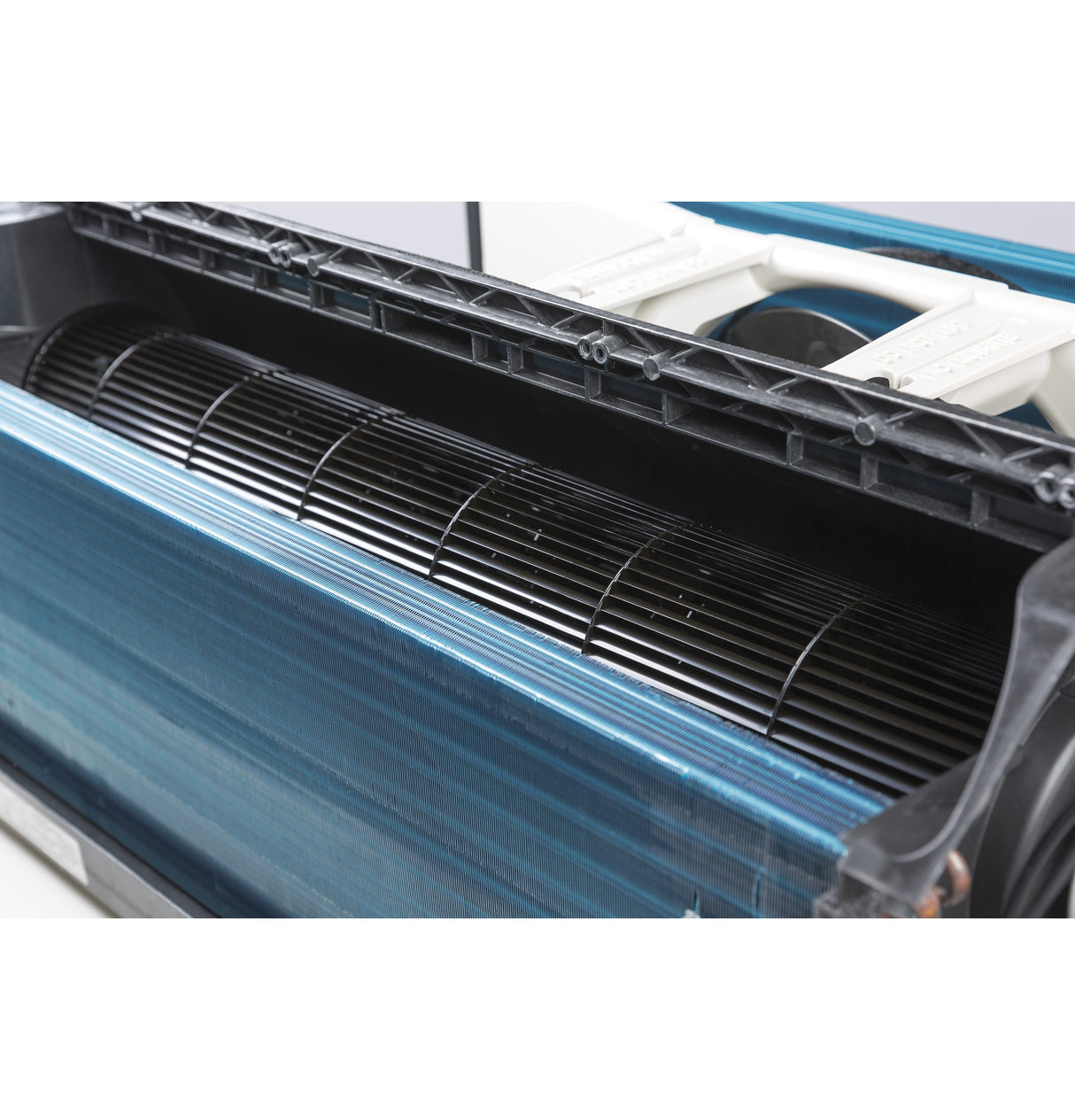

| Zoneline Features | Random Twist/Length Segment Tangential Blower |
| Zoneline Features | Remote Thermostat Compatibility |
| Zoneline Features | Reverse Cycle Defrost |
| Zoneline Features | Universal Heaters |

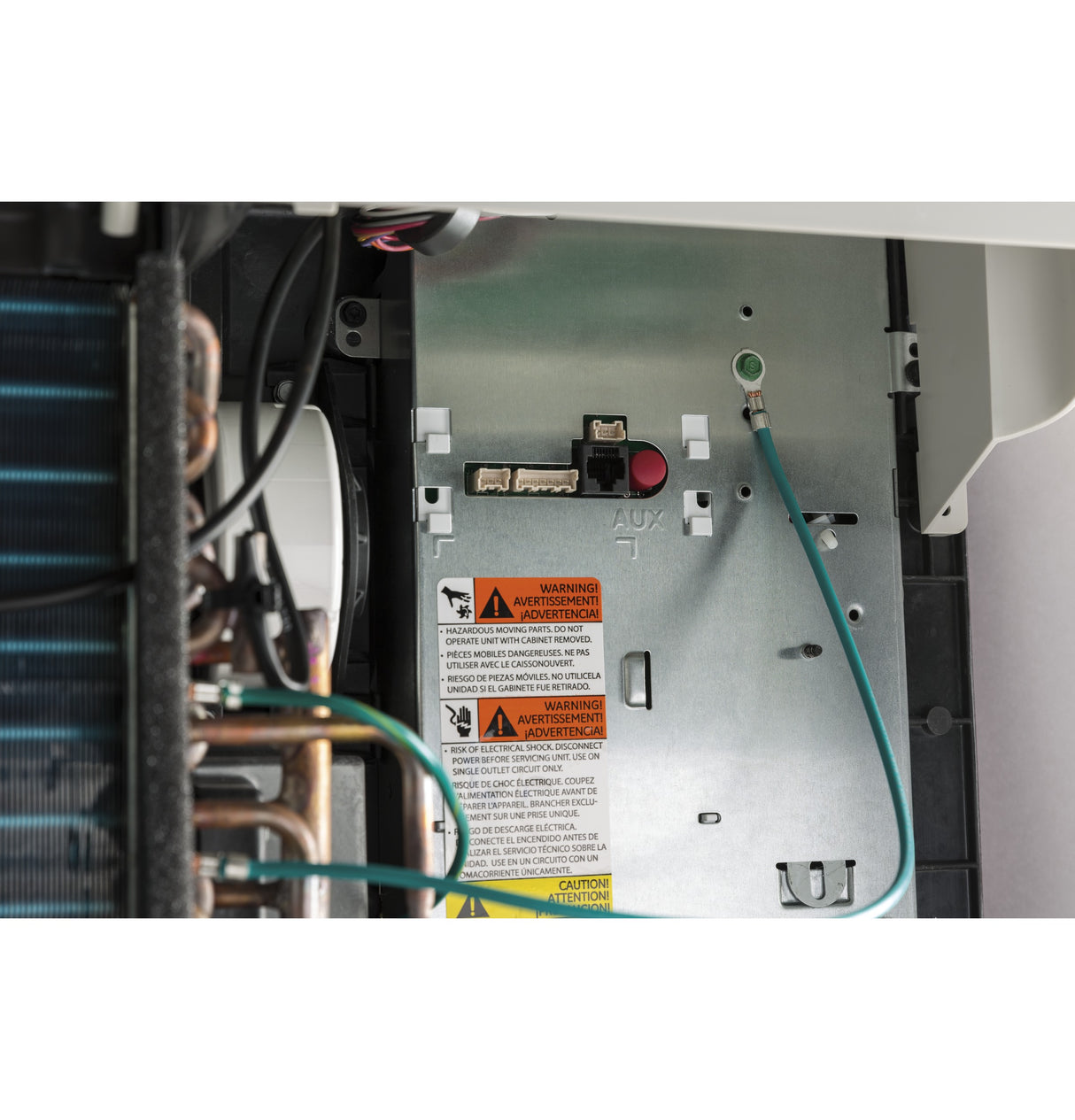

| Zoneline Features | Weather Protected Electrical Components |
| Sensible Heat Ratio | 60% |

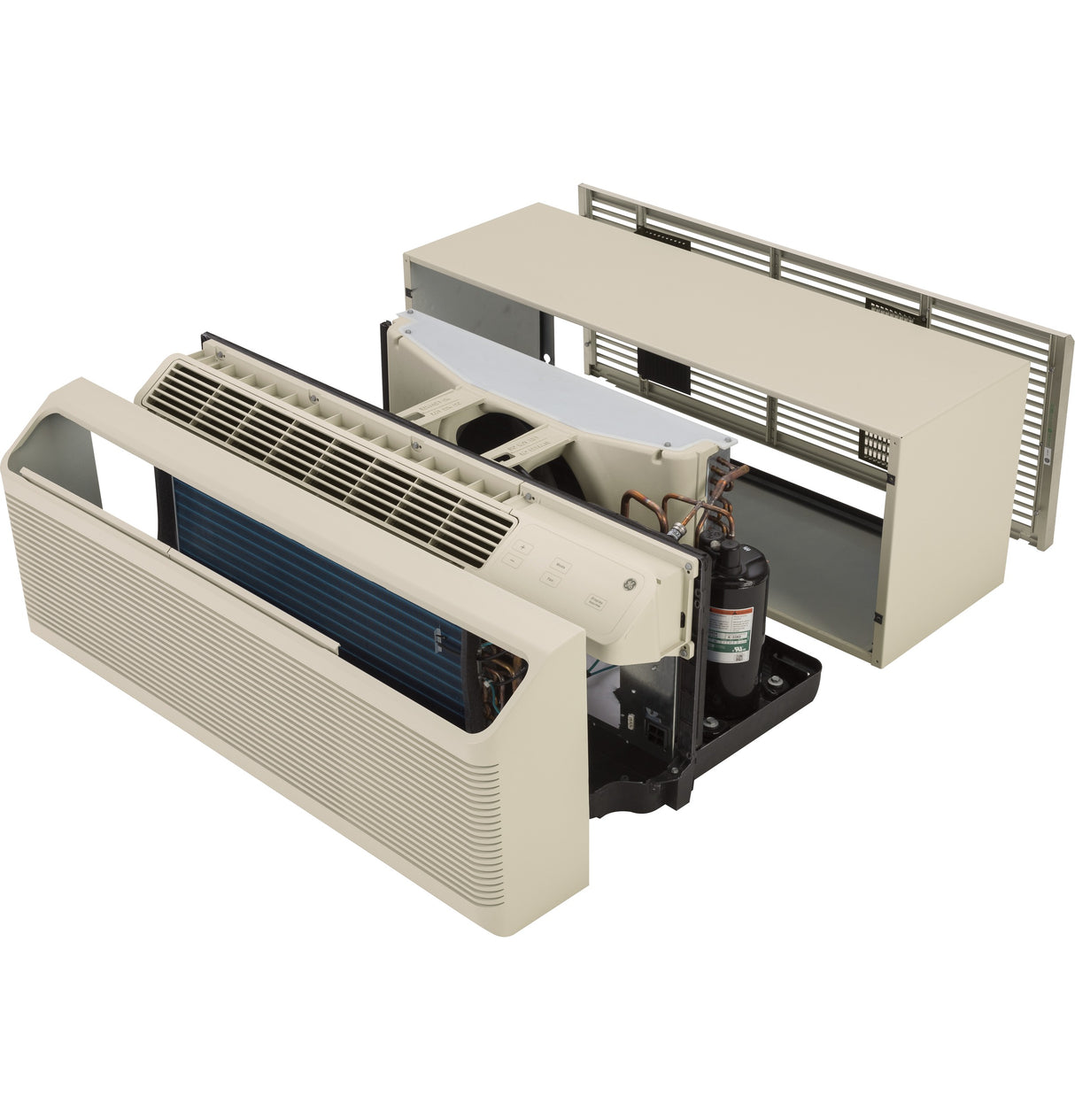

| Chassis Type | Slide-In |
| Venting Features | Concealed Manual Vent ControlVent Air FilterOutdoor Vent Control - 3 Positions |
| Control Type | Standard Microcomputer |
| Control Type | Tactile touch pad with LED Display |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Fan Only |
| Fan Speed Selections | Hi/Low Heating |
POWER / RATINGS
| Cooling - Amperes; F.L. - Cooling | 6.1/6.6 |
| Voltage (MIN) | 208 |
| Cooling - Amperes | 6.1/6.6 |
| Cooling - Watts | 1385/1360 |
| Heating - Reverse Cycle - Watts | 1235/1225 |
| Heating - Reverse Cycle - Amps | 5.3/5.6 |
| Cooling - Amperes; L.R. | 31.5 |
| Voltage (MAX) | 230 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 5-year sealed refrigerating system |
FILTER
| App Filter - Dry Air 25 | No |
| App Filter - Cooling BTUh | 12999 and up |
| App Filter - Product Type | Zoneline PTAC |
| App Filter - Heat | Heat Pump |
| App Filter - Programmable | No |
| App Filter - Corrosion | No |
| App Filter - ICR | Yes |
| App Filter - Voltage | 230V - 208V |
APPEARANCE
| Color Appearance | Gray |
Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 20.81 in. |
| Weight | 110 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.81 in. |
| Shipping Weight | 150 lbs. |
| Total of Shipping Weight | 150 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.09 ft |
| Dimensional Weight | 100.62 lbs. |
| Total of Cubes | 8.09 ft |
| Total of Dimensional Weight | 100.62 lbs. |
Certifications
California Prop 65
